Thermo Scientific Niton XL5 Handheld XRF Analyzer with General Metals Option

SKU: CART-0743
Model: Niton XL5
Product Condition: Certified Pre-owned
$24,999.95

Thermo Scientific Niton XL5 handheld XRF analyzer delivers fast elemental analysis with General Metals scope for alloy ID, PMI, coatings, soils, and consumer goods screening.

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Thermo Fisher Scientific X-Ray Fluorescence (XRF) Analyzers Material Analysis Nondestructive Testing (NDT)
Product Description

Niton XL5 XRF Analysis for Alloy ID and Screening

The Thermo Scientific Niton XL5 is a handheld XRF analyzer for fast elemental analysis where material mix-ups, unknown alloys, coating questions, or screening requirements can slow inspection work. X-ray fluorescence measurement provides on-the-spot chemistry and grade information for alloy identification, positive material identification, coatings analysis, soil screening, and consumer goods screening across field, plant, inspection, and quality-control workflows.

X-Ray Fluorescence Measurement with Handheld Analysis

  • The 5W x-ray tube excites the sample surface to generate a fluorescence response for elemental determination.
  • Dynamic current adjustment supports measurement sensitivity across varied sample materials.
  • Real-time results provide direct chemistry and grade feedback during handheld analysis.
  • Integrated micro and macro cameras support sample targeting and measurement-location documentation.
  • Built-in system check verifies analyzer readiness before measurement activity.

Elemental Analysis Range and System Capabilities

  • Analytical range covers Mg-U with ultra-low light element detection.
  • Ag anode x-ray tube is rated 6-50kV, 0-500uA, 5W max.
  • Proprietary large area drift detector supports portable XRF elemental analysis.
  • Standard 8mm collimation is specified, with optional 3mm small-spot collimation.
  • WiFi and USB data transfer support movement of readings into reporting and PC workflows.

Alloy, PMI, Coatings, and Screening Applications

  • Supports alloy identification and positive material identification for metals verification.
  • Supports coating and plating assessment, geochemical analysis, and polluted soil screening.
  • Supports hazardous substance screening workflows for consumer goods and RoHS-oriented review.

General Metals, Alloy Libraries, and Screening Configuration

  • General Metals configuration supports alloy grade identification and chemistry determination for metal analysis workflows.
  • XL5 Alloy Library resources include SAE, AISI, ASTM, AA, DIN, and GB standards.
  • XL5 LM Quick Sort Library supports light-metal alloy sorting reference workflows.
  • Consumer Goods, Detection, and RoHS threshold sets support screening-oriented comparison workflows.
Specifications
Specifications
MPN Niton XL5
Product Condition Certified Pre-owned
Shipping Length (in.) 26
Shipping Width (In.) 20
Shipping Height (In.) 12
Item Returns This item can be returned
Weight 2.8 lbs with battery (1.3 kg)
Dimensions 9.54 x 8.19 x 2.67 in (242.56 x 208.17 x 67.9 mm)
X-Ray Source X-Ray Tube: Ag anode (6-50kV, 0-500uA, 5W max)
Dynamically adjustable current for optimal sensitivity on every analysis
Detector Proprietary large area drift detector
Spot Size Standard: 8mm collimation
Optional: 3mm small-spot collimation
Analytical Range Mg-U (ultra low light element detection)
Calibration Modes General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Spectral Fingerprint, TestAllâ„¢
Libraries Default alloy libraries based on SAE, AISI, ASTM, AA,DIN, GB standards
Users may create, clone and edit libraries
System Check Built-in standardization via automatic system check
IP Rating IP54 (splash and dust proof)
Operating Environment Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C)
Humidity: 10% to 90% relative humidity non-condensing
Display Tilting, color, resistive touchscreen display
Power 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply
Macro Camera Integrated CCD macro camera for capturing overview images of parts and tagging measurement locations
Micro Camera Integrated CCD micro camera for locating and recording measurement positions
Global Positioning System Internal GPS and optional external GPS (via Bluetooth)
GPS data included with sample information
Bluetooth Supports print functionality, external GPS connectivity and barcode reader
Memory / Data Storage 512 MB internal system memory / 16 GB industrial grade storage
Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)
Data Entry Touchscreen keyboard
User customizable data entry
Optional wireless remote barcode reader
Data Transfer WiFi, USB
Operating System Linux
Support Software NitonConnect PC software
Security Password-protected user security
Languages English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian
Compliance Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010

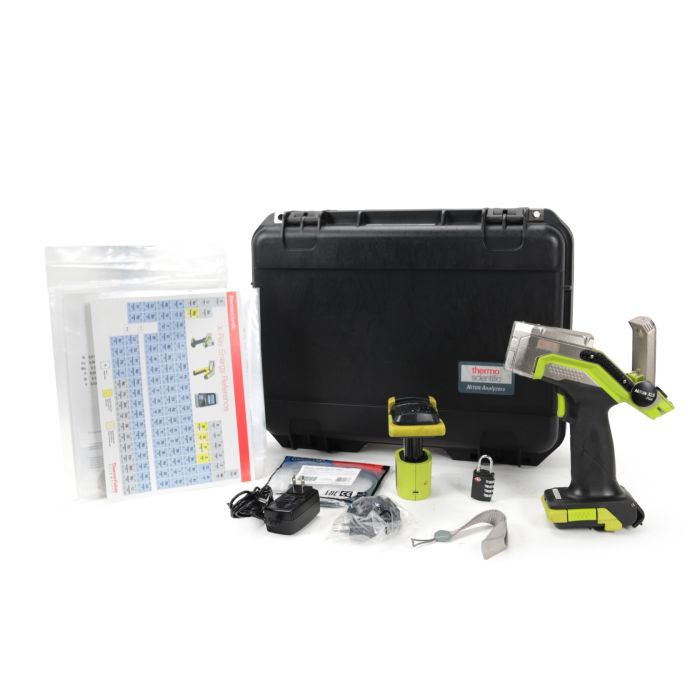

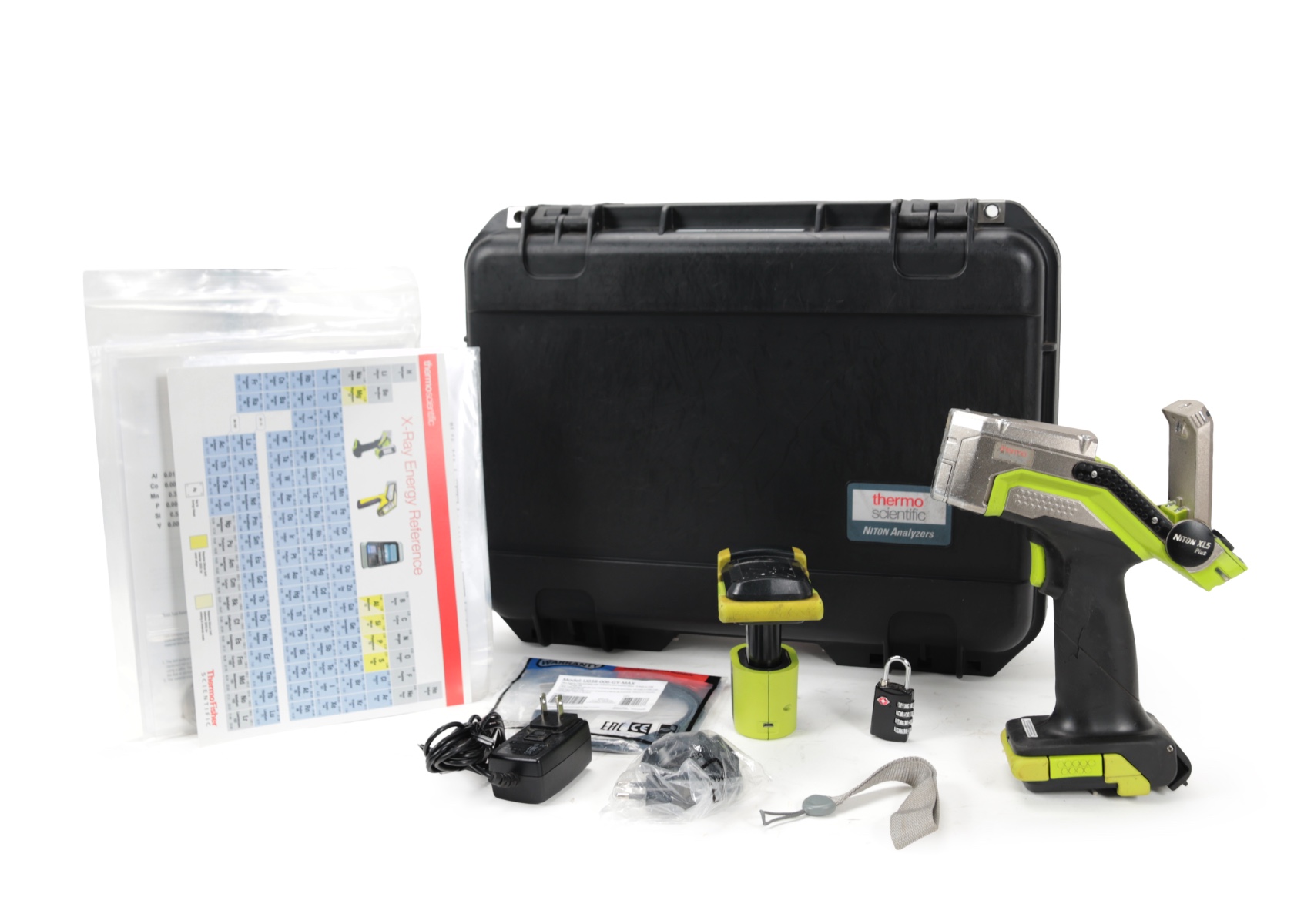

What's in the box?
  • 1 x Thermo Scientific Niton XL5 Handheld XRF Analyzer
  • 1 x Nova Battery Cradle, P/N 58008351
    • 2 x Nova Rechargeable Batteries
    • 1 x AC Adapter / Charger
  • 1 x USB-A to USB-C Cable, 6 ft
  • 1 x Stylus
  • 1 x Wrist Strap
  • 1 x Setup Guide, Version 1.1
  • 1 x X-Ray Energy Reference / Periodic Table
  • 1 x Rocky Mountain AA6061 Reference Standard with Card
  • 1 x ARMI 1-1/4 Cr / 1/2 Mo Reference Standard with Card
  • 1 x Hard Transport Case
