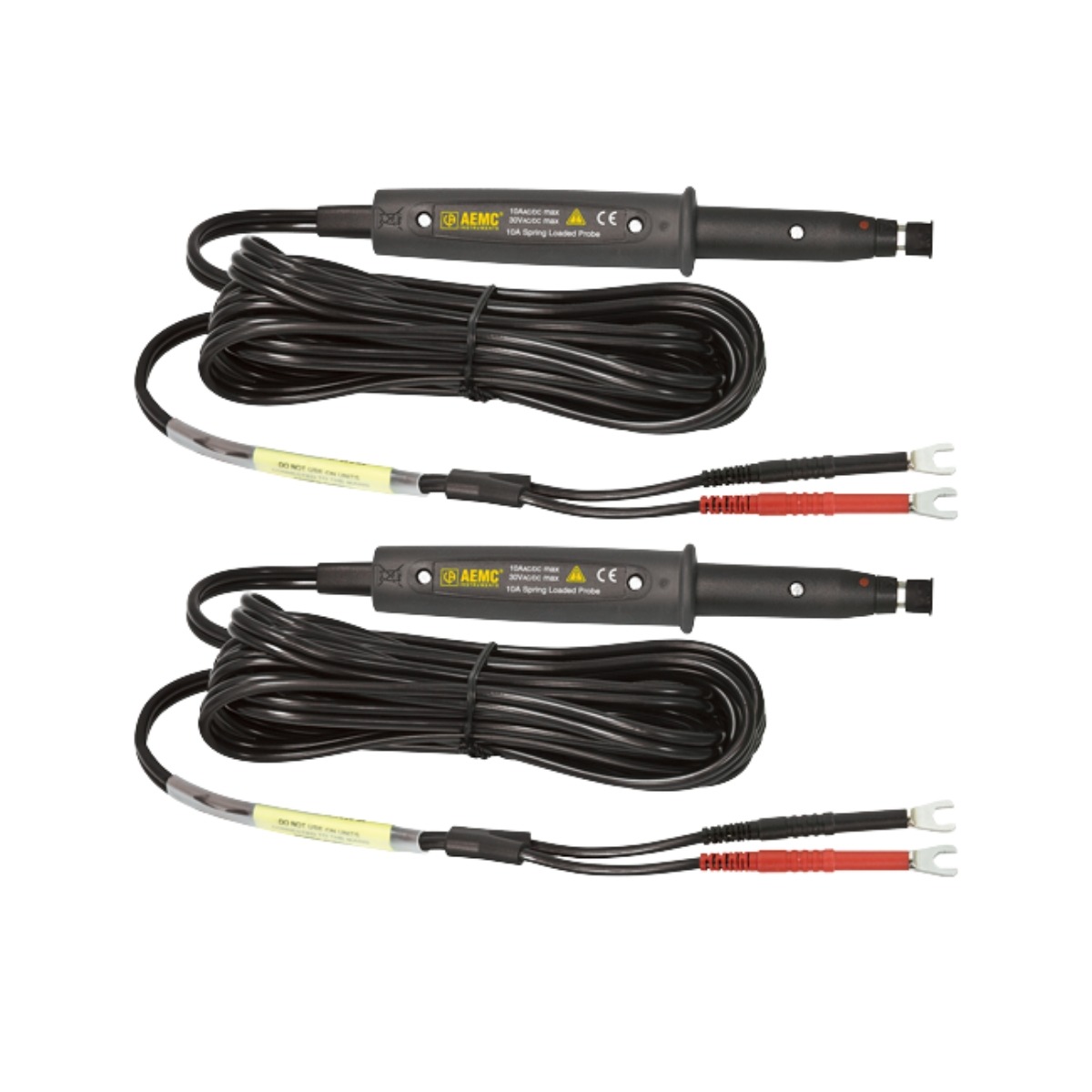

AEMC 2118.78 10A Spring-Loaded Kelvin Probes with 20 ft Leads

SKU: N104151
Model: 2118.78
Product Condition: New
$733.40

AEMC 2118.78 Kelvin probes bring crisp 10A low-resistance test contact with spring-loaded rotating tips, 4-wire measurement support, and 20 ft leads.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
AEMC Test Leads Electrical Testing Accessories
Product Description

Low-Resistance Test Contact for Micro-Ohmmeter Measurements

The AEMC 2118.78 is a 10A spring-loaded Kelvin probe set with 20 ft leads. Designed for use with compatible AEMC micro-ohmmeters or equivalent testers, it supports 4-wire low-resistance measurement through paired current and voltage contacts.

Spring-Loaded Kelvin Contact with Rotating Probe Action

- Retractable probe tips press into the measurement point to establish contact.
- Rotating tip action helps remove a thin layer of rust, paint, or dirt during contact.
- Voltage probes are identified by red spots to support correct terminal placement.
- Spade lugs connect to binding posts, and removable lugs support 4 mm safety terminal connections.

Electrical and Mechanical Measurement Scope

- Maximum current: 10 A.
- Maximum voltage: 30 V.
- Lead length: 20 ft / 6.30 m.
- Probe diameter: 0.12 in / 3 mm.
- Center-to-center probe spacing: 0.315 in / 8 mm.

Low-Resistance Electrical Testing Applications

- Low-resistance measurement with AEMC 6240, 6250, and 6255 micro-ohmmeters.
- 4-wire Kelvin resistance testing where lead resistance compensation is not required.
- Electrical contact measurement using compatible binding posts or safety terminals.

Specifications
Specifications
MPN 2118.78
Product Condition New
Shipping Length (in.) 16
Shipping Width (In.) 12
Shipping Height (In.) 8
Item Returns This item can be returned
BrandAEMC Instruments
MPN2118.78
Model2118.78
Probe TypeSpring-Loaded 10 A Kelvin Probe
Lead Length20 ft / 6.30 m
Maximum Current10 A
Maximum Voltage30 V
Measurement Method4-Wire Kelvin
Probe Dimensions8.15 x 1.34 x 1.18 in
Probe Diameter0.12 in / 3 mm
Probe Travel0.394 in / 10 mm
Probe Spacing0.315 in / 8 mm
TerminationsSpade lugs for 4 to 6 mm posts; 4 mm safety terminals
WeightSet of two approximately 2 x 28.22 oz
ResistanceApproximately 2 x 35 mΩ
Protection IndexIP40; IK04
Operating Range14 to 131 °F; 10 to 85% RH
Storage Range-40 to 158 °F; 10 to 90% RH
What's in the box?
  • 1 x Pair of AEMC 2118.78 10A Spring-Loaded Kelvin Probes with 20 ft Leads
