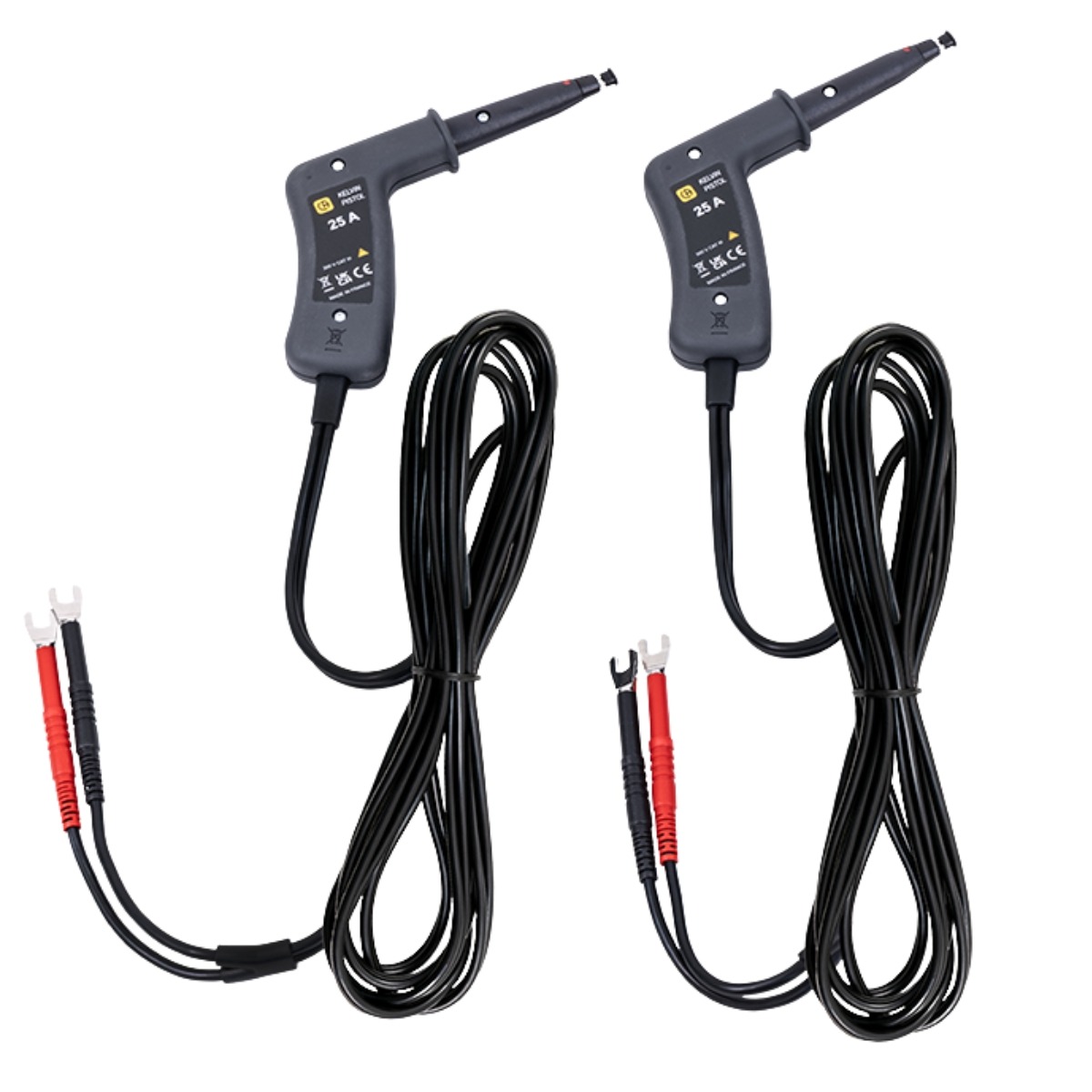

AEMC 2118.84 Spring-Loaded Kelvin Probe Set, 25A, 10 ft Leads

The AEMC 2118.84 is a spring-loaded Kelvin probe set designed for low-resistance measurements with compatible micro-ohmmeters. The probe set utilizes a 4-wire Kelvin measurement method to support accurate resistance testing while eliminating the need for lead resistance compensation. Pistol-grip spring-loaded contacts help maintain reliable electrical contact during measurement procedures.

• Uses separate current and potential connections for 4-wire resistance measurement
• Spring-loaded probe tips maintain contact on uneven measurement surfaces
• Kelvin measurement configuration minimizes measurement error from lead resistance
• Spaded lug connections interface with compatible micro-ohmmeters
• Pistol-grip design supports controlled probe placement during testing

• Rated for test currents up to 25A
• Maximum voltage rating of 300V CAT III
• Lead length of 10.33 ft (3.15 m)
• Compatible with 4 mm safety terminals and 4 to 6 mm binding posts
• Supplied as a matched set of two Kelvin probes

• Low-resistance testing using compatible micro-ohmmeters
• Electrical connection and continuity verification workflows
• Maintenance and inspection of conductive components and connections
