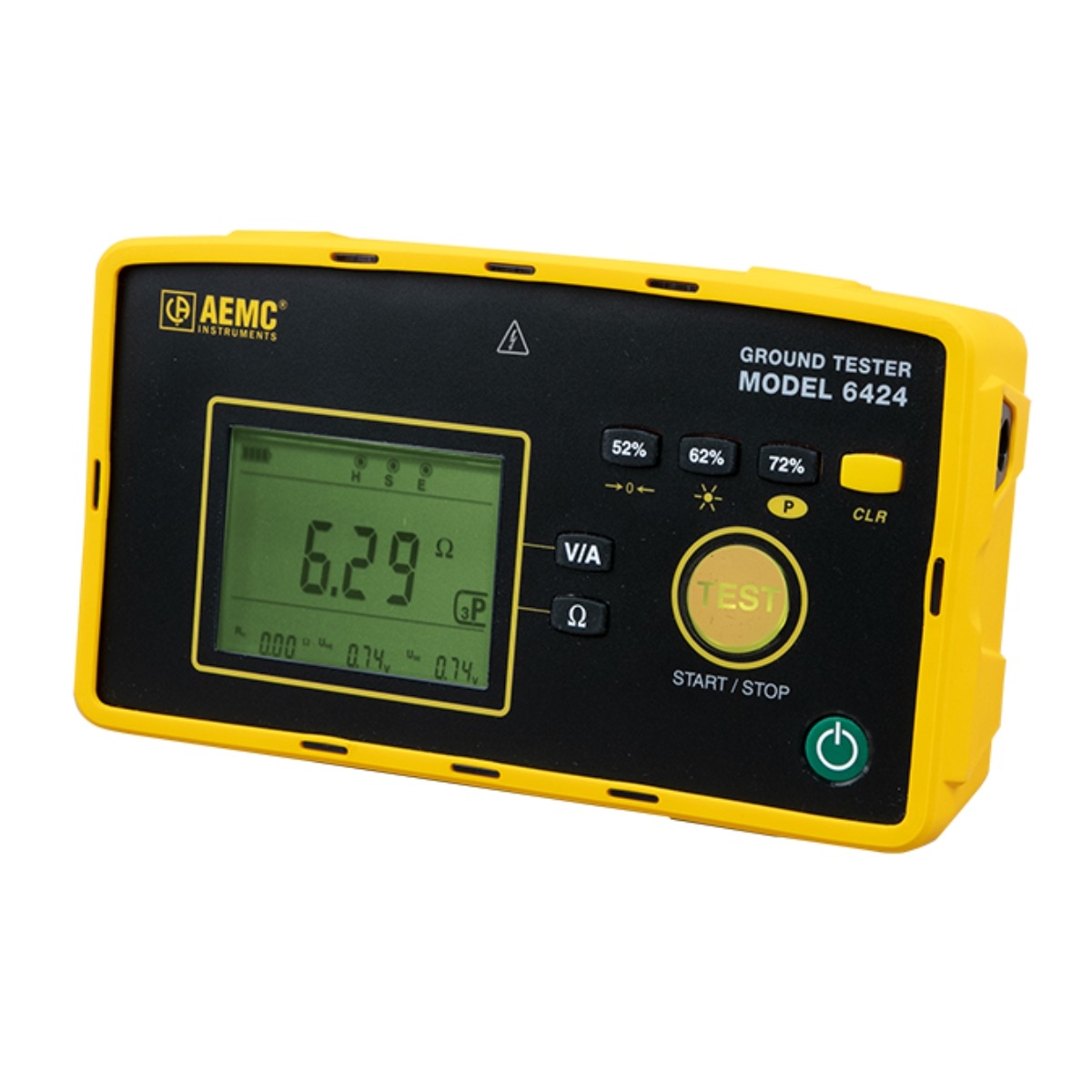

AEMC 2135.58 Ground Resistance Tester Model 6424 Kit-150ft (Digital, 3-Point) (Cat #2135.57 & 2135.35)

SKU: N104197
Model: 2135.58
Product Condition: New
$1,500.05

AEMC 2135.58 Model 6424 Ground Resistance Tester delivers digital 3-point and 2-point ground resistance testing with AC/DC voltage measurement and auto-ranging operation.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
AEMC Ground Resistance Testers Electrical Testing Equipment
Product Description

Ground Resistance Testing for Electrical Grounding Systems with AEMC 2135.58

The AEMC 2135.58 Model 6424 is a digital ground resistance tester for electrical grounding measurements. It performs 3-pole ground resistance, 2-pole resistance, AC/DC voltage, and AC current measurement with the MN72 current probe.

3-Pole and 2-Pole Resistance Measurement Method

- 3P mode measures ground resistance through H, S, and E terminal connections for direct earth resistance readings.
- 2P mode measures resistance across a simplified two-terminal connection for ground continuity-style checks.
- Automatic range selection seeks the optimum measurement range before presenting the reading.
- One-shot and continuous measurement modes support single readings or repeated measurement activity.

Electrical Measurement Functions and Ranges

- Voltage measurement range: 0.1 to 600 VAC/DC with 0.1 V resolution.
- AC current measurement range: 0.5 to 60.00 AAC with MN72 current probe.
- Ground resistance measurement range: 0.05 Ω to 50.00 kΩ in 2P mode.
- Ground resistance measurement range: 0.50 Ω to 50.000 kΩ in 3P mode.
- Measurement frequency: 128 Hz or 256 Hz, automatically selected.

Grounding and Electrical Maintenance Applications

- Ground rod resistance testing
- Earth ground verification
- Ground continuity and grounding system checks

Specifications
Specifications
MPN 2135.58
Product Condition New
Shipping Length (in.) 24
Shipping Width (In.) 18
Shipping Height (In.) 12
Item Returns This item can be returned
BrandAEMC
Brand Model2135.58
Manufacturer Model6424
Instrument TypeDigital Ground Resistance Tester
Voltage Range0.1 to 600 VAC/DC
Voltage Resolution0.1 V
Voltage Accuracy±(1% R + 1 ct)
Current Range0.5 to 60.00 AAC with MN72 probe
2P Ground Resistance Range0.05 Ω to 50.00 kΩ
3P Ground Resistance Range0.50 Ω to 50.000 kΩ
Measurement Frequency128 Hz or 256 Hz, automatically selected
No-Load Voltage±10 V peak
Maximum Test Current20 mA
Measurement ModesV, I, 2P Ω, 3P Ω
Measurement OperationOne shot or continuous
Data StorageStores 52%, 62%, and 72% 3P resistance measurements
CalculationAverage and percent deviation of three saved readings
DisplayBacklit LCD
Power Supply6 x 1.2 V AA NiMH rechargeable batteries
Charging TimeApprox. 6 hours
Battery LifeMore than 1,500 3P earth measurements at 100 Ω
Dimensions8.78 x 4.96 x 2.75 in
Safety RatingIEC 61010-2-030 / 600 V CAT IV
EMC StandardIEC 61326-1
What's in the box?
  • 1 x AEMC Model 6424 Ground Resistance Tester
  • Ground Resistance Tester Model 6424
  • Carrying Bag
  • (2) 150ft Color-Coded Leads on Spools (Red/Blue)
  • (1) 30ft Lead (Green)
  • (2) 5ft Color-Coded Leads (Red/Blue)
  • (2) 14.5" T-Shaped Auxiliary Ground Electrodes
  • (1) Set of 5
  • Spaded Lugs and (1) 100ft AEMC® Tape Measure
