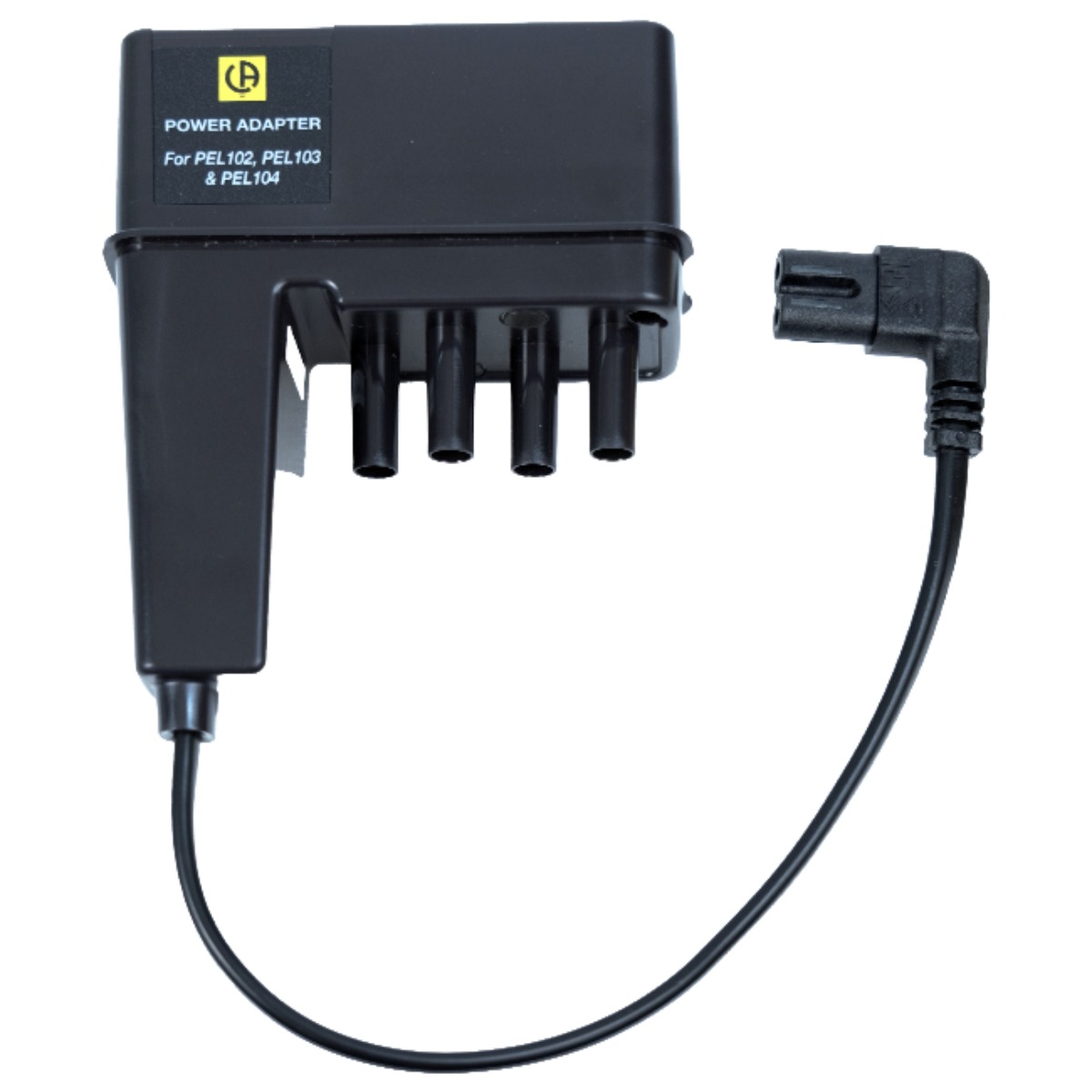

AEMC 2137.90 Adapter 600V CAT III Power to Phase Adapter for use with Model PEL 102, PEL 103, PEL 112, & PEL 113

SKU: N104221
Model: 2137.90
Product Condition: New
$360.05

AEMC 2137.90 Power To Phase Adapter supplies PEL power and energy loggers from the phase power under test for extended 50/60 Hz monitoring on 600 V CAT III installations.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
AEMC Adapters
Product Description

Phase-Supplied Power for PEL Energy Logging

The AEMC 2137.90 Power To Phase Adapter is a 600 V CAT III adapter for compatible PEL power and energy loggers. It supplies operating power from the measured phase connection while maintaining the PEL internal battery charge for short interruptions. Operation supports 50 Hz and 60 Hz networks.

Voltage Input Connection for Phase-Supplied Operation

- Connects to the PEL voltage inputs to derive supply power from the measured installation.
- Uses the C7 plug to connect adapter output to the PEL power input.
- Requires L1 and N or L1 and L2 voltage inputs for adapter operation.
- Allows voltage inputs to connect through the adapter while current inputs connect directly to the PEL.

Electrical Range and Safety Capabilities

- Phase-to-neutral voltage range: 100 to 346 VAC.
- Phase-to-phase voltage range: 100 to 600 VAC.
- Maximum permanent input voltage: 660 VAC.
- Maximum output voltage: 360 V peak.
- Rated for indoor 600 V CAT III, Pollution 2 use.

PEL Extended Power Monitoring Use

- Supplies compatible PEL loggers during extended operating periods.
- Maintains the PEL internal battery charge during powered operation.
- Supports compatible PEL 102, PEL 103, PEL 112, and PEL 113 models.

Specifications
Specifications
MPN 2137.90
Product Condition New
Shipping Length (in.) 8
Shipping Width (In.) 6
Shipping Height (In.) 4
Item Returns This item can be returned
BrandAEMC
Catalog Number2137.90
ModelPower To Phase Adapter
Compatible ModelsPEL 102, PEL 103, PEL 112, PEL 113
Safety Rating600 V CAT III, Pollution 2
Phase-to-Neutral Voltage Range100 to 346 VAC
Phase-to-Phase Voltage Range100 to 600 VAC
Maximum Input Voltage660 VAC permanent
Maximum Output Voltage360 V peak
Frequency50 and 60 Hz
Consumption100 VA max at 50 and 60 Hz
Operating Environment32 to 122 °F; 10 to 85% RH
Storage Environment-4 to 158 °F; 0 to 95% RH
Altitude< 6562 ft operating; < 32,808 ft storage
Dimensions5 x 3.8 x 1.5 in
Weight7 oz approximately
Cord Length11 in approximately
Ingress ProtectionIP40 except terminals; terminals IP20
Impact RatingIK04
Drop Test3.3 ft per IEC/EN 61010-2-030 or BS EN 61010-2-030
EMCIEC 61326-1 or BS IEC/EN 61326-1
Safety ComplianceIEC/EN 61010-2-30 or BS EN 61010-2-030
What's in the box?
  • 1 x AEMC 2137.90 Power To Phase Adapter
