AEMC 2150.20 Portable Oscilloscope with TRMS Multimeter and Harmonic Analyzer

SKU: N104236
Model: 2150.20
Product Condition: New
$1,895.25

The AEMC 2150.20 is a portable, battery-powered instrument that combines a 20 MHz two-channel isolated oscilloscope, dual 8000-count TRMS multimeter, power measurements, harmonic analysis (up to the 31st order), data storage, and USB connectivity for electrical diagnostics.

Read more
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
AEMC Oscilloscopes Electrical Testing Equipment
Product Description

Oscilloscope, Power Measurement, and Harmonic Analysis for Electrical Diagnostics

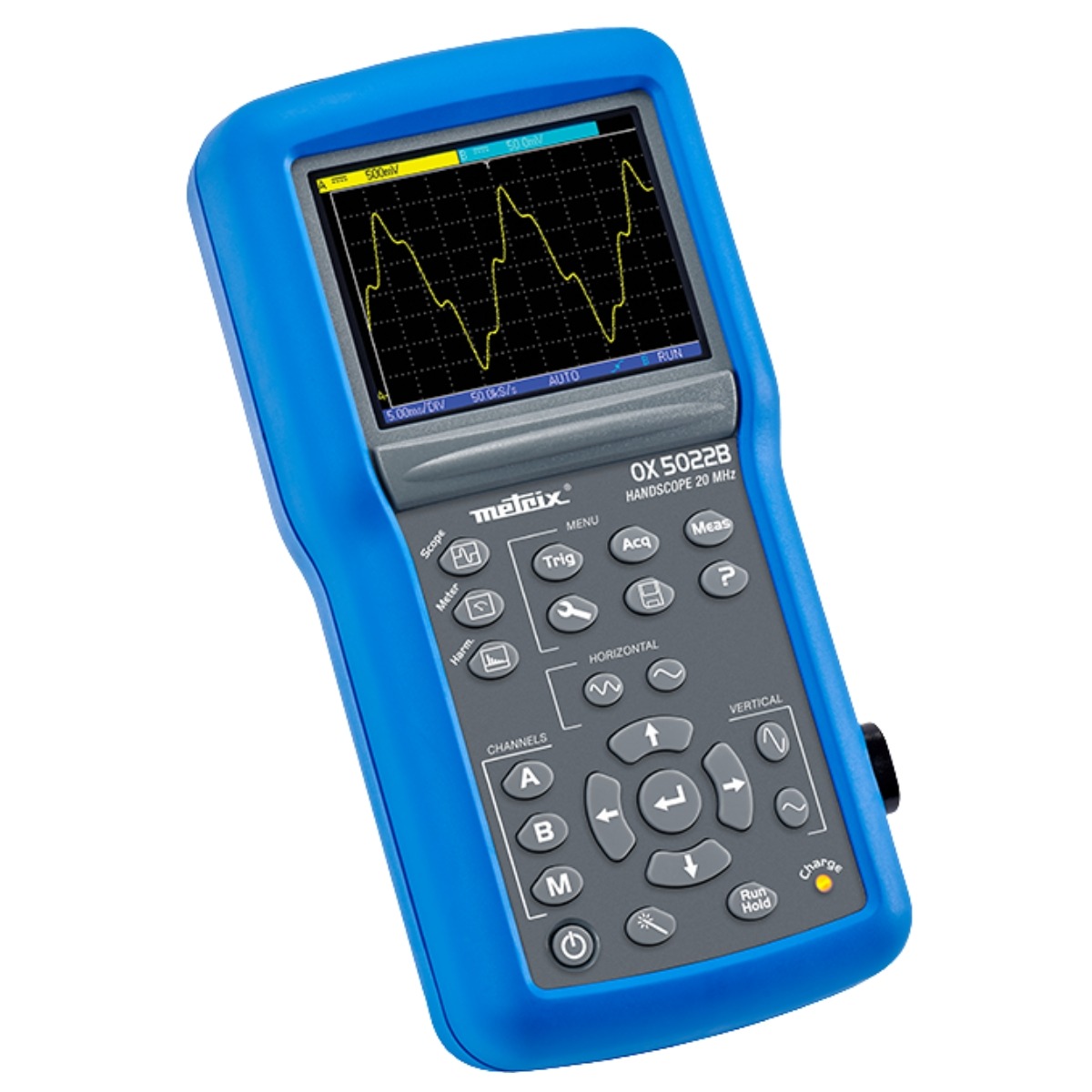

The AEMC 2150.20 is a handheld 20 MHz portable oscilloscope featuring two fully isolated input channels. It combines oscilloscope operation, dual-channel TRMS multimeter functionality, power measurement, and harmonic analysis within a single platform. Portable battery-powered operation and onboard storage support field measurement and troubleshooting activities.

Signal Acquisition with Isolated Channel Measurement

• Captures electrical waveforms through two fully isolated 600 V CAT III input channels
• Samples signals at up to 2 GS/s in equivalent time sampling mode and 50 MS/s in one-shot mode
• Uses configurable triggering including edge and pulse-width triggering for waveform acquisition
• Provides roll mode operation for slow-changing signals from 100 ms/div to 200 s/div
• Supports waveform analysis through cursors, references, memory traces, and mathematical calculations

Oscilloscope, Multimeter, and Harmonic Analysis Capabilities

• 20 MHz bandwidth with vertical sensitivity from 5 mV/div to 200 V/div
• Time base range from 25 ns/div to 200 s/div with horizontal zoom factors of x1, x2, and x5
• Dual 8000-count TRMS multimeter with voltage, resistance, capacitance, frequency, temperature, diode, and rotational speed measurements
• Single-phase and balanced three-phase active power measurements with simultaneous current display
• Harmonic analysis on two channels up to the 31st order with fundamentals from 40 Hz to 450 Hz

Electrical Maintenance and Power Quality Evaluation

• Electrical troubleshooting and waveform analysis
• Power measurement and harmonic evaluation
• Industrial, commercial, and facility electrical diagnostics

Specifications
Specifications
MPN 2150.20
Product Condition New
Shipping Length (in.) 15
Shipping Width (In.) 12
Shipping Height (In.) 8
Item Returns This item can be returned
ParameterSpecification
Bandwidth20 MHz
Channels2 Fully Isolated Channels
Maximum Input Voltage600 V CAT III
Input Impedance1 MΩ ±0.5%, approximately 17 pF
Display3.5 in Color TFT LCD, 320 x 240, LED Backlight
Display Mode2500 Real Acquisition Points
Vertical Sensitivity5 mV/div to 200 V/div
Sweep Speed25 ns/div to 200 s/div
Horizontal Zoomx1, x2, x5
Trigger ModesAutomatic, Triggered, One-Shot, Triggered Roll
Trigger TypesEdge, Pulse Width (20 ns to 20 s)
Maximum Sampling Rate2 GS/s ETS, 50 MS/s One-Shot per Channel
Vertical Resolution9 Bits
Memory Depth2500 Points per Channel
User Storage2 MB
Display ModesEnvelope, Averaging (2 to 64), XY
Math FunctionsInvert, Add, Subtract, Multiply, Divide
Automatic Measurements18 Time, Level, and Phase Measurements
Multimeter DisplayDual 8000 Count TRMS
Voltage Measurement600 mV to 600 Vrms, 800 mV to 800 Vdc
Resistance Range80 Ω to 32 MΩ
Capacitance Range5 nF to 5 mF
Power MeasurementsSingle-Phase and Balanced Three-Phase Active Power
Harmonic Analysis31 Orders, Fundamental 40 Hz to 450 Hz
PC InterfaceIsolated Optical USB
SoftwareSX-METRO Included
Power Supply6 AA NiMH or 6 LR6 Batteries
Battery LifeUp to 8 Hours 30 Minutes
Charging Time2 Hours 30 Minutes
Dimensions8.43 x 4.33 x 2.24 in (214 x 110 x 57 mm)
Weight2.65 lb (1.2 kg)
Operating Temperature32 °F to 104 °F (0 °C to 40 °C)
Storage Temperature-4 °F to 140 °F (-20 °C to 60 °C)
IP RatingIP54
Safety RatingIEC/EN 61010-1, 1000 V CAT II, 600 V CAT III
What's in the box?
  • 1 x AEMC 2150.20 Handscope Portable Oscilloscope
  • (2) Banana-F BNC-M Adapter (2118.46)
  • 10:1 600 V BNC-M Probe (5000.50)
  • (2) Red/Black Test Lead and Clip Set
  • (2) Red Test Probe (5000.98)
  • (2) Black Test Probe (5000.97)
  • Carrying Pouch
  • USB Charging Cable (5100.17)
  • USB Cable and Driver (2135.41)
  • USB Wall Plug
  • Test Report
  • 1.2V NiMH Rechargeable Battery
  • USB Drive (Manual and Software)
  • NIST Calibration ($108.00 each)
