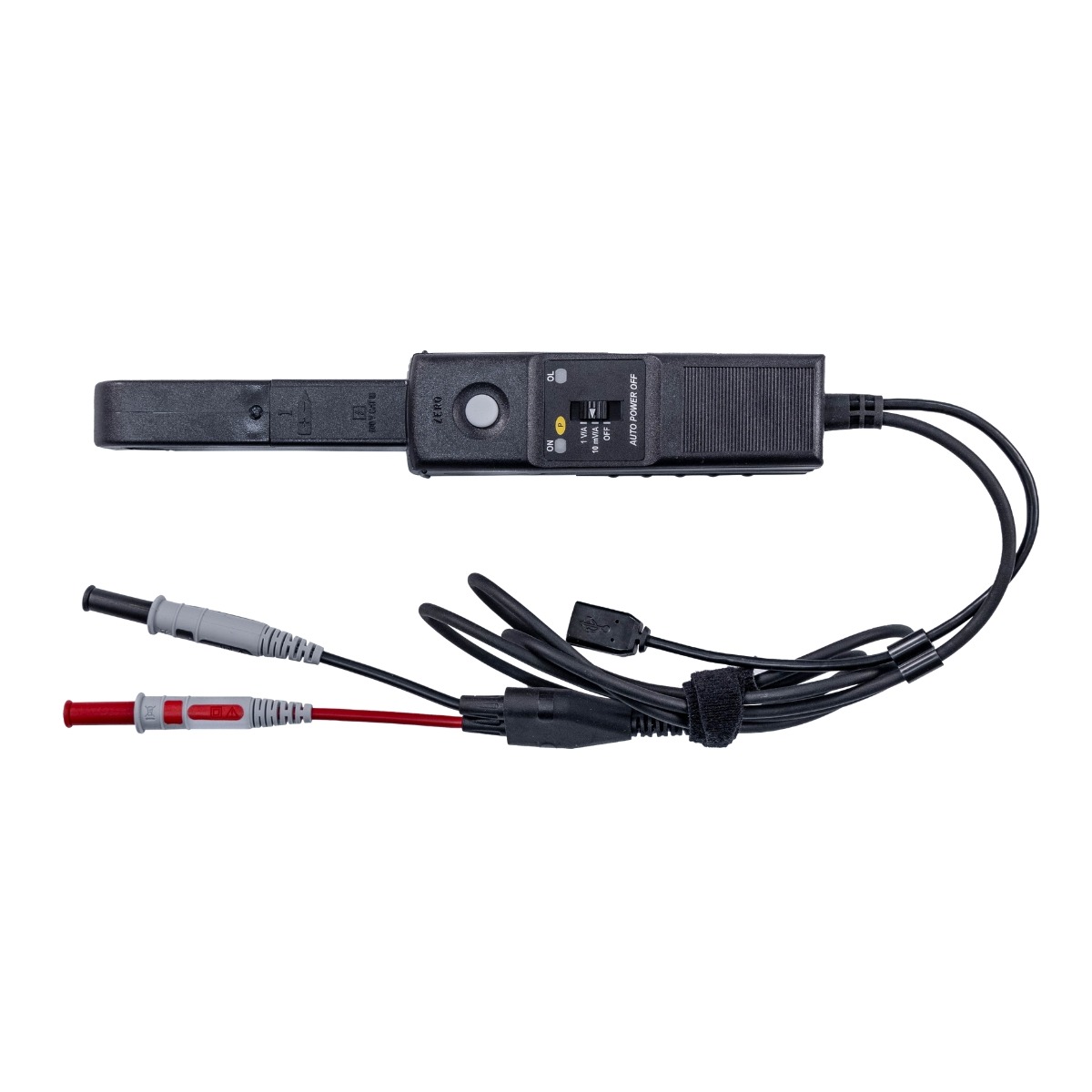

AEMC 2153.08 AC/DC Current Probe with Dual Range Output

SKU: N104256
Model: 2153.08
Product Condition: New
$421.80

AEMC 2153.08 AC/DC Current Probe delivers non-intrusive current measurement from milliamps to 80 A DC with dual-range sensitivity, Hall-effect sensing technology, and compatibility with multimeters, oscilloscopes, and voltage-measuring instruments.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
AEMC Current Probes Current Probes & Sensors Electrical Testing Equipment
Product Description

Clamp-On AC/DC Current Measurement for Electrical Testing

The AEMC 2153.08 is an AC/DC current probe designed for non-intrusive current measurement in electrical systems. Using Hall-effect sensing technology, it measures both alternating and direct current without opening the circuit. Its compact jaw design supports testing in crowded panels, industrial equipment, and automotive electrical systems.

Hall-Effect Current Detection Without Circuit Interruption

• Clamps around a conductor to measure magnetic fields generated by current flow
• Hall-effect sensing enables measurement of both AC and DC current signals
• Converts measured current into a proportional voltage output for connected instruments
• Narrow jaw profile allows access to conductors in confined wiring spaces
• Push-button zero adjustment supports accurate low-current DC measurements

Current Measurement Ranges and Signal Output

• Dual ranges support measurements from 5 mA to 2 ADC and from 50 mA to 80 ADC
• AC measurement capability extends to 1.5 AAC and 60 AAC nominal ranges
• Provides 1 mV/mA output in the low-current range and 10 mV/A output in the high-current range
• Bandwidth extends to 20 kHz depending on measured current level
• Rated for installations up to 600 V CAT III and 300 V CAT IV

Electrical Maintenance and Diagnostic Applications

• Electrical troubleshooting and current verification
• Industrial equipment maintenance and commissioning
• Automotive electrical testing and diagnostics

Specifications
Specifications
MPN 2153.08
Product Condition New
Shipping Length (in.) 12
Shipping Width (In.) 8
Shipping Height (In.) 4
Item Returns This item can be returned
SpecificationValue
BrandAEMC
MPN2153.08
Model2153.08
Probe TypeAC/DC Hall-Effect Current Probe
Nominal Range 11.5 AAC / 2 ADC
Nominal Range 260 AAC / 80 ADC
Measurement Range 15 mA to 1.5 AAC / 2 ADC
Measurement Range 250 mA to 60 AAC / 80 ADC
Bandwidth20 kHz (-3 dB)
Output Signal (Low Range)1 mV/mA (1 V/A)
Output Signal (High Range)10 mV/A
Load Impedance≥ 1 MΩ and ≤ 100 pF
Maximum Conductor Size0.46 in (11.8 mm)
Output Termination4.9 ft (1.5 m) cable with (2) male banana plugs
Power OptionsInternal Battery or 5 VDC Micro-USB
Battery Life80 hours typical
Dimensions9.09 x 1.42 x 2.64 in (231 x 36 x 67 mm)
Weight11.6 oz (330 g) with battery
Operating Temperature14 to 122°F (-10 to 50°C)
Storage Temperature-22 to 176°F (-30 to 80°C)
Operating Humidity0 to 85% RH
Safety RatingIEC 61010-1, IEC 61010-2-032
Measurement Category600 V CAT III, 300 V CAT IV
Ingress ProtectionIP20
UL ApprovedYes
What's in the box?
  • 1 x AEMC 2153.08 AC/DC Current Probe
  • 1 x Attached Output Cable with Dual Male Banana Plugs
  • 1 x Attached Micro-USB Power Lead
