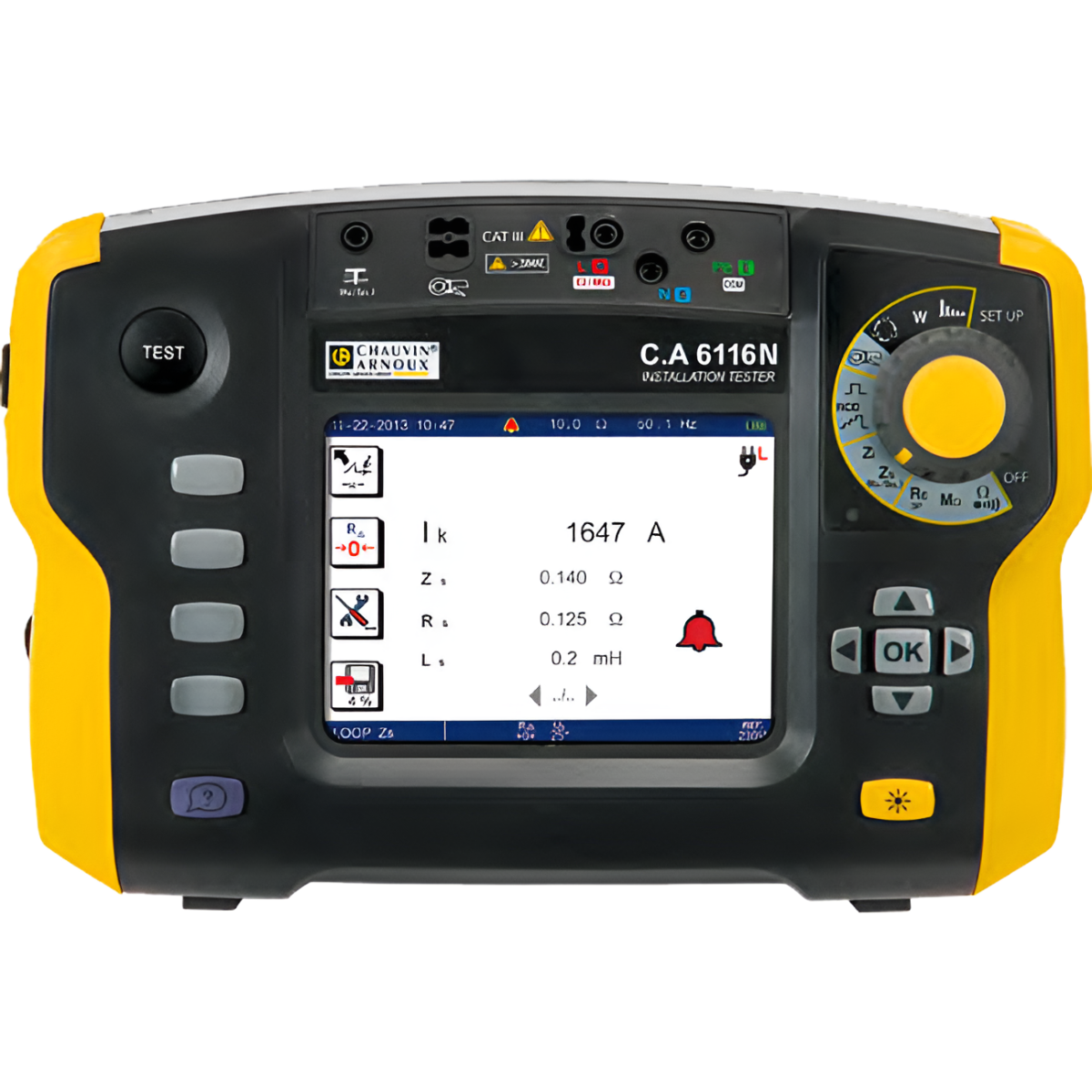

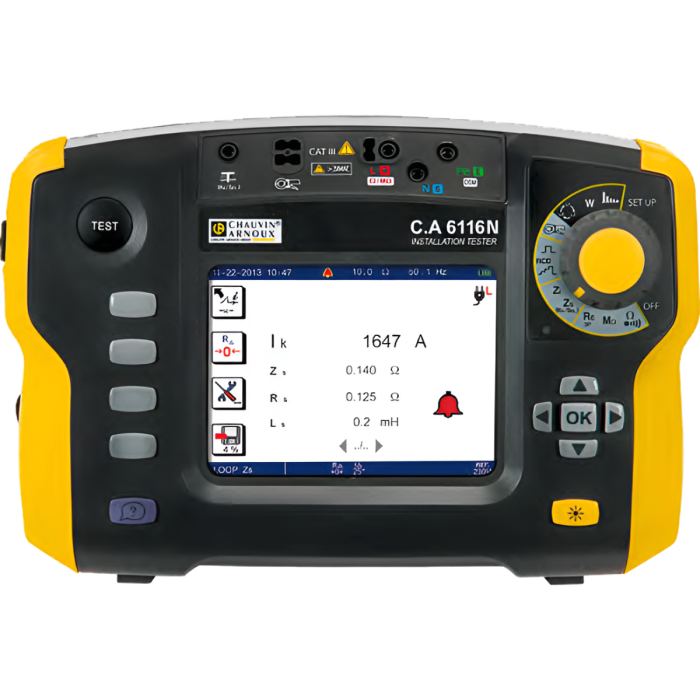

AEMC C.A 6116N Multi-Function Electrical Installation Tester

The AEMC C.A 6116N Multi-Function Installation Tester is the go-to solution for professionals who demand accuracy, compliance, and versatility in one rugged unit. Designed for industrial, residential, and commercial sectors, this tester ensures full adherence to international standards while offering precise results across multiple measurement functions. With integrated DataView® software, it simplifies data management and reporting for every job.

Key Features:

All-in-One Testing Capabilities:
Performs continuity, resistance, insulation, loop impedance, ground, RCD, voltage, frequency, current, power, and harmonics testing.

Standard Compliant Performance:
Complies with IEC 60364-6, NF C 15-100, VDE 100, and more for global installation safety verification.

Data Logging & Analysis:
Stores up to 1,000 test results and transfers data via USB to the included DataView® software for detailed review.

High-Resolution LCD Display:
Features a 5.7" backlit color screen for clear, real-time readings and waveform visualization.

Durable & Portable:
Built with an IP53 / IK04 enclosure, rechargeable Li-ion battery offering up to 30 hours of runtime, and compact form factor.

Benefits:

Efficient Compliance Testing:
Enables fast, reliable verification across all neutral systems (TT, TN, IT).

Enhanced Accuracy:
Delivers precise measurements for complex installations, including selective ground and fault current analysis.

Simplified Workflow:
Graphical interface and software integration streamline test documentation and analysis.

Multi-Sector Utility:
Perfect for electrical contractors, facility maintenance teams, and industrial technicians.

Upgrade your test equipment with the AEMC C.A 6116N—designed for comprehensive, professional-grade electrical installation verification.
