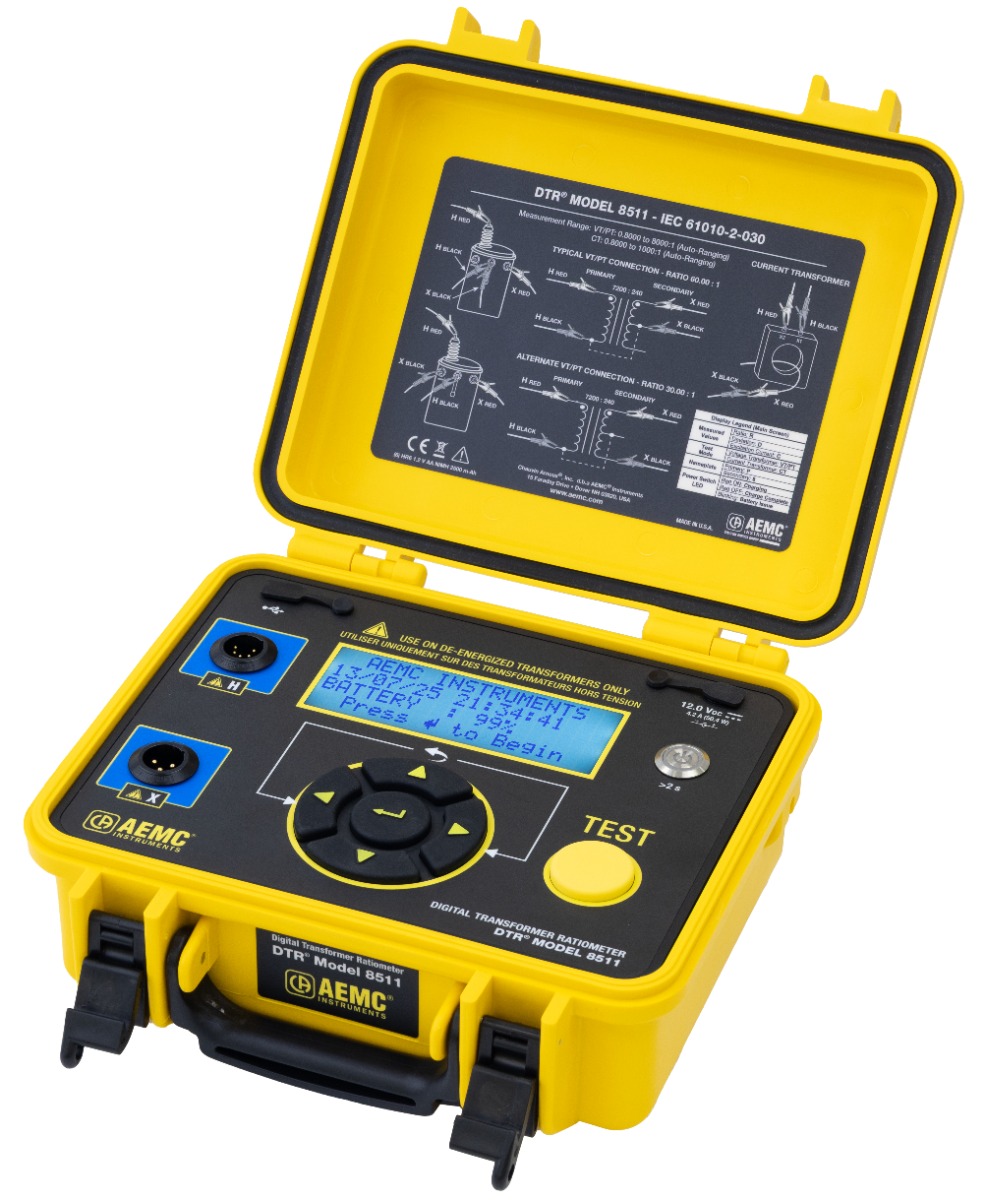

AEMC DTR 8511 Digital Transformer Ratiometer

SKU: N102126
Model: 8511
Product Condition: New
$3,614.95

The AEMC DTR® Model 8511 Digital Transformer Ratiometer provides fast, automatic turns-ratio testing for power, VT/PT, and CT transformers. Features high excitation current, wide ratio range, DataView® software, and a rugged IP53 field design.

Read more
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
AEMC Electrical Testing Equipment
Product Description

The AEMC DTR® Model 8511 Digital Transformer Ratiometer is a fully automatic, field-ready instrument designed for precise turns-ratio testing of power transformers, voltage/potential transformers (VT/PT), and current transformers (CT). It modernizes the trusted DTR® 8510 with higher test power, improved diagnostics, and enhanced usability.

Transformer Turns Ratiometer Testing Features

  • Wide ratio measurement range: Up to 8000:1 in VT/PT mode, up to 1000:1 in CT mode
  • High excitation current up to 2 A with optimized 64 Hz test frequency
  • Fully automatic operation—no calibration, balancing, or range selection required
  • Displays turns ratio, excitation current, polarity, and % deviation from nameplate
  • Built-in continuity testing to detect open windings
  • Automatic checks for lead reversal and wiring errors
  • Stores up to 9,801 test results internally

Transformer Test Data Management & PC Connectivity

  • Includes DataView® software for configuration, data retrieval, analysis, and report generation
  • Isolated USB connectivity for safe PC communication
  • Real-time comparison against stored nameplate values for pass/fail confirmation

Transformer Acceptance, Commissioning & Maintenance Applications

  • Transformer acceptance and commissioning tests
  • Routine maintenance of power, pad-mount, and pole-mount transformers
  • CT and VT/PT ratio verification
  • Switchgear and control power transformer testing
  • Quality control in transformer manufacturing and rewinding
Specifications
Specifications
MPN 2136.55
Product Condition New
Shipping Length (in.) 24
Shipping Width (In.) 18
Shipping Height (In.) 12
Item Returns This item can be returned
Brand AEMC
Catalog No. 2136.55
Model 8511
VT / PT Ratio Range 0.8000:1 to 8000.0:1 (Auto-Ranging)
VT / PT Accuracy 0.8000–9.9999: ±0.2%
10.000–999.99: ±0.1%
1000.0–4999.9: ±0.2%
5000.0–8000.0: ±0.25%
CT Ratio Range 0.8000:1 to 1000.0:1 (Auto-Ranging)
CT Accuracy ±0.5% of Reading
Excitation Current Up to 2 A
Output Voltage (VT / PT) 30 V @ 64 Hz
Output Voltage (CT) 5 V @ 64 Hz
Display 20-character x 4-line LCD
Data Storage 9,801 Measurements
Communication Interface USB Type-A to Type-C (USB 2.1)
Power Supply Rechargeable AA NiMH batteries, USB-C, or 12 Vdc external supply
Battery Life Approximately 500 VT / PT tests
Battery Charge Time Approximately 10 hours
Safety Rating IEC 61010-2-030, Pollution Degree 2
IP Rating IP53 (Cover Closed)
Weight 7.1 lb (3.2 kg)
Country of Origin United States
What's in the box?
  • 1 x Extra-large carrying bag
  • 2 x 15 ft test leads (primary and secondary)
  • 4 x Alligator clips (red/black)
  • 1 x 6 ft USB Type-C to Type-C cable
  • 1 x USB Type-C wall power adapter
  • 1 x 10 ft USB Type-A to Type-C cable
  • 1 x AC power adapter with cord
  • 6 x Internal rechargeable AA NiMH batteries
  • 1 x USB drive with DataView® software
  • 1 x User manual
