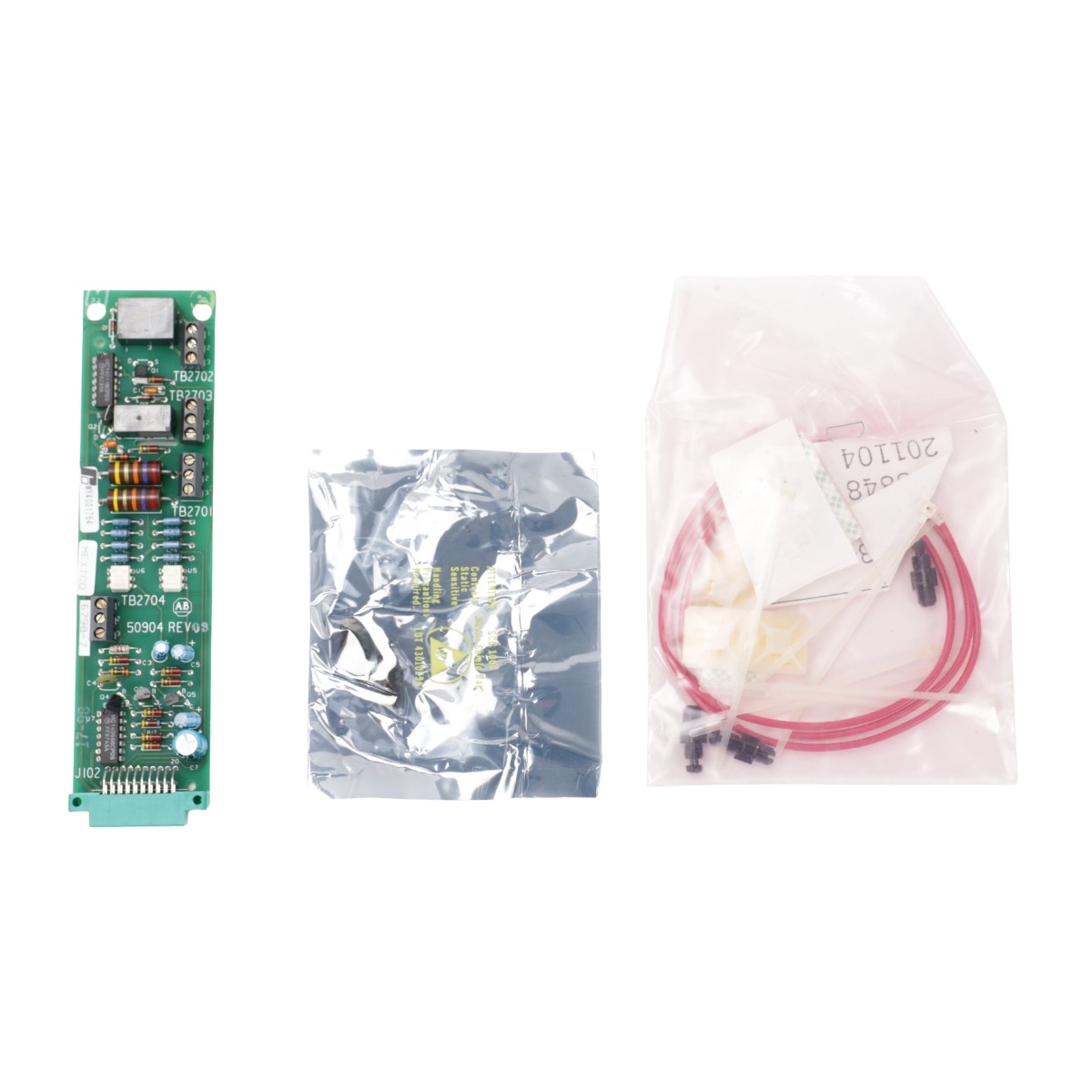

Allen-Bradley 1334-MOD-W3 Run and Fault Trip Relay Contact Modification Kit for 1334/1335 Drives

SKU: NO101102
Model: 1334-MOD-W3
Product Condition: New - Open Box
$99.00

Allen-Bradley 1334-MOD-W3 run/fault contact mod kit adds isolated relay outputs for remote drive status monitoring on Bulletin 1334 and 1335 AC drives, supporting external control and annunciation systems.

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Allen Bradley A/C Drives Drives Automation
Product Description

Allen-Bradley 1334-MOD-W3 Run/Fault Relay Interface for Bulletin 1334/1335 Drives

The Allen-Bradley 1334-MOD-W3 modification kit installs directly into compatible Bulletin 1334 and 1335 AC drives to provide dedicated hardware relay outputs for run and fault trip annunciation. This plug-in card enables reliable external monitoring of drive operating status through isolated contacts.

Integrated Run and Fault Relay Outputs

  • One Form C relay contact dedicated to drive fault trip indication
  • One normally open relay contact for drive run status indication
  • Relay contacts electrically isolated from internal drive power circuits
  • Hardware-based status signaling independent of software interfaces

Drive-Level Status Monitoring Architecture

The fault relay remains energized during normal operation and de-energizes upon a drive fault condition, changing contact state for external annunciation. The run contact closes when the drive receives a run command, providing clear operational feedback.

Industrial Application Scenarios

  • Remote fault annunciation to PLCs or alarm panels
  • Drive run status feedback in industrial control systems
  • Integration with legacy monitoring and relay-based control circuits
Specifications
Specifications
MPN 1334-MOD-W3
Product Condition New - Open Box
Shipping Length (in.) 10
Shipping Width (In.) 10
Shipping Height (In.) 10
Item Returns This item can be returned
Brand Allen-Bradley
Model Number 1334-MOD-W3
Product Type Run/Fault Relay Contact Modification Kit
Compatible Drive Series Allen-Bradley Bulletin 1334 and 1335 AC Drives
Relay Outputs 1 Form C Fault Trip Relay, 1 Normally Open Run Relay
Isolation Isolated from internal drive high-voltage potentials
AC Contact Rating 0.33 A continuous at 120/250 VAC
AC Inrush Current 2.0 A
DC Contact Rating 5.0 A maximum at 30 VDC
Recommended Wiring 22 AWG minimum twisted-pair cable
Maximum Wiring Distance 1,000 feet
Weight 0.50 lbs
What's in the box?
  • 1 x Allen-Bradley 1334-MOD-W3 Run/Fault Relay Contact Modification Kit
