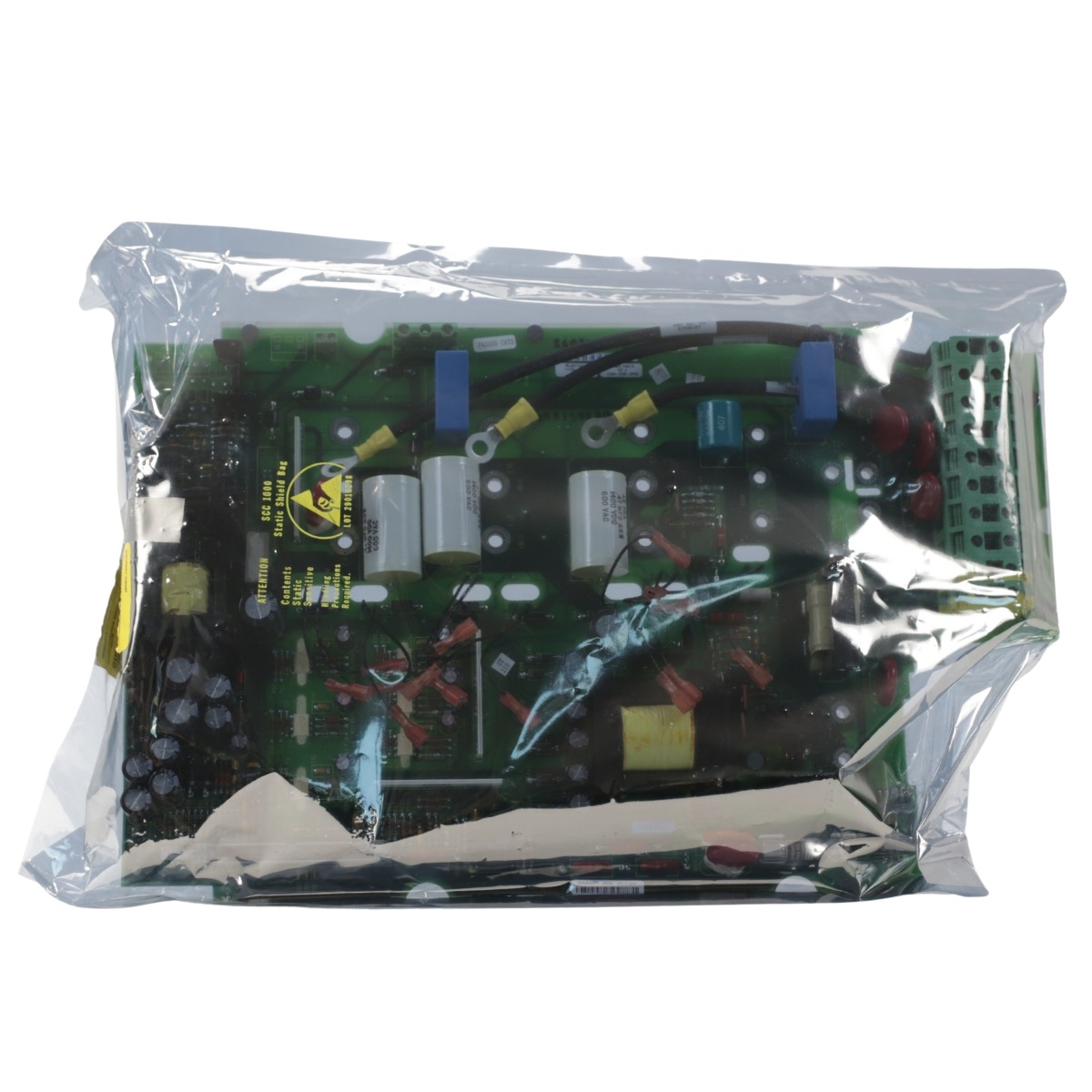

Allen-Bradley 1336-BDB-SP4C Gate Drive Printed Circuit Board for 1336 Series Variable Frequency Drives

Allen-Bradley 1336-BDB-SP4C Gate Drive PCB for 1336 VFD Power Control

The Allen-Bradley 1336-BDB-SP4C is a gate drive printed circuit board engineered for use within Allen-Bradley 1336 series variable frequency drives. This PCB supports 20 horsepower drive configurations and operates at 460 VAC for controlled power switching.

Integrated Gate Drive Control Architecture

• Designed specifically for Allen-Bradley 1336 series drives
• Rated for 20 horsepower drive applications
• 460 VAC operating voltage support
• Back-panel mounting to the main control board

Operational Design and Electrical Performance

The 1336-BDB-SP4C operates within a 50/60 Hz frequency range and supports stable gate drive operation based on load conditions. The board is built for installation in controlled environments to protect sensitive electronic components.

Compatible Drive Applications

• Allen-Bradley 1336 series variable frequency drives
• Three-phase motor speed and torque control systems
• Industrial drive maintenance and replacement scenarios
