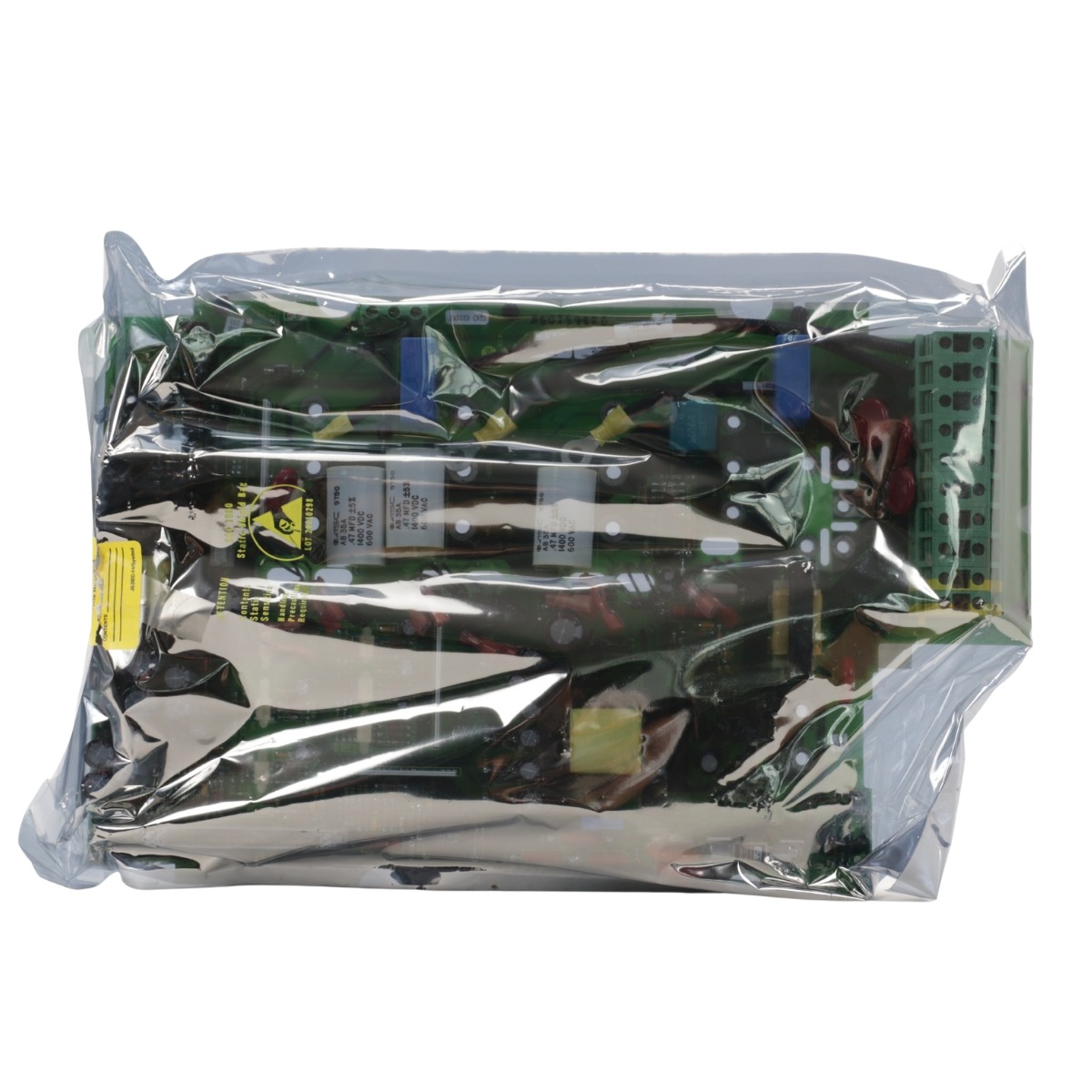

Allen-Bradley 1336-CONV-SP4A 1336 Series AC Drive Converter / Power Module, Series A

Allen-Bradley 1336-CONV-SP4A Converter Module for 1336 AC Drives

The Allen-Bradley 1336-CONV-SP4A is a converter and power module engineered for use within the Allen-Bradley 1336 Adjustable Frequency Drive family. This module supports internal power conversion functions required for controlling three-phase induction motors in industrial drive systems.

Converter Module Integration for 1336 Drive Architecture

• Designed specifically for Allen-Bradley 1336 series AC motor drives
• Supports microprocessor-controlled adjustable frequency operation
• Compatible with Series A 1336 drive configurations
• Integrates into modular 1336 drive power assemblies

Power Conversion and Drive System Design

This converter module operates as part of the internal power structure of the 1336 drive platform, enabling stable adjustable frequency output for motor speed control. Its design aligns with the shared mechanical and electrical architecture used across multiple 1336 drive variants.

Supported Industrial Applications

• Three-phase induction motor control systems
• Industrial automation and motor-driven machinery
• Maintenance and support of installed 1336 drive systems
