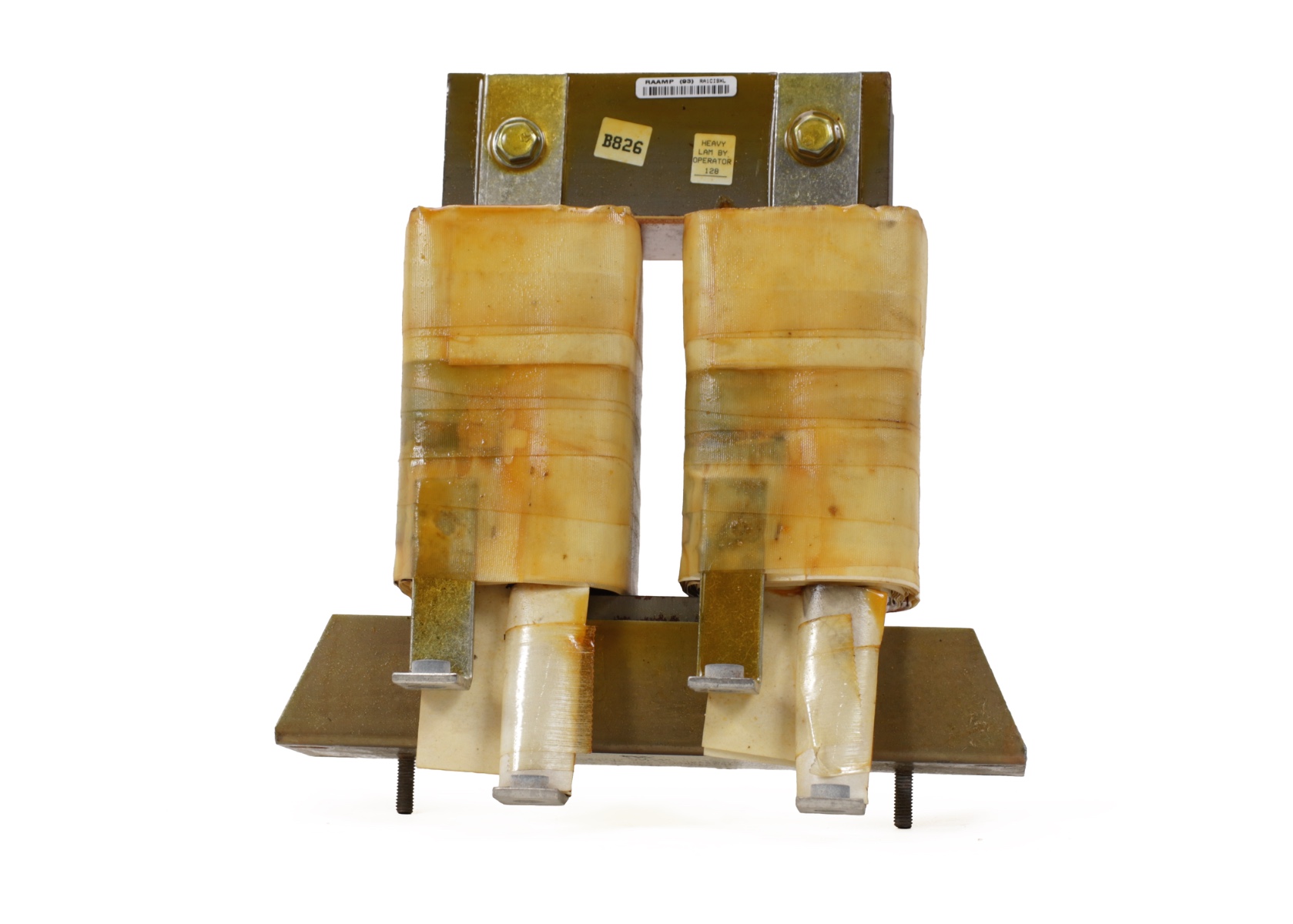

Allen-Bradley 1336-L-SP12A Line/Converter Power Module, Series A

Allen-Bradley 1336-L-SP12A Line/Converter Power Module

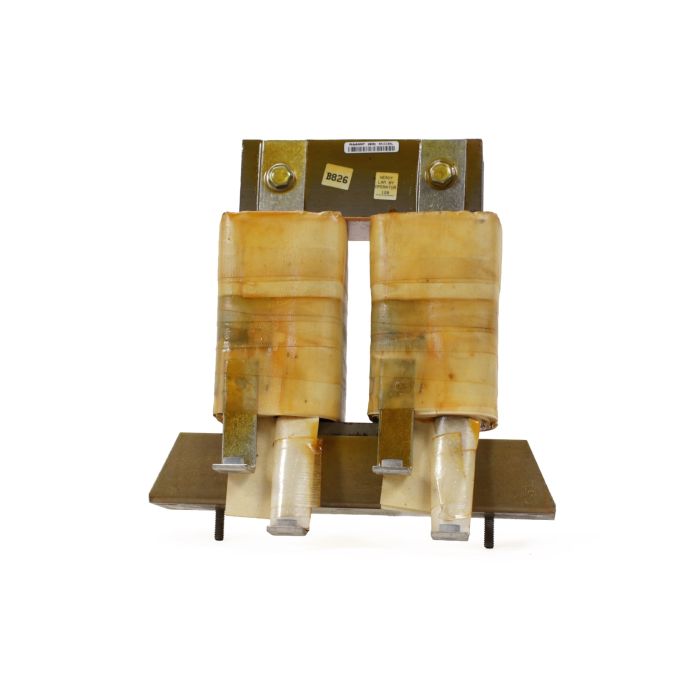

The Allen-Bradley 1336-L-SP12A is an OEM line converter and inductor module engineered for the 1336 adjustable frequency AC drive family. Designed for high-horsepower applications, it provides essential input power conditioning that supports drive stability and long-term performance across industrial motor control systems.

Why It Helps

By smoothing and conditioning incoming AC power before it reaches the drive’s internal conversion circuits, the 1336-L-SP12A helps protect critical components while ensuring consistent operation. Its design aligns with the electrical demands of high-capacity 1336 PLUS, IMPACT, and FORCE drives across multiple voltage classes.

Key Highlights

• Designed for 1336 Series Drives: Compatible with 1336 PLUS, 1336 IMPACT, and 1336 FORCE AC drives for seamless integration in industrial motor control applications.

• High-Horsepower Support: Supports 50 HP at 230V, 100 HP at 460V, and 125 HP at 575V, enabling reliable operation in large drive systems.

• Stable Power Conditioning: Provides line inductance to help reduce electrical noise, improve drive reliability, and enhance power conversion consistency.

• OEM Rockwell Automation Component: Manufactured by Allen-Bradley to match original specifications and maintain proper drive performance.

System Compatibility

Engineered specifically for Allen-Bradley 1336 PLUS, 1336 IMPACT, and 1336 FORCE adjustable frequency motor drives.

Applications

Ideal for industrial motor control systems using Allen-Bradley 1336 series drives in manufacturing, processing, and automation environments requiring stable, conditioned input power for high-horsepower motors. Supports consistent and reliable drive performance in demanding duty cycles.
