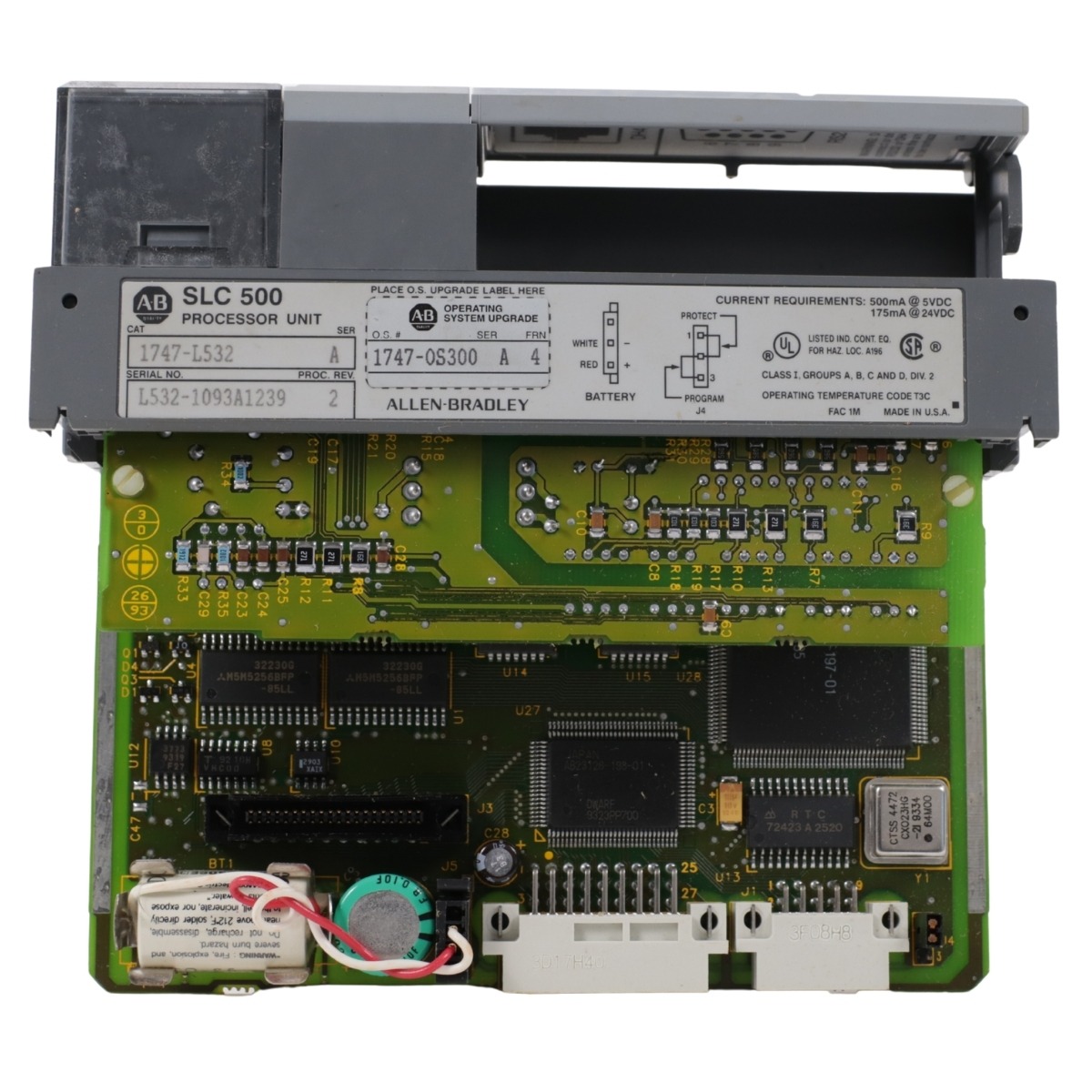

Allen-Bradley 1747-L532 SLC 500 SLC 5/03 Programmable Logic Controller Processor

Allen-Bradley 1747-L532 SLC 5/03 Processor for Modular SLC 500 Control

The Allen-Bradley 1747-L532 is an SLC 5/03 processor designed for the SLC 500 modular automation platform. It executes control logic, manages system I/O, and supports industrial communication for distributed and stand-alone control architectures.

Integrated SLC 5/03 Processing Capabilities

• Supports up to 4096 discrete inputs and 4096 discrete outputs
• Handles up to 480 local analog I/O points
• Provides 16,000 words of battery-backed user memory
• Integrated DH-485 and RS-232 communication interfaces

Modular Architecture and System Performance

The processor installs directly into an SLC 500 chassis and communicates across the backplane to control I/O modules. Its fast scan times enable responsive control while maintaining reliable data handling across multiple chassis configurations.

Industrial Automation Applications

• Material handling and conveyor control systems
• Small-to-mid-scale process control environments
• HVAC and building automation systems
