Allen-Bradley 1771-RTP1 Remote Terminal Panel for PLC-5 1771-N Analog I/O Modules

SKU: NO100989
Model: 1771-RTP1
Product Condition: New - Open Box
$199.95

Allen-Bradley 1771-RTP1 remote termination panel for PLC-5 systems simplifies analog field wiring, supports 1771-N modules, and enables cold-junction compensation for precise thermocouple measurements.

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Allen Bradley Programmable Logic Controllers (PLCs) Automation
Product Description

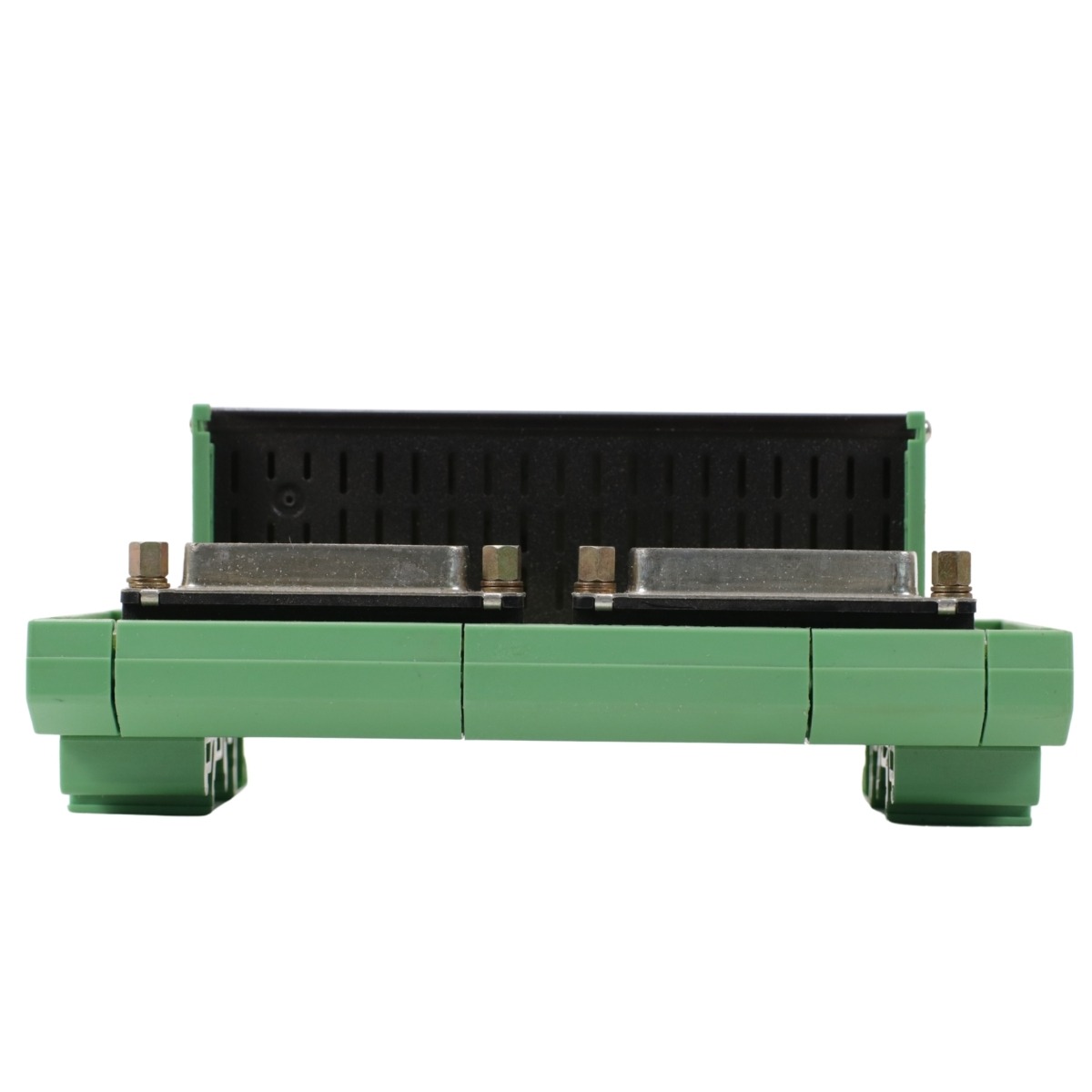

Allen-Bradley 1771-RTP1 PLC-5 Remote Termination Panel for 1771-N Analog I/O

The Allen-Bradley 1771-RTP1 is a remote terminal panel designed for PLC-5 systems using 1771-N series high-resolution analog I/O modules. It relocates field wiring from the I/O chassis to a dedicated panel, improving accessibility and system maintainability.

Remote Wiring Architecture for Analog Precision

  • Supports up to eight 1771-N series analog I/O modules
  • Provides cold-junction compensation for thermocouple inputs
  • Allows I/O module removal without disconnecting field wiring

Designed for High-Resolution Isolated Analog Systems

The panel interfaces with compatible PLC-5 analog modules using dedicated Allen-Bradley connection cables, preserving signal integrity while simplifying installation and troubleshooting in complex control environments.

Typical Applications

  • Industrial temperature monitoring and control systems
  • Process control panels using thermocouple-based inputs
  • PLC-5 installations requiring service-friendly analog wiring
Specifications
Specifications
MPN 1771-RTP1
Product Condition New - Open Box
Shipping Length (in.) 15
Shipping Width (In.) 15
Shipping Height (In.) 15
Item Returns This item can be returned
Brand Allen-Bradley
Manufacturer Rockwell Automation
Model Number 1771-RTP1
Product Line PLC-5 / 1771 I/O System
Product Type Remote Terminal Panel
Primary Function Remote termination of field wiring for analog I/O modules
Supported I/O Module Series Allen-Bradley 1771-N Series Analog I/O Modules
Maximum Modules Supported 8 Analog I/O Modules
Cold-Junction Compensation Supported for Thermocouple Inputs
Voltage Input Support Supported with External Resistor
Current Input Support Not Supported
Compatible Wiring Arm 1771-WF
Compatible Interface Cables 1771-NC6, 1771-NC15
Mounting Method Panel Mount
Height 4.5 in
Width 12.4 in
Depth 6.3 in
Weight 0.6 lbs
Operating Temperature 32 to 140 °F (0 to 60 °C)
Storage Temperature -40 to 185 °F (-40 to 85 °C)
Humidity Rating 5–95% Non-Condensing
Hazardous Location Rating Class I, Division 2, Groups A, B, C, D
Certifications UL Listed, cUL, CE, KC, CCC, Marine
EMC Compliance EN 50081-2, EN 50082-2
What's in the box?
  • 1 x Allen-Bradley 1771-RTP1 Remote Termination Panel
