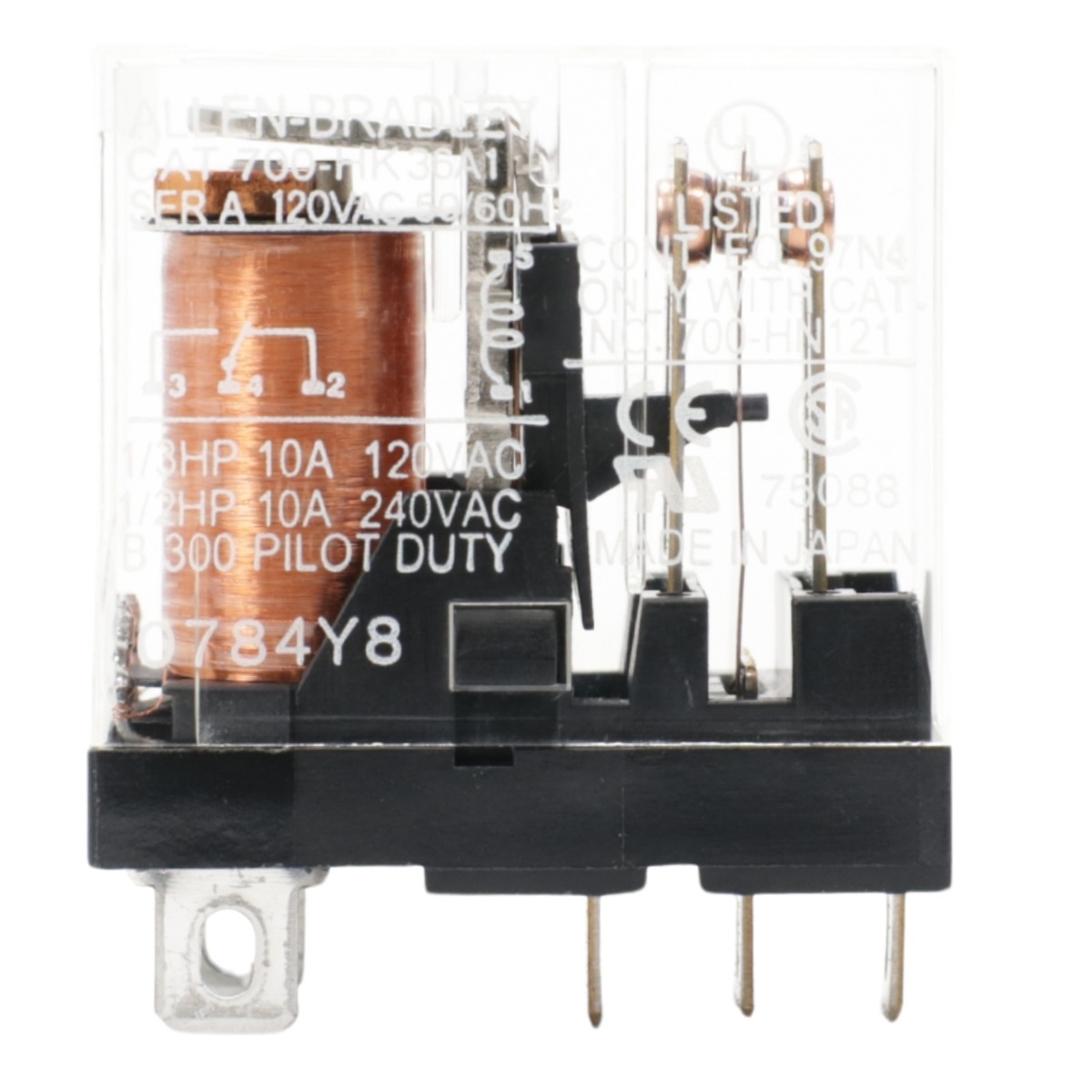

Allen-Bradley 700-HK36A1 Slim Line Plug-In Control Relay

SKU: N102060
Model: 700-HK36A1
Product Condition: New
$24.95

The Allen-Bradley 700-HK36A1 is a slim line plug-in relay with a 120V AC control voltage and one SPDT change-over contact. It supports a nominal current of 16 A and uses silver nickel contacts. Designed for plug-in connections, it is suitable for industrial control applications requiring compact relay solutions.

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Product Description

Allen-Bradley 700-HK36A1 Slim Line Relay

The Allen-Bradley 700-HK36A1 is a slim line general-purpose relay designed for industrial control and automation circuits. It operates on a 120V AC control supply and provides a single change-over contact configuration for switching applications.

Electrical Configuration

  • Single pole double throw (SPDT) contact arrangement
  • Nominal and thermal current rating of 16 A
  • AC actuating voltage type
  • Rated for 120V AC at both 50 Hz and 60 Hz

Mechanical and Construction Details

The relay uses plug-in blade-style terminals and silver nickel contact material. It is rated IP20 when used with a guarded terminal socket and is designed for reliable operation in industrial environments.

Applications

  • Industrial control panels
  • Automation and relay logic circuits
  • General-purpose switching applications
Specifications
Specifications
MPN 700-HK36A1
Product Condition New
Shipping Length (in.) 5.9
Shipping Width (In.) 3.9
Shipping Height (In.) 2.3
Item Returns This item can be returned
SpecificationValue
Contact Configuration1 Change-over (SPDT)
Nominal Current16 A
Rated Thermal Current (Ith)16 A
Control Voltage120 V AC
Frequency50 / 60 Hz
Voltage TypeAC
Connection TypePlug-in connection
Contact MaterialSilver Nickel (AgNi)
Degree of ProtectionIP20
Operating Temperature-40 °C to +70 °C
Storage Temperature-40 °C to +85 °C
Electrical LifeB300, R300, Hp (kW): 6000 minimum
Width12.4 mm
Height29 mm
Depth39.3 mm
Shock Resistance15 G (operational)
Vibration Resistance10…2000 Hz, 0.76 mm, 2.5 G
What's in the box?
  • Allen-Bradley 700-HK36A1 Slim Line Relay
