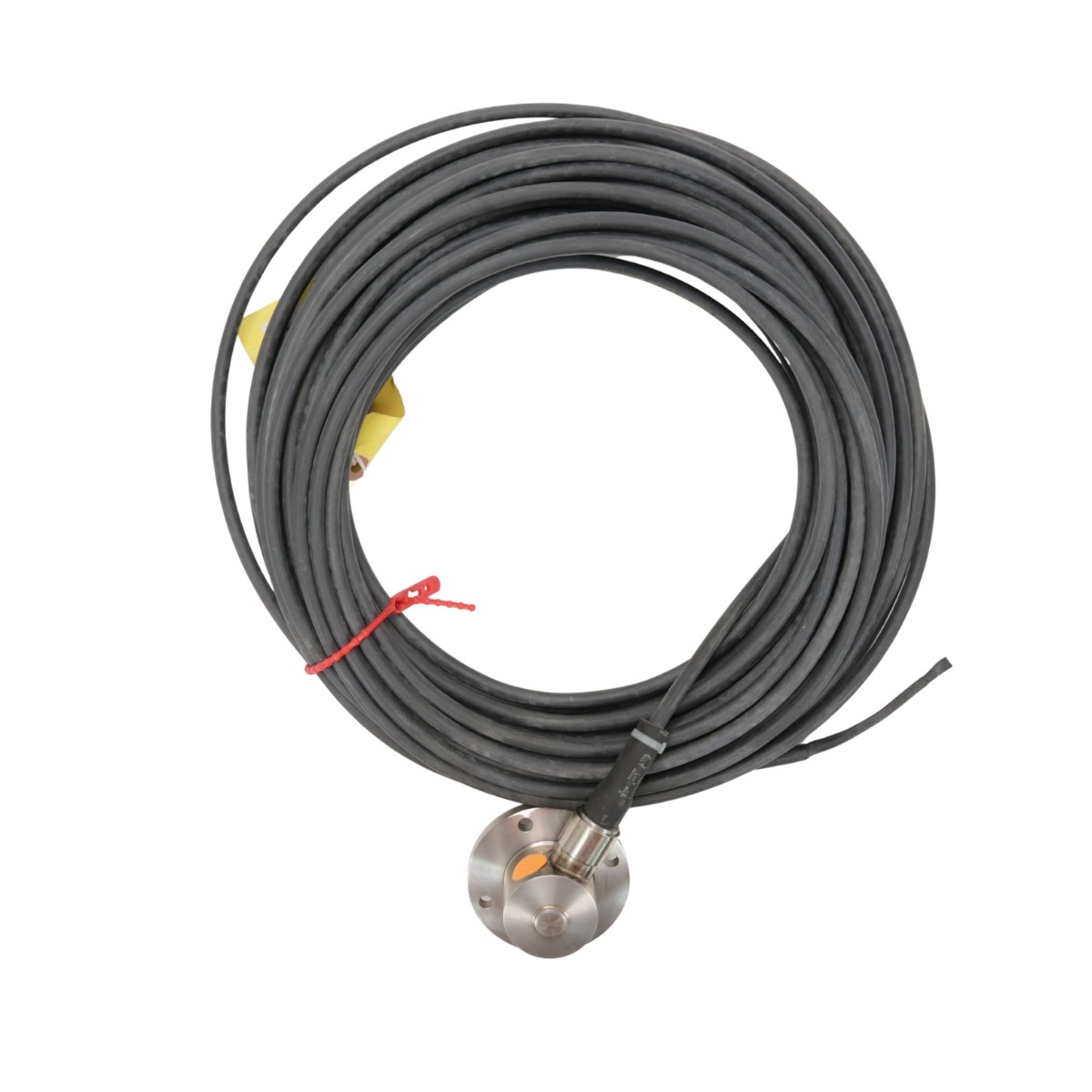

BROSA EBM 6111 Load Cell Force Sensor, 100 kN

The BROSA EBM 6111 is a flange-mounted load cell designed for industrial force measurement. It converts applied mechanical load into an electrical output for monitoring and control. Provided raw product data identifies felt tension control as a stated use context.

- Applied force is introduced through the flange-mounted sensing body for fixed-position measurement.
- The sensing assembly generates an electrical bridge output that can be routed to external monitoring or control equipment.
- Integrated cable connection supports permanent installation in machinery or process systems.
- Housing markings identify supply and output lead functions for system wiring.

- Rated capacity is marked at 100 kN.
- Bridge resistance is marked at 4 x 700 Ω.
- Type marking is identified as 120-D-7C.
- Configuration includes a flange-mount body with attached long cable and flying leads.
- Model marking is identified as EBM 6111, with V/2 referenced in the provided raw title data.

- Felt tension control systems
- Fixed-installation force or tension measurement in industrial equipment
- Process monitoring and control setups requiring a cabled load cell
