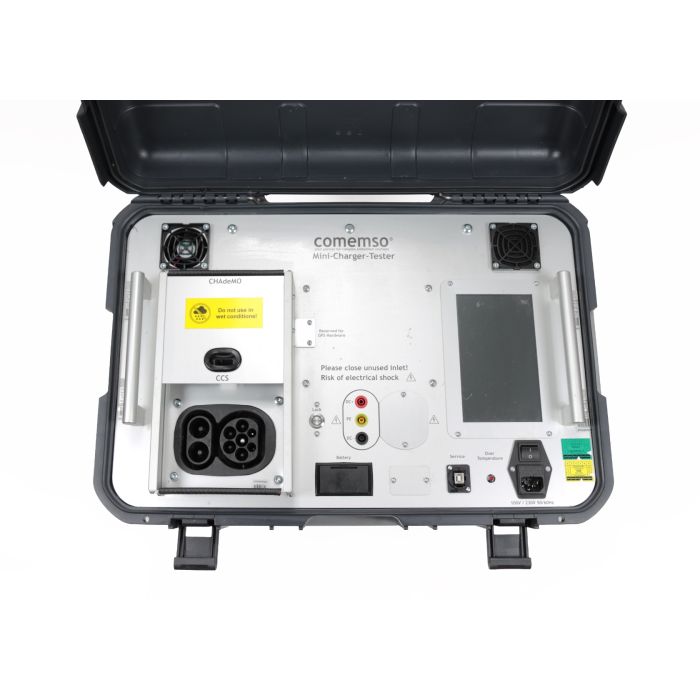

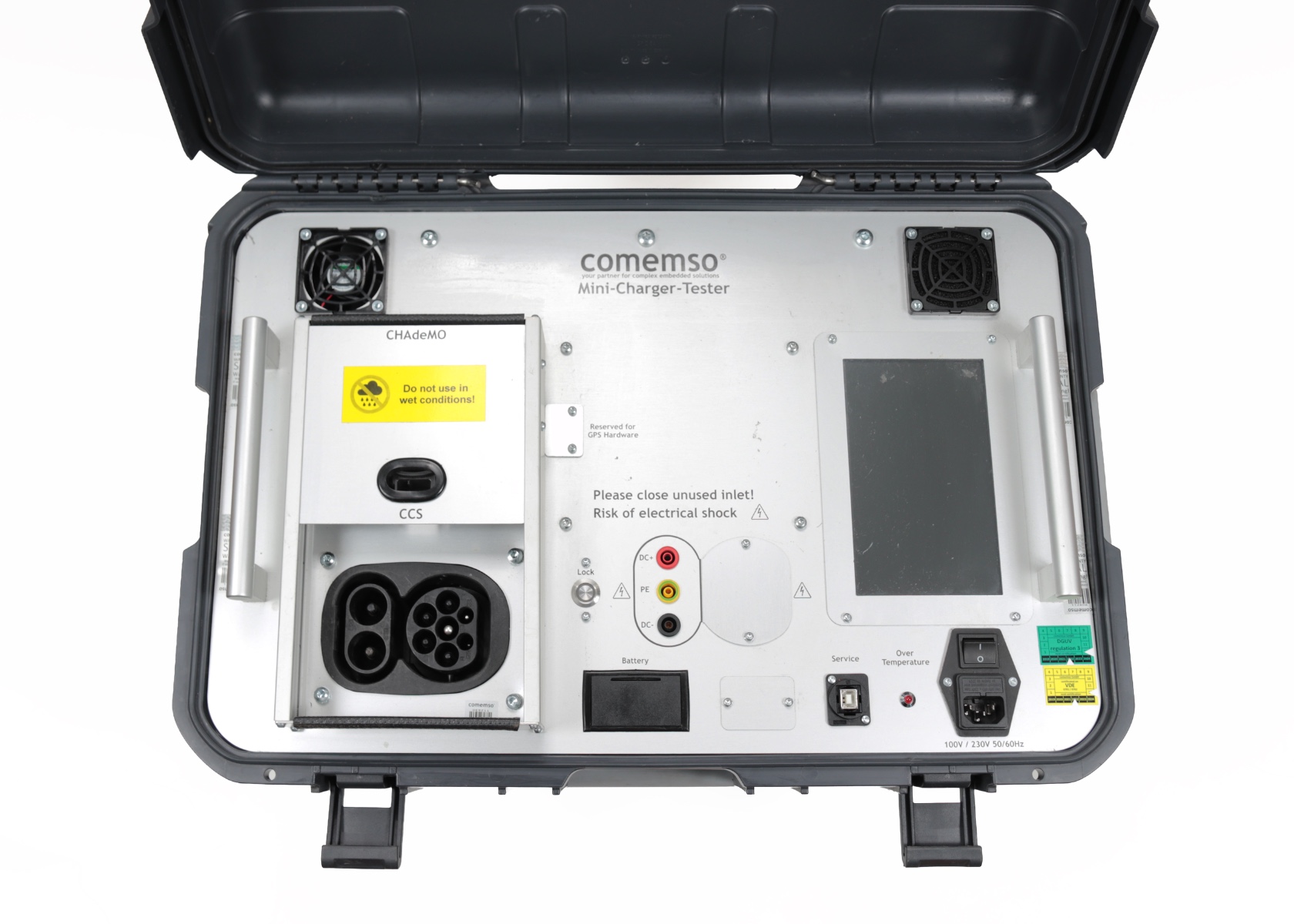

comemso Combined Mini-Charger-Tester EVSE Charging Station Tester with HW Rev3.4

SKU: CP104077
Model: Mini-Charger-Tester
Product Condition: Certified Pre-owned
$6,999.95

comemso Combined Mini-Charger-Tester HW Rev3.4 delivers fast portable CCS and CHAdeMO EVSE checks with touchscreen control, EV simulation, live results, and stored reports.

Read more
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Comemso Multifunction Testers Electrical Testing Equipment
Product Description

EVSE Functional Testing with the comemso Mini-Charger-Tester

The comemso Combined Mini-Charger-Tester HW Rev3.4 is a portable EVSE charging station tester for CCS and CHAdeMO service workflows. It simulates vehicle signals, communication protocols, and load circuits to verify charging station response after service, repair, or recommissioning. Touchscreen operation, real-time display results, and stored PDF reports support field testing without an external computer.

EV Simulation Through Communication and Load Circuit Behavior

  • Simulates DC-CCS and CHAdeMO vehicle behavior to verify charger response during EVSE functional testing.
  • Runs communication protocol and load circuit simulation to confirm charging sequence behavior.
  • Displays test progress and pass/fail results on the integrated touchscreen.
  • Stores PDF report output in the device after testing.

DC Charging Test Functions and Measurement Scope

  • Supports DC-CCS testing with DIN 70121 or ISO 15118 selectable through touchscreen configuration.
  • Supports CHAdeMO test standards 0.9.1, 1.0.0, 1.0.1, 1.1, and 1.2.
  • Measures voltage from 0 to 1000 V with 1 V display resolution.
  • Measures current from 0 to 7 A with 100 mA display resolution.
  • Provides EV simulation output at approximately 300 V and 6 A.

EVSE Service and Maintenance Applications

  • Final functional testing after charging station maintenance or repair.
  • Field checks for DC-CCS and CHAdeMO charging stations.
  • On-site charger verification with touchscreen operation and stored report output.
Specifications
Specifications
MPN Mini-Charger-Tester
Product Condition Certified Pre-owned
Shipping Length (in.) 30
Shipping Width (In.) 22
Shipping Height (In.) 17
Item Returns This item can be returned
General
AC Power Supply Voltage 100 .. 240 V AC (Input)
Suitcase Power Connection Suitcase version can be connected to a 12 V DC cigarette lighter via an inverter; inverter not included
Weight Suitcase: appx. 16 kg
Size (L x W x D) Suitcase: appx. 600 x 400 x 330 mm
Operating Temperature Suitcase: -15 .. +40 °C
Results On display and PDF report stored in device
Test / Analysis Standards CHAdeMO: Ver. 0.9.1, 1.0.0, 1.0.1, 1.1 and 1.2; DC-CCS: DIN 70121 or ISO 15118 on demand, changeable by configuration via touchscreen
Power Consumption Max. 500 VA, inrush current higher
Inrush Current CHAdeMO: appx. 10.7 A; DC-CCS: appx. 8.3 A
Water Resistance According to IEC 60529 Suitcase only: closed lid IP66; open lid IP43
Measuring Range, Accuracy Etc.
Voltage Measurement Range 0 .. 1000 V
Voltage Measurement Resolution (Display) +/- 1 V
Voltage Measurement Accuracy (Not Calibrated) +/- 1 V
Current Measurement Range 0 .. 7 A
Current Measurement Resolution (Display) +/- 100 mA
Current Measurement Accuracy (Not Calibrated) +/- 0.5 A
EV Simulation
Voltage Approx. 300 V (output)
Current Approx. 6 A
Duration Charge Cycle Suitcase: appx. 30 sec.
Isolation Fault Simulation for DC-CCS
EVSE Warning Check DC+ to PE: 475 kOhm; DC- to PE: 475 kOhm
EVSE Alert / Switch Off Test DC+ to PE: 95 kOhm; DC- to PE: 95 kOhm
Optional Special Fault Injection DC-CCS signal lines: PE cut, CP short
Miscellaneous
Isolated Banana Sockets DC: to validate the voltage; AC: connect AC load up to max. 32 A per phase
Lock Extension DC-CCS inlet
What's in the box?
  • 1 x comemso Combined Mini-Charger-Tester
    • 1 x power cord
