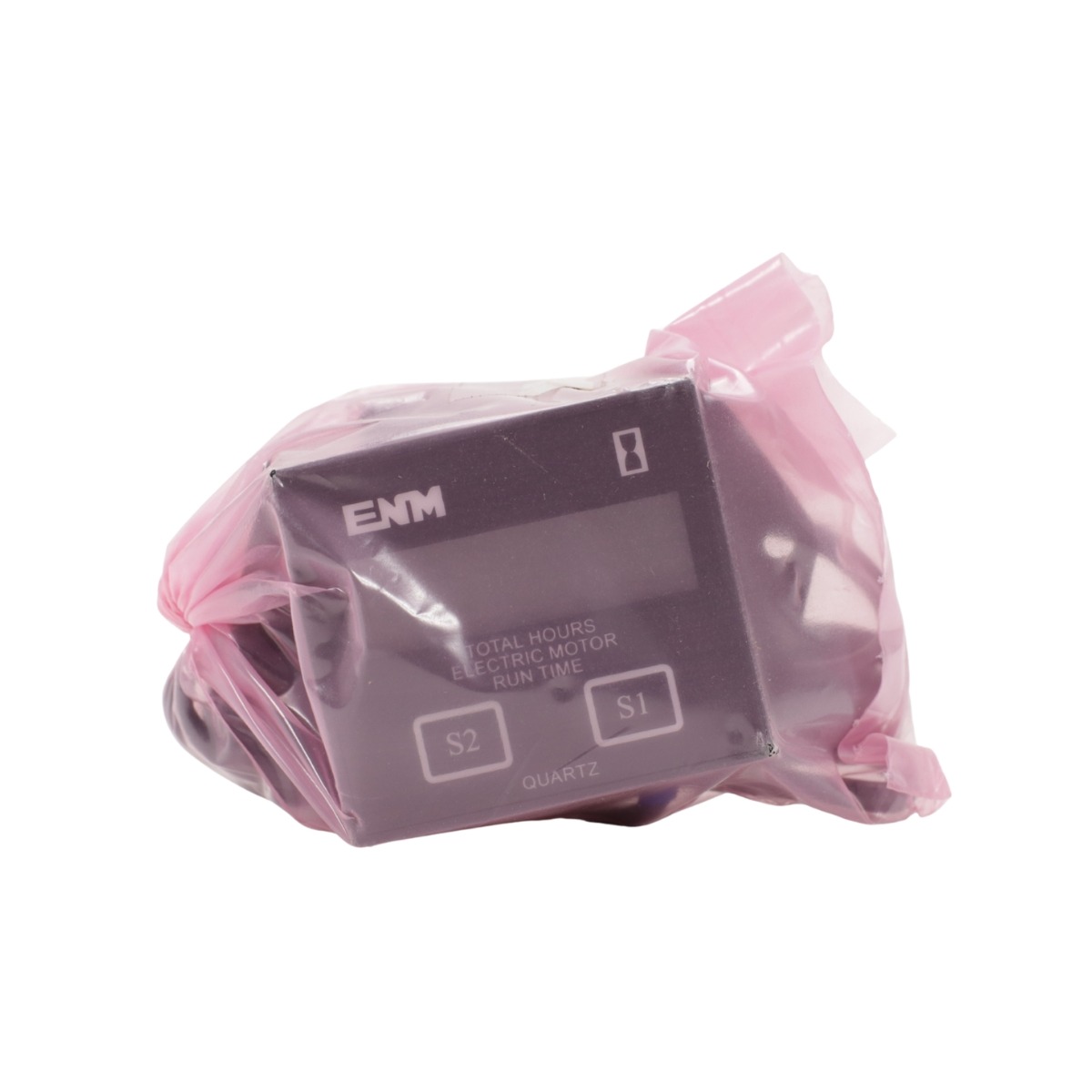

ENM MT101R Electric Motor Hour Meter

SKU: N102248
Model: MT101R
Product Condition: New
$49.00

ENM MT101R is a self-powered electric motor hour meter for AC or DC motors. It uses an external sensor on a 4 ft cable to detect motor magnetic field and display true motor run time.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
ENM Company Automotive Automation
Product Description

Magnetic Field Monitoring of Motor Run Time in AC/DC Applications

The problem is tracking actual motor operating time without external power wiring. The method is magnetic field sensing at the motor casing. ENM MT101R provides a self-powered way to record run time for AC or DC electric motors.

Run-Time Sensing Method

- Self-powered digital hour meter
- Designed for AC or DC electric motors
- Sensor is attached to the end of a 4 ft external cable
- Sensor detects the motor magnetic field through the casing
- LCD displays accumulated motor running time

Resettable Front-Panel Control

ENM MT101R uses front-panel pushbuttons for resettable operation. The display remains active from the internal lithium battery, and the meter counts when the motor magnetic field is detected.

Typical Use Context

- Electric motor service tracking
- Maintenance scheduling
- Warranty time recording

Specifications
Specifications
MPN MT101R
Product Condition New
Shipping Length (in.) 4
Shipping Width (In.) 4
Shipping Height (In.) 3
Item Returns This item can be returned
SpecificationValue
BrandENM
ModelMT101R
SeriesMT10
Instrument TypeSelf-powered AC/DC electric motor hour meter
Display Reading9999.9 hours
Display5-digit, 8 mm LCD
Power SourceInternal lithium battery
Battery Life15,000 hours continuous running
Sensor Cable Length4 ft external cable
Operating Temperature-40C to +85C (-40F to +185F)
Vibration Resistance10 to 75 Hz at 1 to 8 g
Mounting ConfigurationTwo-hole base mount
Width2.890 in
Height1.815 in
Depth0.775 in
What's in the box?
  • ENM MT101R electric motor hour meter with attached sensor cable
