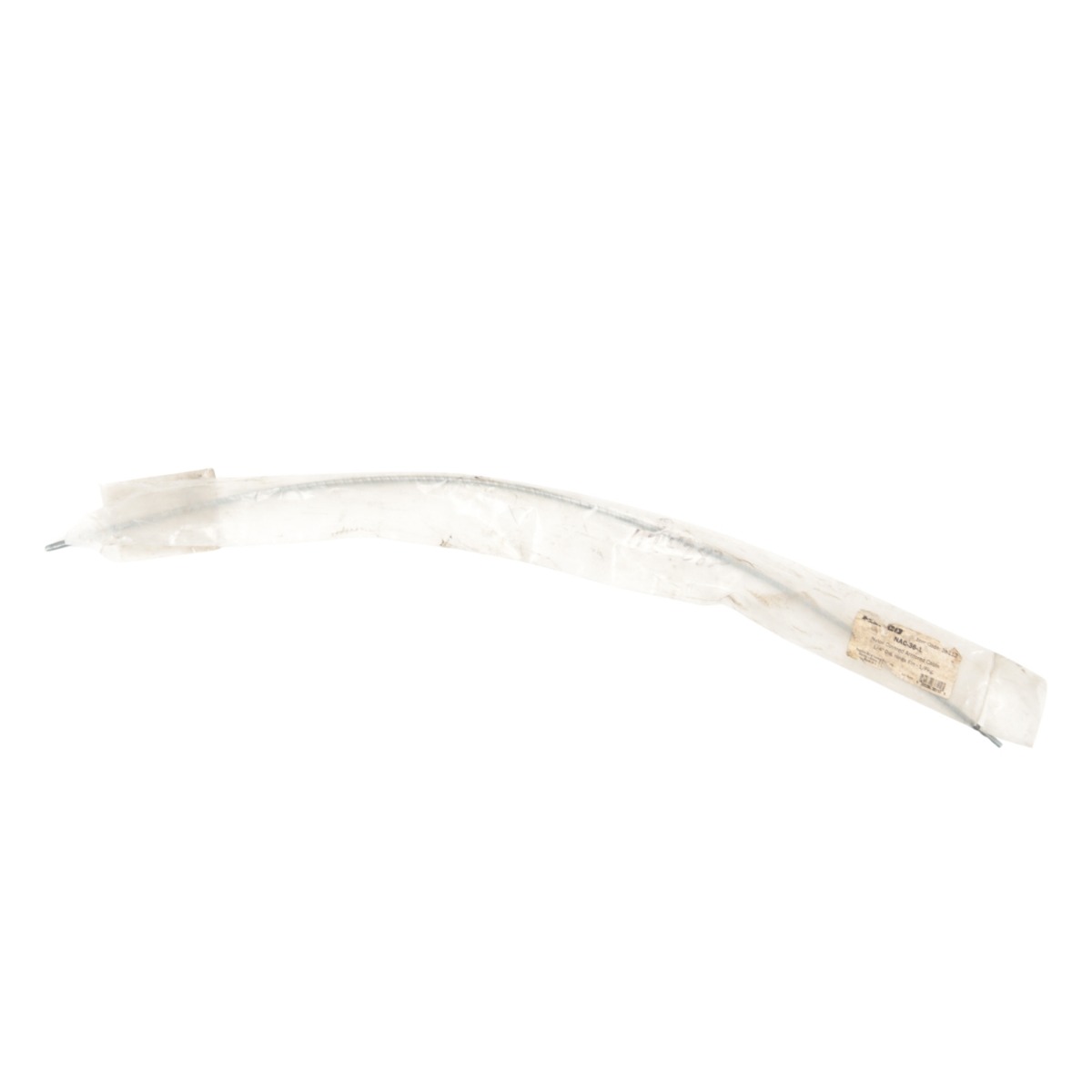

Flexco NC-36-1 Conveyor Belt Hinge Pin

SKU: NO102544
Model: NC-36-1
Product Condition: New - Open Box
$12.95

Flexco NC-36-1 conveyor belt hinge pin delivers a flexible 1/4 in nylon covered steel cable connection, pre-cut for 36 in belt width splices in compatible Flexco hinged fastener systems.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Flexco Fastening Tools and Accessories Construction
Product Description

Conveyor Belt Splice Connection for 36 Inch Belt Systems

The Flexco NC-36-1 is a conveyor belt hinge pin sized for 36 inch belt widths. It forms the flexible connection in mechanical belt splices using a nylon covered steel cable construction. It is suited for Flexco hinged fastening systems that use 1/4 inch diameter hinge pins.

Flexible Pin Connection Through Hinged Fastener Loops

- A 1/4 inch cable-style hinge pin passes through the intermeshed loops of a mechanical belt splice to connect belt ends.
- The nylon covered steel cable construction provides a flexible joining method for belt operation over pulleys.
- The nylon covering helps reduce friction during pin movement within the splice.
- The coated cable design helps protect fastener loops from internal wear during service.

Size, Material, and Compatibility Details

- Nylon covered steel cable hinge pin construction
- 1/4 inch (6.3 mm) diameter
- Pre-cut for 36 inch (900 mm) belt width
- Single-pin Each configuration
- Compatible with Flexco 375X, 550, R2, R5, and R5-1/2 hinged fastener systems

Conveyor Belt Splicing Applications

- Replacement hinge pin for Flexco bolt hinged splices
- Replacement hinge pin for Flexco rivet hinged splices
- Conveyor belt maintenance for 36 inch belt systems

Specifications
Specifications
MPN NC-36-1
Product Condition New - Open Box
Shipping Length (in.) 38
Shipping Width (In.) 2
Shipping Height (In.) 2
Item Returns This item can be returned
BrandFlexco
ModelNC-36-1
MPNNC-36-1
Item Code38008
Product TypeConveyor Belt Hinge Pin
Hinge Pin MaterialNylon Covered Steel Cable
Hinge Pin Diameter1/4 in (6.35 mm)
Belt Width36 in (900 mm)
Package ConfigurationOne pin
Unit of MeasureEach
Weight0.20 lb (0.09 kg)
Fastener CompatibilityFlexco Bolt Hinged 375X, 550; Flexco Rivet Hinged R2, R5, R5-1/2
What's in the box?
  • 1 x Flexco NC-36-1 Nylon Covered Steel Cable Hinge Pin
