Fluke Networks DTX-1800-MS CableAnalyzer Cat 6A Fiber Kit

SKU: CART-02378
Model: DTX-1800-MS
Product Condition: Certified Pre-owned
$5,499.95

Fluke Networks DTX-1800-MS CableAnalyzer Cat 6A Fiber Kit supports Cat 6A/Class EA copper certification with SmartRemote operation plus multimode and singlemode fiber loss/length testing using DTX-MFM2 and DTX-SFM2 module capability.

Read more
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Fluke Networks Copper Testers Fiber Optic Testers
Product Description

Copper and Fiber Certification for DTX-1800-MS Cabling Workflows

The Fluke Networks DTX-1800-MS CableAnalyzer is a copper and fiber cable certification kit built around the DTX-1800 platform. It certifies twisted-pair copper cabling and supports fiber loss/length certification through multimode and singlemode fiber module capability. The kit supports structured cabling certification, troubleshooting, documentation, and LinkWare reporting workflows.

Two-Ended Cable Certification with SmartRemote Operation

  • Main and SmartRemote units support two-ended certification.
  • Autotest applies selected standards and reports pass/fail results.
  • Diagnostics show distance to fault and likely fault cause.
  • LinkWare support enables saved result transfer and reporting.

Copper and Fiber Measurement Capabilities

  • DTX-1800 supports 900 MHz bandwidth and Level IV accuracy.
  • Copper testing includes wire map, length, resistance, insertion loss, return loss, NEXT, ACR, ELFEXT, and power sum measurements.
  • Cat 6A/Class EA adapters support copper certification workflows.
  • DTX-MFM2 and DTX-SFM2 modules support multimode and singlemode fiber loss/length testing.
  • Fiber modules support multi-wavelength optical loss testing and integrated VFL.

Structured Cabling Certification Applications

  • Cat 6A copper certification for structured cabling installations.
  • Multimode and singlemode fiber loss/length certification.
  • Copper and fiber troubleshooting with certification documentation.
Specifications
Specifications
MPN DTX-1800-MS
Product Condition Certified Pre-owned
Shipping Length (in.) 20
Shipping Width (In.) 12
Shipping Height (In.) 20
Fiber Mode Singlemode/Multimode
Wavelength Configuration 850/1300 nm multimode; 1310/1550 nm singlemode
Item Returns This item can be returned
DTX-1800 CableAnalyzer
Primary Function Copper cable certification with optional resident fiber module support
Cat 6 Autotest Time 9 seconds
Maximum Bandwidth 900 MHz
Accuracy Level Level IV
Display 3.7 in diagonal passive color transmissive LCD with backlight, 240 x 320 resolution
Diagnostics Advanced diagnostics with distance-to-fault indication and likely fault cause reporting
Tone Generator 440 Hz to 831 Hz tones generated on all pairs
DTX-1800 SmartRemote
Remote Function Two-ended certification endpoint for main unit operation
Remote Operation Starts Autotest from the SmartRemote
Talk Function Talk capability between main unit and SmartRemote
Module Support Accepts compatible resident fiber modules
Copper Certification Capability
Supported Copper Media Shielded and unshielded twisted-pair LAN cabling; 100 ohm TIA Category 3, 4, 5, 5e, and 6; ISO/IEC Class C, D, E, and F
Supported Copper Standards TIA/EIA-568B Category 3 and 5e; TIA TSB-95 Category 5; TIA/EIA-568B.2-1 Category 6; ISO/IEC 11801 Class C, D, E, and F; EN 50173 Class C, D, E, and F; IEEE 802.3 10BASE-T, 100BASE-TX, and 1000BASE-T
Copper Test Parameters Wire map, length, propagation delay, delay skew, DC loop resistance, insertion loss, return loss, NEXT, ACR, ELFEXT, power sum ELFEXT, power sum NEXT, and power sum ACR
AC Wire Map Supported
Copper Interface Adapters
Channel Adapter Support Cat 6/Class E channel adapters; photographed kit includes Cat 6A/Class EA channel adapters
Permanent Link Adapter Support Cat 6/Class E permanent link adapters; photographed kit includes Cat 6A/Class EA permanent link adapter
Connector Type Shielded 8-pin modular RJ45 interface
DTX-MFM2 Multimode Fiber Modules
Module Configuration Multimode fiber module set for main unit and SmartRemote operation
Source Type LED sources
Source Wavelengths 850 nm and 1300 nm combined into a single output port
Power Meter Wavelengths 850/1300/1310/1550 nm
Integrated VFL Yes
DTX-SFM2 Singlemode Fiber Modules
Module Configuration Singlemode fiber module set for main unit and SmartRemote operation
Source Type Laser sources
Source Wavelengths 1310 nm and 1550 nm combined into a single output port
Power Meter Wavelengths 850/1300/1310/1550 nm
Integrated VFL Yes
Fiber Certification Capability
Fiber Test Functions Loss, length, polarity, multi-wavelength optical loss, and VFL-supported continuity/fault checks
Fiber Autotest Dual-fiber, dual-wavelength certification test in about 12 seconds
Fiber Modes Multimode and singlemode
Storage, Software, and Interfaces
Internal Memory Stores up to 250 graphical Cat 6 results
Removable Memory Removable memory card interface
PC Interfaces USB and serial interface
Software Support LinkWare cable test management software
Power and Physical Specifications
Battery Type Lithium-ion battery pack, 7.4 V, 4000 mAh
Typical Battery Life 12 to 14 hours
Charge Time 4 hours with tester off, below 104°F
Case High-impact plastic with shock-absorbing overmold
Main Unit / SmartRemote Dimensions 8.5 in x 4.4 in x 2.4 in, nominal
Main Unit / SmartRemote Weight 2.4 lb, nominal, without adapter or module
Environmental and Service
Operating Temperature 32°F to 104°F
Storage Temperature -4°F to 140°F
Operating Relative Humidity 0% to 90% from 32°F to 95°F; 0% to 70% from 95°F to 113°F, non-condensing
Shock Rating 1 m drop test with and without module and adapter attached

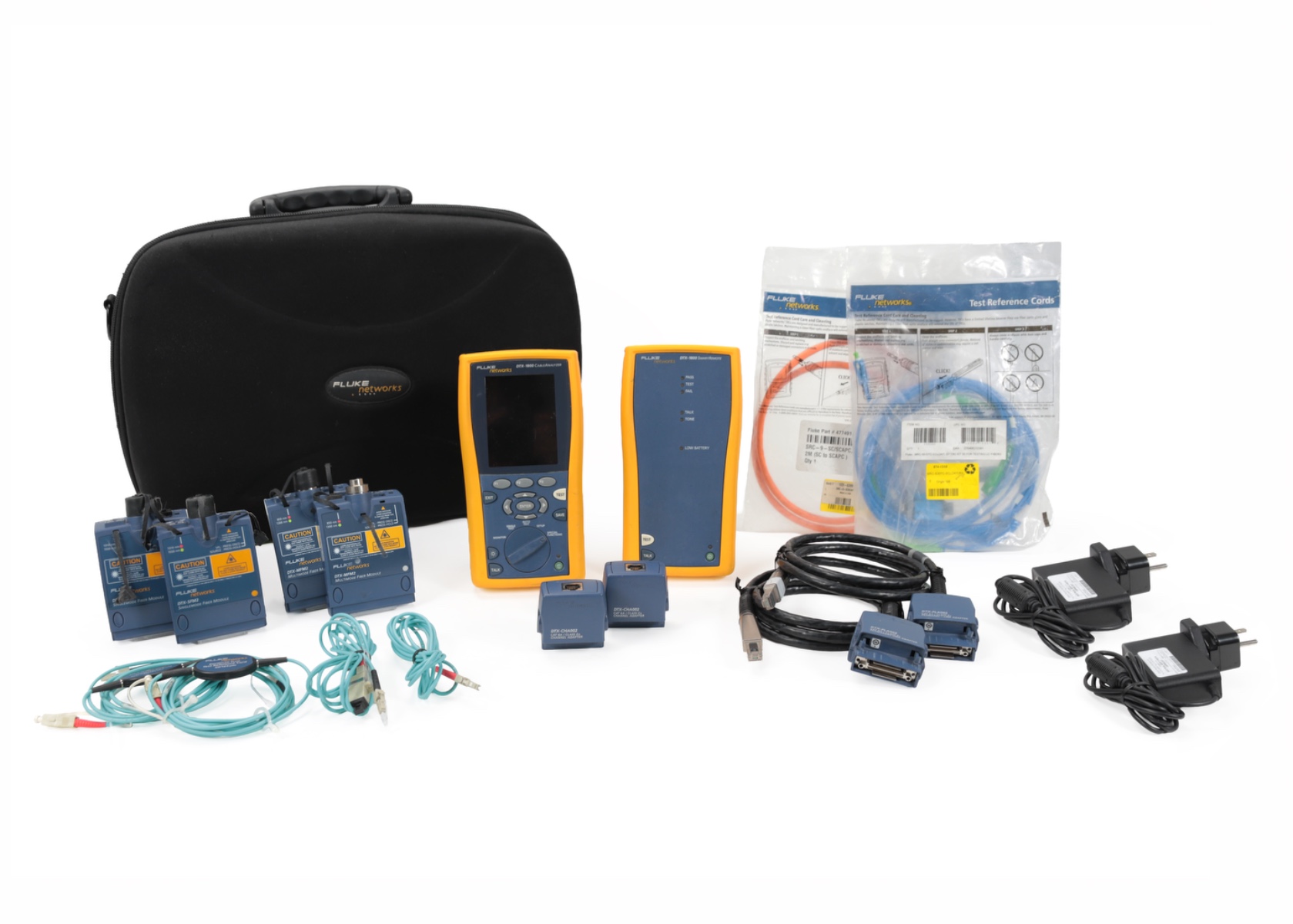

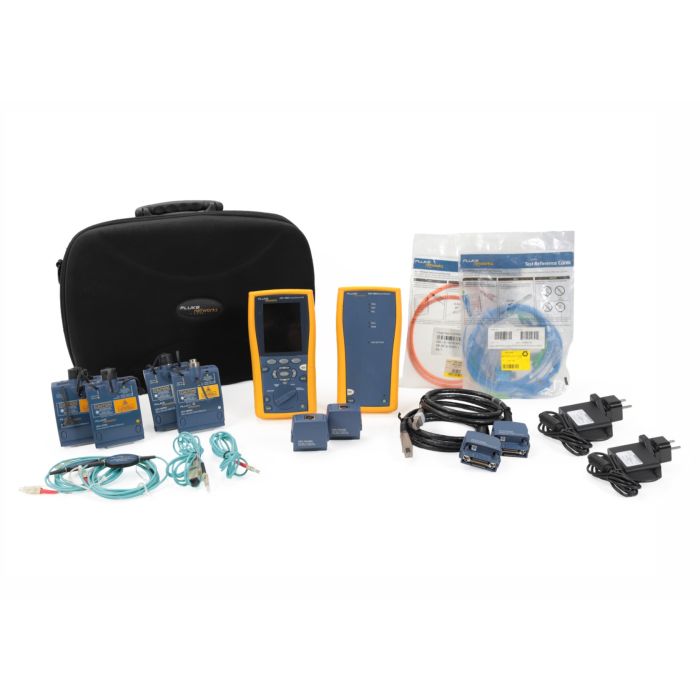

What's in the box?
  • 1 x Fluke Networks DTX-1800 CableAnalyzer
  • 1 x Fluke Networks DTX-1800 SmartRemote
  • 1 x DTX-SFM2 Singlemode Fiber Modules Set
  • 1 x DTX-MFM2 Multimode Fiber Modules Set
  • 1 x DTX-CHA002 Cat 6A/Class EA Channel Adapters Set
  • 1 x DTX-PLA002 Cat 6A/Class EA Permanent Link Adapters Set
  • 2 x AC Power Adapter/Charger
  • 1 x Fluke Networks Singlemode TRC Kit, Part #4774913
  • 2 x Fluke Networks Encircled Flux Test Reference Cords, 50/125 µm
  • 1 x Set Singlemode Fiber Reference/Test Cords
  • 1 x Set Multimode Fiber Reference/Test Cords
  • 1 x Assorted Fiber Patch/Reference Cord Set
  • 1 x Fluke Networks DTX-Series Molded Carrying Case
    • 1 x Shoulder Strap
Technical Resources
Related Posts

No Related Posts

Reviews
Write Your Own Review
You're reviewing: Fluke Networks DTX-1800 Cat6a SM MM Fiber Cable Analyzer
loader
Loading...

You submitted your review for moderation.

Trustpilot

Related Products

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Fluke DTX CableAnalyzer Fiber Copper Testing All Accessories
Certified Pre-owned

Fluke DTX-1800 Cat6a SM MM Fiber Cable Analyzer

$6,999.95
Model : DTX-1800-MS
Product Condition : Certified Pre-owned
0 Reviews

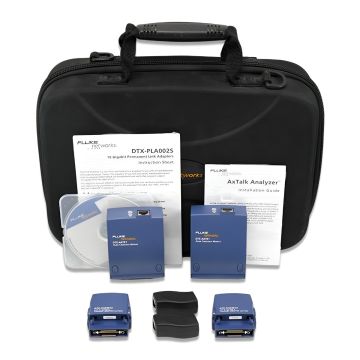

Fluke Networks DTX AXKIT Cable Analyzer Product View
