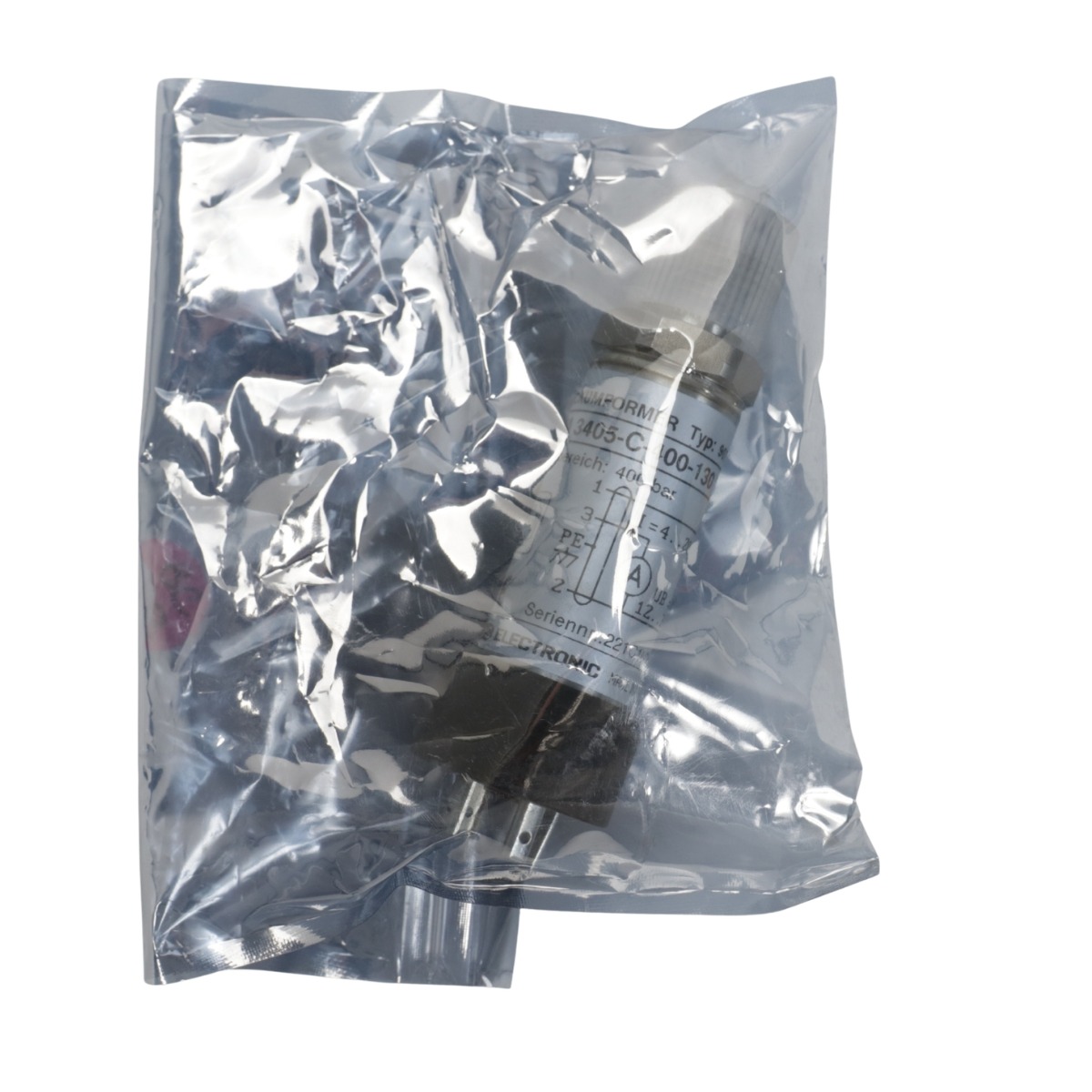

HYDAC HDA 3405-C-400-130 Pressure Transmitter, 0-400 Bar

SKU: NO102116
Model: HDA 3405-C-400-130
Product Condition: New - Open Box
$499.00

HYDAC HDA 3405-C-400-130 pressure transmitter with 0 to 400 bar relative pressure range, G 1/4 A process connection, and 4-pole Binder series 714 M18 electrical connection.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
HYDAC Pressure Transmitters Sensor and Switches Automation
Product Description

Pressure measurement in industrial hydraulic systems

The HYDAC HDA 3405-C-400-130 is a pressure transmitter for industrial pressure measurement in hydraulic and related systems. It uses thin-film strain gauge sensing on a stainless steel membrane and is configured for a 0 to 400 bar relative pressure range.

Thin-film sensing construction

- Thin-film strain gauge on stainless steel membrane
- Sealless sensor construction
- 0 to 400 bar relative pressure range
- Stainless steel media-contact parts
- Designed for industrial hydraulics and steelworks use

Process and electrical interface

The HYDAC HDA 3405-C-400-130 connects through a G 1/4 A ISO 1179-2 external thread and uses a male 4-pole Binder series 714 M18 electrical connector. The stated response time is less than 10 ms, and the design is described for high-pressure cycle service.

Application scope

- Industrial hydraulic systems
- Steelworks
- Rolling mills

Specifications
Specifications
MPN HDA 3405-C-400-130
Product Condition New - Open Box
Shipping Length (in.) 8
Shipping Width (In.) 6
Shipping Height (In.) 2
Item Returns This item can be returned
BrandHYDAC
ModelHDA 3405-C-400-130
Product TypePressure Transmitter
SeriesHDA 3400
Pressure Range0 to 400 bar relative
Sensor TechnologyThin-film strain gauge on stainless steel membrane
Mechanical ConnectionG 1/4 A ISO 1179-2 external thread
Electrical ConnectionMale 4-pole Binder series 714 M18 connector
ConstructionSealless design
Wetted MaterialsStainless steel
Response Time< 10 ms
Service Life> 10 million load cycles (0 to 100% full scale)
Typical ApplicationsIndustrial hydraulics, steelworks, rolling mills
What's in the box?
  • 1 x HYDAC HDA 3405-C-400-130 Pressure Transmitter
  • 1 x Anti-static bag
