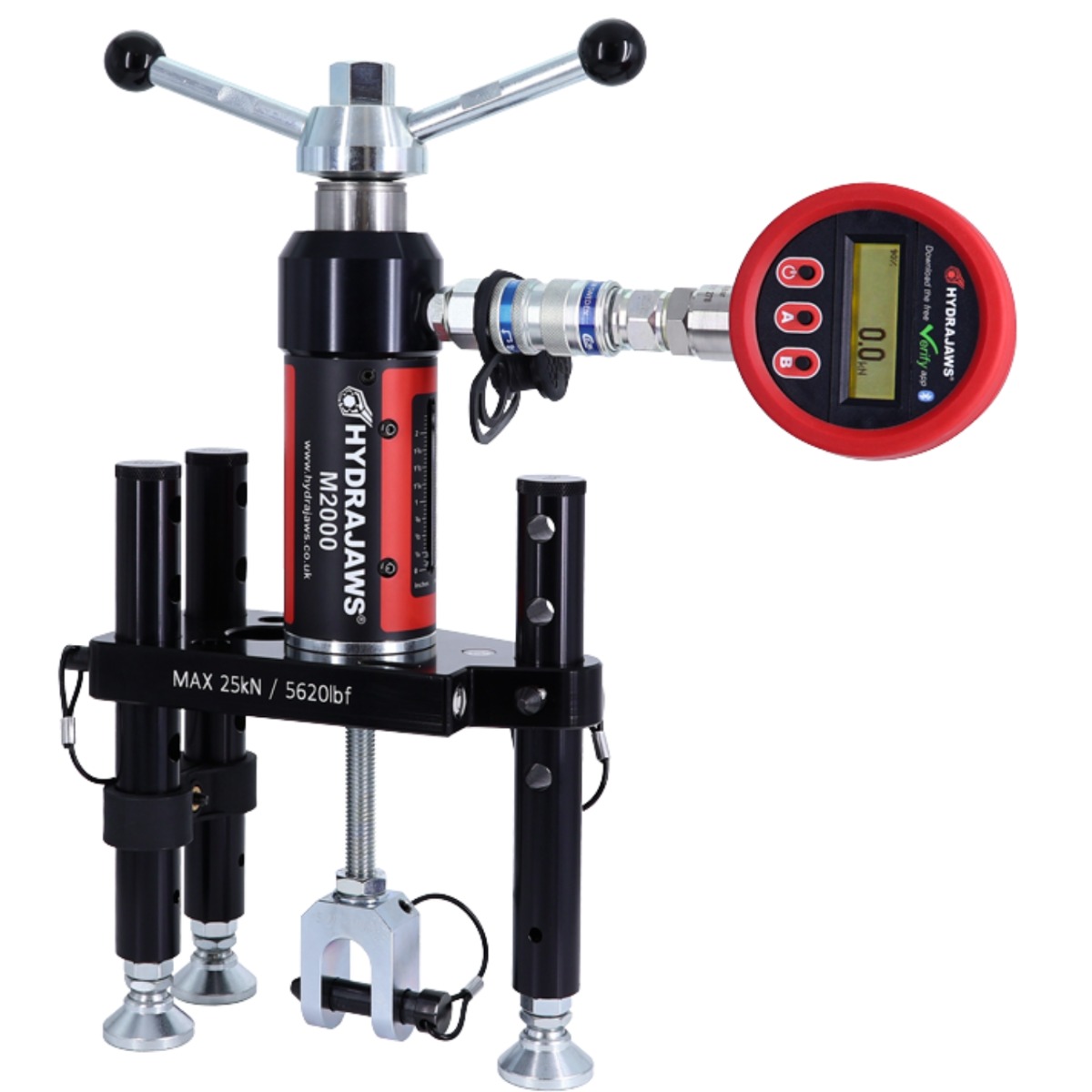

Hydrajaws M2000 Scaffold Tie Tester Kit with Digital/Analogue Gauge Options

The Hydrajaws M2000 Scaffold Tie Tester Kit is a scaffold anchor pull tester for checking common scaffold anchors and fixings. It applies controlled tensile load through a hydraulic load cell and displays pull-out load on the fitted gauge. The kit is configured for scaffold tie testing up to 25kN / 5620 lbf.

- Mechanical screw loading acts through a hydraulic load cell to apply tensile force to the fixing.
- Pull-out load is indicated on the fitted analogue or digital gauge for direct reading during the test.
- The 2020 three-legged load spreading bridge positions reaction loads away from the fixing.
- Height-adjustable legs and swivel feet support bridge leveling before load is applied.
- The 50mm movement indicator scale helps show first movement before the test load is reached.

- Pull-out load range: 0-25kN / 5620 lbf.
- Effective stroke: 50mm.
- Load gauge: interchangeable, dual scale kN/lbf.
- Digital gauge configuration includes peak hold memory, IP54 rating, and -10°C to +50°C working temperature.
- Turning handle includes an integrated 22mm operating nut for confined-space operation.

- Tests scaffold anchors and ringbolts used for anchoring scaffold ties.
- Supports testing of M16 drop-in scaffold tie anchors using the M16 hexagon setscrew.
- Supports eye-type anchor testing using the M12 ringbolt adaptor clevis.

- MPN 200-014 — Hydrajaws M2000 Scaffold Tie (A) Tester Kit with 0-25kN / 5620 lbf Analogue DS Gauge.
- MPN 200-015 — Hydrajaws M2000 Scaffold Tie (D) Tester Kit with 0-25kN / 5620 lbf Digital DS Gauge.

The digital gauge configuration is compatible with the Hydrajaws Verify Reporting System for recording test results, managing test schedules, and generating reports online.
