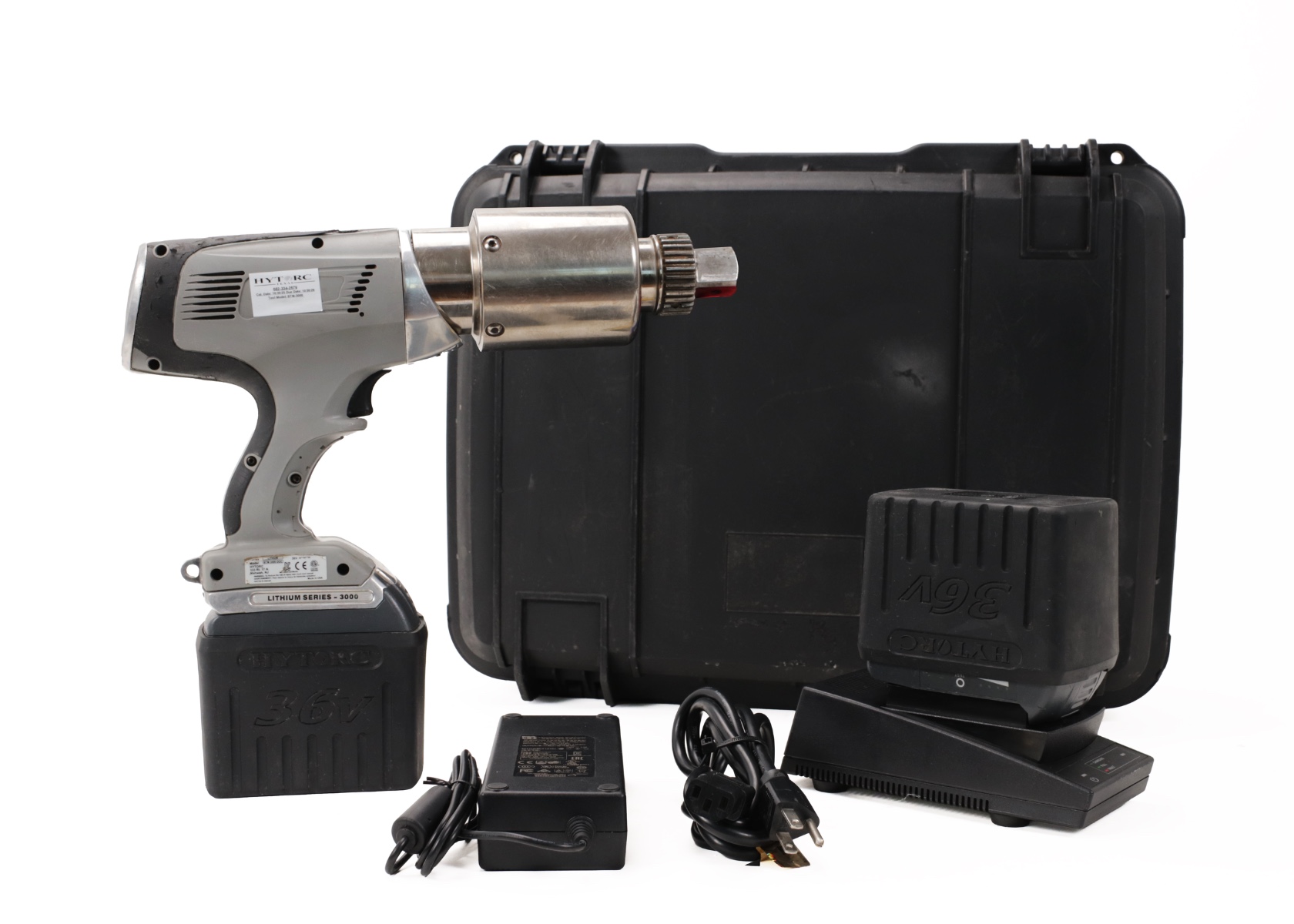

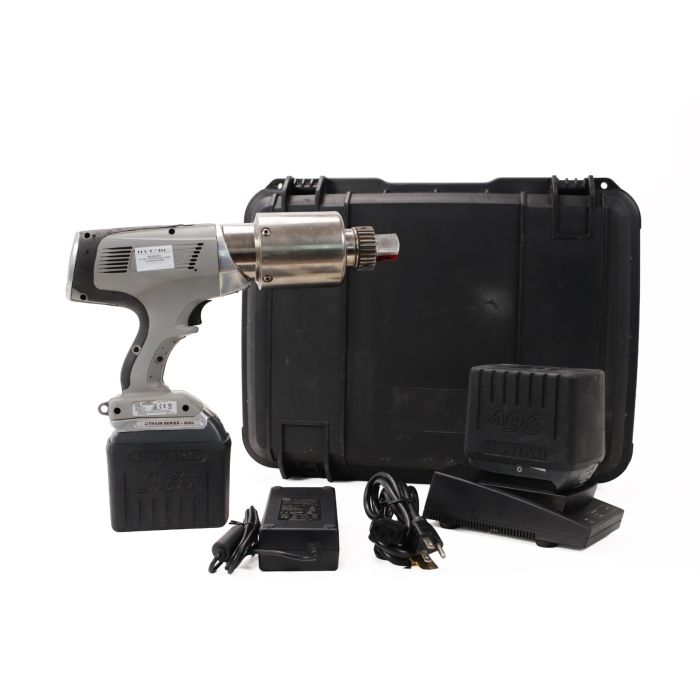

HYTORC BTM-3000-DOC Lithium Series Electric Torque Tool for Controlled Bolt Tightening, Calibrated

High-Output Electric Torque Performance for Industrial Bolting

The HYTORC BTM-3000-DOC Lithium Series Electric Torque Tool is engineered for heavy-duty industrial bolting where speed, accuracy, and mobility are essential. Built around a high-strength planetary gearbox and a brushed DC motor, the tool delivers controlled torque through a digital push-button interface that manages torque, angle, and automated release settings. The 36V lithium-ion power system supports full-output operation until depletion, ensuring consistent torque delivery throughout each cycle. A dual-speed mechanical gearbox provides rapid rundown prior to final torque, improving workflow efficiency in field environments.

Why It Helps

The BTM-3000-DOC improves precision and repeatability by integrating electronic torque control, angle tightening capability, and post-torque release to reduce reaction load on the operator. Its digital control panel simplifies parameter setup, enabling users to configure torque limits, angle rotation, and release angle directly from the tool. A built-in data acquisition system records job parameters and exports them via USB in CSV format, supporting traceability and documentation requirements for industrial bolting programs.

Key Highlights

• High-strength planetary gear drive with dual-speed operation
• Digital torque, angle, and release controls with LCD display
• Torque settings adjustable within tool’s OEM limits
• 36V lithium-ion battery system with full-power output until depletion
• USB data export for job documentation
• Supports HYTORC reaction arms, HYTORC Washer, and HYTORC Nut systems
• Integrated cooling vents and onboard diagnostics

Applications

• Plant maintenance and industrial assembly
• Pipeline, flange, and pressure-vessel bolting
• Power generation and utility bolting operations
• Mining, chemical, and heavy-equipment service
