INNO Instrument SCTX1000 1000A AC/DC Pass-Through Current Sensor

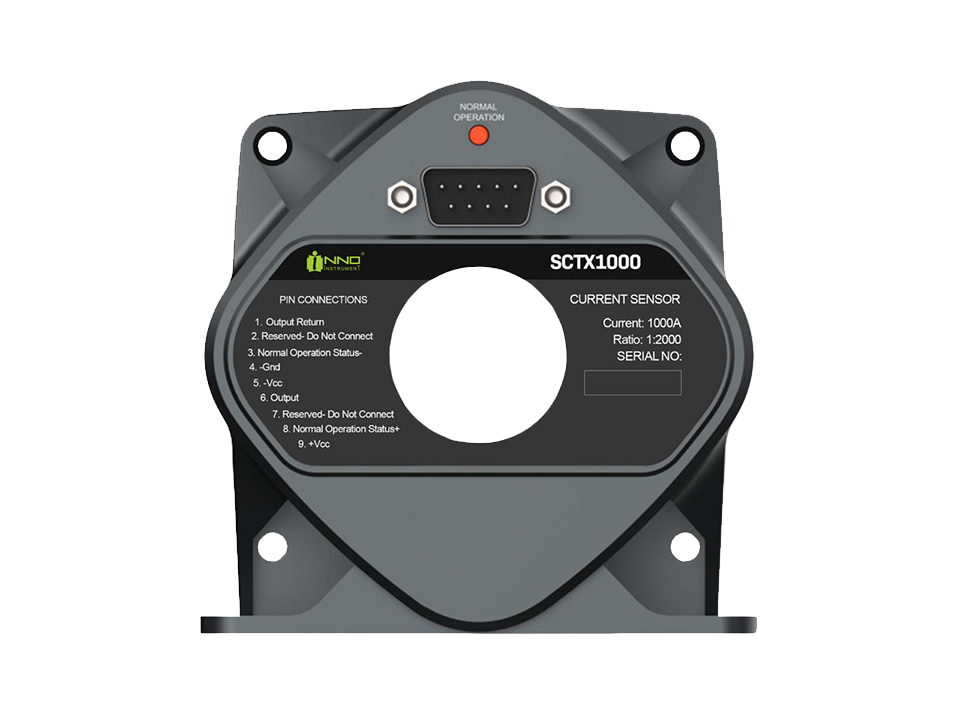

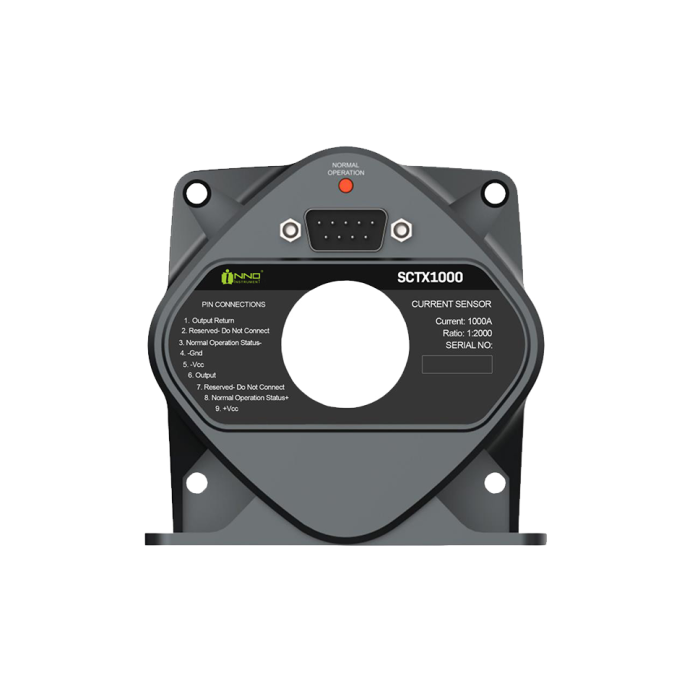

INNO Instrument SCTX1000 1000A AC/DC Current Sensor

The INNO Instrument SCTX1000 is a pass-through current sensor designed for AC/DC current measurement up to 1000A. This configuration uses a 30.9 mm aperture, DB9 connector interface, and DC to 300 kHz measuring bandwidth.

Manufacturer literature identifies the SCTX1000 as part of the SCTX Series and specifies a 1:2000 ratio with ±15V to ±24V supply requirements. The sensor is positioned for precision current measurement applications in instrument, inverter, medical, and smart grid environments.

Feature and Capability Focus

• 1000A DC measurement range with 1000A peak AC capability
• Pass-through aperture design for conductor routing
• Saturation detection and self-recovery capability
• Instant-on operation with no warm-up time
• Strong immunity from interference

Performance and Interface

The SCTX1000 is specified with ±(0.008% of reading + 10µA) accuracy, <5 ppm linearity, and 0.1 ppm/K temperature coefficient. It uses a DB9 connector, operates with a measuring resistor range of 0 to 3Ω, and requires a ±15V to ±24V supply.

Applications

• Precision measuring instruments
• High-accuracy inverter development and testing
• Smart grid current flow measurement
