INNO Mini M7 Fusion Splicer V-Groove Clad Alignment Fiber Optic Splicing Tool with FC-6S Cleaver

SKU: CART-05298
Model: M7
Product Condition: Certified Pre-owned
$1,999.95

INNO M7 Fusion Splicer + Sumitomo Cleaver: Fast, precise fiber splicing with 130 cycles/battery. Ultra-portable, 4.3” touchscreen, and rugged design!

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
INNO Instrument Fusion Splicers Fiber Optic Testers Network, Cable & Fiber Testers
Product Description

The INNO M7 Fusion Splicer + Sumitomo FC-6S Cleaver is the ultimate solution for fast and precise fiber optic splicing. Designed for professionals, this compact yet powerful tool ensures seamless fiber connections with advanced Active Clad Alignment technology. With a high-resolution 4.3” touchscreen, ultra-portability, and long-lasting battery life, the INNO M7 is perfect for telecom, FTTx, and data center applications. Get ready to experience unmatched performance and reliability in every splice!



Key Features:



  • Active Clad Alignment Technology: Delivers high-precision fiber alignment for superior splice quality.
  • Ultra-Portable & Lightweight: Compact design makes it easy to carry and use in tight spaces.
  • 4.3” High-Resolution Touchscreen: Provides clear fiber images and intuitive operation.
  • Fast Splicing & Heating Time: Complete splicing in just 7 seconds and heating in 13 seconds.
  • Long Battery Life: Perform up to 130 splices per charge for uninterrupted workflow.
  • Durable & Field-Ready: Built to withstand harsh environments, ensuring reliability on-site.
  •

Benefits:



  • Increased Efficiency: Minimize downtime with fast splicing and heating times.
  • Enhanced Portability: Lightweight design makes it easy to transport for field operations.
  • Reliable Performance: Advanced alignment technology ensures accurate and low-loss splicing.
  • Seamless User Experience: Intuitive touchscreen and customizable strap for comfortable use.
  • Versatile Applications: Ideal for telecommunications, FTTx installations, data centers, and industrial networks.
  •

Upgrade your fiber splicing experience with the INNO M7 Fusion Splicer—precision, speed, and reliability in one powerful tool!

Specifications
Specifications
MPN Mini M7
Product Condition Certified Pre-owned
Shipping Length (in.) 24
Shipping Width (In.) 12
Shipping Height (In.) 12
Item Returns This item can be returned
Brand INNO Instrument
Model Number INNO M7
Splicing Technology Active Clad Alignment
Screen Size 4.3 inches High-Resolution Touchscreen
Splicing Time 7 seconds (Quick Mode), 9 seconds (Typical)
Heating Time 13 seconds (45mm sleeve), 15 seconds (60mm sleeve)
Battery Capacity 130 splicing cycles (typical use), 200 cycles (power save mode)
Applicable Fibers SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655)
Compatible Fiber Diameter 0.25~3.0 mm / Indoor Cable
Cleaved Length 10 - 16 mm
Cladding Diameter 80 μm - 150 μm
Typical Splice Loss 0.03dB (SM) / 0.01dB (MM) / 0.05dB (DS, NZDS) / 0.03dB (G.657)
Return Loss > 60dB
Electrode Life 5000 arcs (extendable with electrode grinder)
Lighting 2 White LEDs
Results Storage Last 10,000 records
Operating Methods Button / Touchscreen
Power Supply AC Input 100-240V, DC Input 9-14V
Automatic Calibration Automatic arc calibration by air pressure and temperature
Shock Resistance Drop tested from 76 cm
Dust Resistance Tested in a dust chamber for 8 hours (IPX)
Water Resistance Drip resistance up to 15° tilt (IPX2)
Dimensions (H x W x D) 8” x 8” x 8”
Weight 5 lbs
Operating Conditions Altitude: 0~5000m, Humidity: 0~95% RH, Temperature: -10~50°C, Wind: 15m/s
Storage Conditions Temperature: -40~80°C, Humidity: 0~95% RH
Terminal USB Type-C

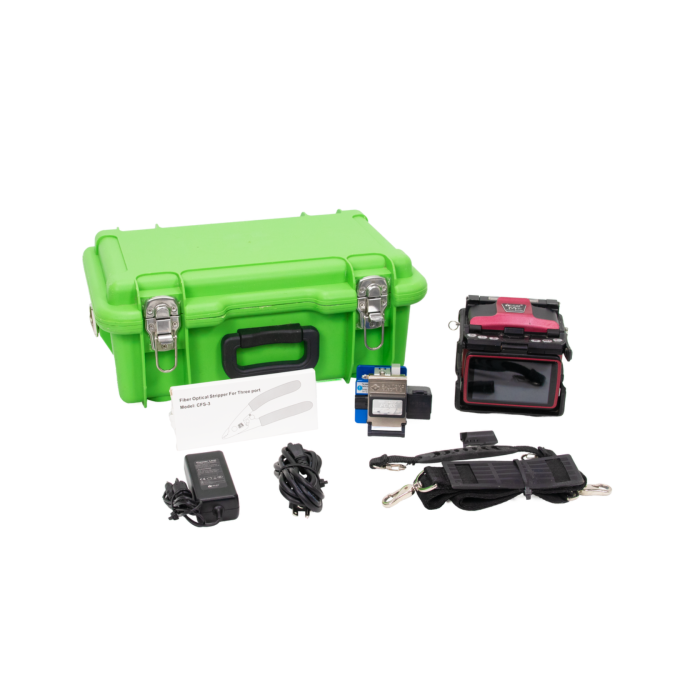

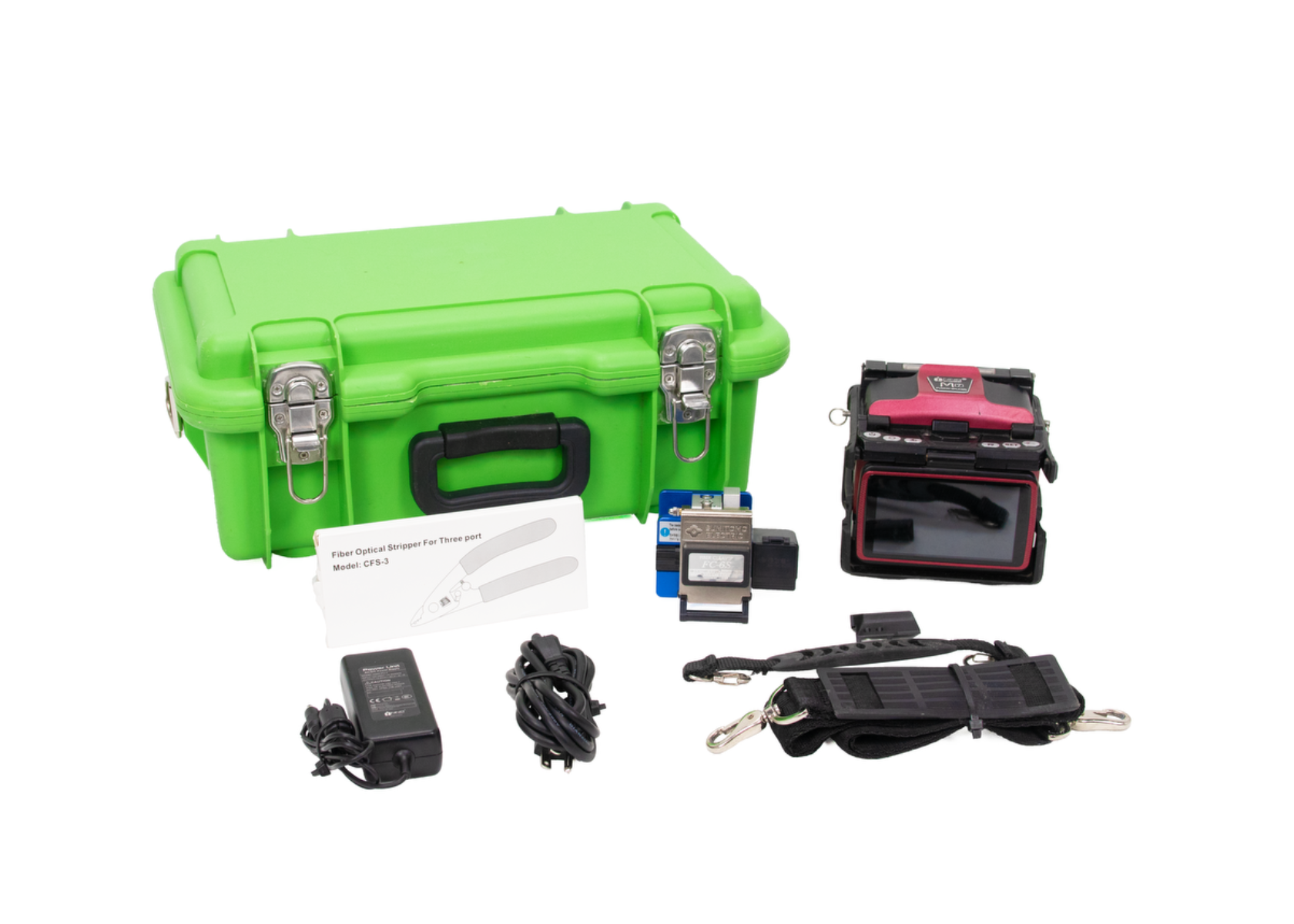

What's in the box?
  • 1 x INNO M7 Clad Alignment Fusion Splicer
  • 1 x Sumitomo Electric FC-6S Fiber Cleaver
  • 1 x CFS-3 Fiber Optical Stripper for Three Port
  • 1 x Set FH-40 Fiber Clamp Holder
  • 1 x AC Adapter with Charger
  • 1 x Hard Transport Case
  • 1 x Carrying Strap
