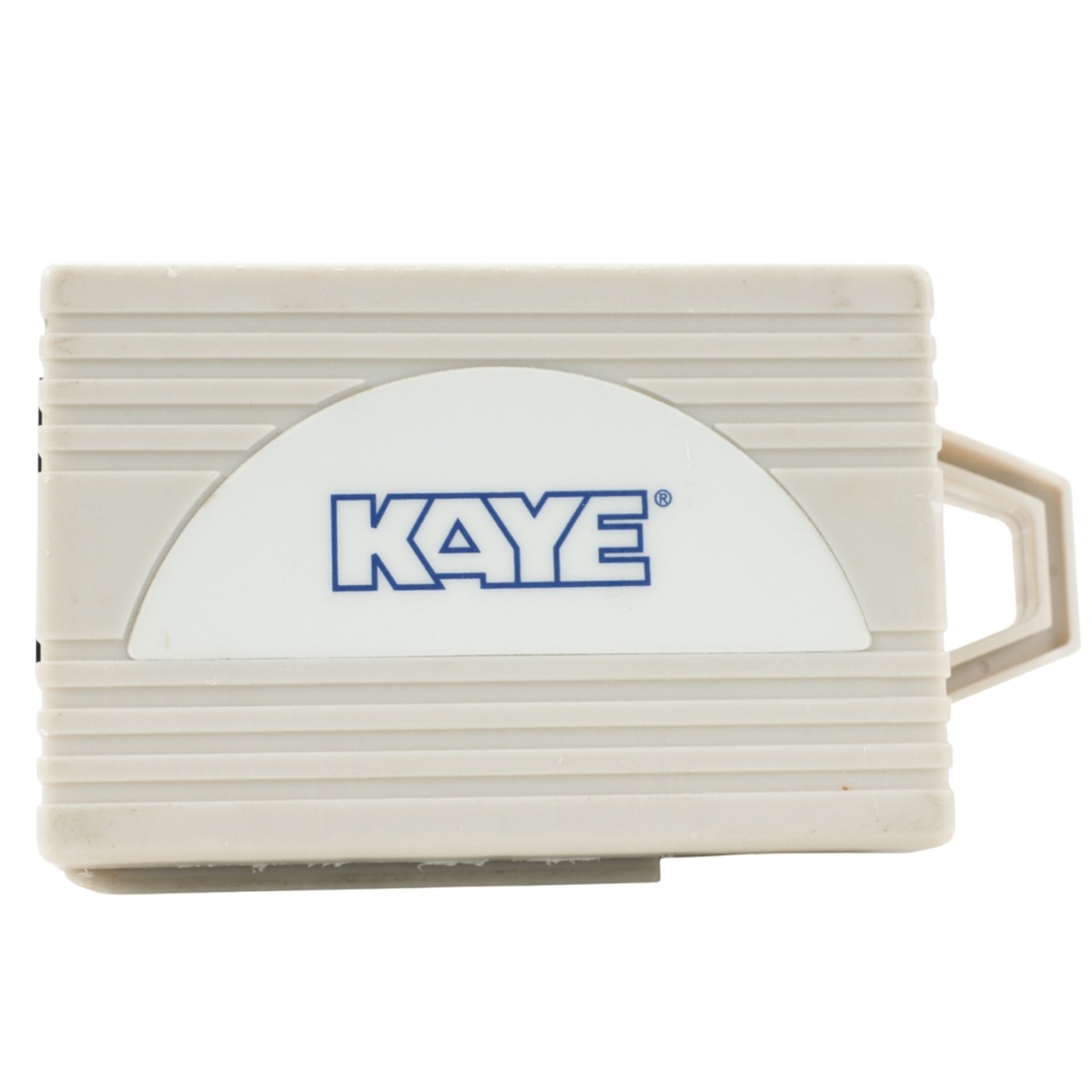

Kaye X2025 Sensor Input Module for Validator 2000

The Kaye X2025 is a sensor input module designed for use with the Kaye Validator 2000 system. It provides the connection point for sensor data collection and supports mixed input types used in validation workflows. Its format suits environments where repeatable setup and accurate input handling are important.

- Connects up to 12 sensor inputs through a single SIM for organized data acquisition.
- Accepts mixed sensor wiring so thermocouple, voltage, and current signals can be brought into one module.
- Stores calibration offsets and identification data in onboard memory to retain module-specific setup information.
- Uses an internal reference RTD to support cold-junction compensation for thermocouple measurement accuracy.

- Provides 12 input channels per module.
- Supports thermocouple inputs in Type T, J, and K configurations.
- Supports voltage inputs from -6 mV to 10 V.
- Supports current inputs including 0-20 mA and 4-20 mA for transducer-based measurement.
- Allows up to three SIMs on one Validator 2000 system for as many as 36 total inputs.

- Suited for pharmaceutical and biotech validation workflows.
- Supports connection of temperature, pressure, and humidity-related sensor inputs.
- Fits recurring validation studies where prewired module handling can streamline setup.
