Merytronic Ariadna CI MV & LV Cable Identifier with Toroidal Clamp

SKU: CP103930
Model: CI MV/LV
Product Condition: Certified Pre-owned
$4,699.95

Merytronic Ariadna CI cable identifier supports de-energized, live MV, and live LV cable identification with direct connection and toroidal clamp induction signal injection.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Merytronic Gorian Underground Detection & Locating
Product Description

Ariadna CI Cable Identification Before MV and LV Cable Work

Before cutting, joining, or manipulating MV and LV cables, the Merytronic Ariadna CI supports clear cable identification across energized and de-energized workflows. The Merytronic Ariadna CI is an MV and LV cable identifier for de-energized cables, live MV cables, and live LV cables among multiple conductors. Ariadna CI supports cable identification in trenches, manholes, panels, and aerial-to-underground conversion points.

Current Pulse and Frequency Signal Identification

  • Live MV mode uses 160/80 A peak current pulses.
  • Live LV mode traces pulses toward the feeding transformer.
  • De-energized mode uses 10 W polarized frequency injection.
  • CI-RX detection reads signal amplitude and polarity.

Cable Identification Functions and Ranges

  • Identifies de-energized, live MV, and live LV cables.
  • Supports single-phase and three-phase cables.
  • Supports direct and induction signal injection.
  • Supports cable length greater than 50 km by direct connection.
  • Operates over MV/LV networks up to 480 Vac phase-to-phase.

Included Toroidal Clamp for Induction Signal Injection

  • Adds induction-based signal injection capability.
  • Supports clamp-based setup where direct connection is not preferred.
  • Extends Ariadna CI workflow flexibility for supported cable identification.

Electrical Maintenance and Utility Cable Workflows

  • Supports cable identification before manipulation.
  • Works across accessible MV and LV cable points.
  • Applies to trenches, manholes, panels, and aerial/underground conversions.
Specifications
Specifications
MPN Ariadna CI
Product Condition Certified Pre-owned
Shipping Length (in.) 26
Shipping Width (In.) 20
Shipping Height (In.) 14
Item Returns This item can be returned
Brand Merytronic
Model Ariadna CI
Instrument Type MV and LV Cable Identifier
System Components Ariadna CI-TX Transmitter; Ariadna CI-RX Receiver
Supported Cable States De-energized cables; live MV cables; live LV cables
Supported Cable Types Single-phase and three-phase cables
Signal Injection Methods Direct connection; induction connection
Active Signal Analysis Amplitude and polarity
Maximum Cable Length >50 km by direct connection
Ariadna CI-TX Transmitter
Size 315 x 255 x 150 mm
Weight 3 kg
Protection Degree IP65
Display Monochrome 160 x 100
Rechargeable Battery 8.4 V, 6.6 Ah Li-ion
Battery Charger Input 100–250 Vac, 50/60 Hz
Battery Charger Output 12 V DC, 2 A
Car Lighter Charger Yes
Fuse at End of Mains Leads 6.3 x 32 mm, 10 A, 500 V, 50 kA, Type F
Operating Temperature -10 °C to 55 °C
Ariadna CI-RX Receiver
Size 120 x 220 x 65 mm
Weight 0.75 kg
Protection Degree IP54
Display Colour TFT 240 x 400
Batteries 4 x 1.5 V AA
Internal Speaker Yes, for sound alert
Operating Temperature -10 °C to 55 °C
Energized Cable Identification
Signal Type Current pulses
Injected Signal Amplitude 160/80 A peak
Maximum Network Voltage 480 Vac phase-to-phase; 300 Vac phase-to-neutral
Operation Time >24 h at level 2
Passive Current Measurement 50/60 Hz RMS
Maximum Network Current 1800 A RMS, 50/60 Hz
Active Signal Analysis Amplitude and polarity
De-Energized Cable Identification
Signal Type Current frequency
Active Signal Power 10 W
Operation Time >24 h at level 2
Maximum Cable Length >50 km
Maximum Loop Resistance 1000 Ω
Active Signal Analysis Amplitude and polarity
Compliance Standards
Electromagnetic Compatibility EN 61000-6-3; EN 61000-6-2
Electrical Safety EN 61010-1 CAT IV 300V; Class II protection against electric shock
What's in the box?

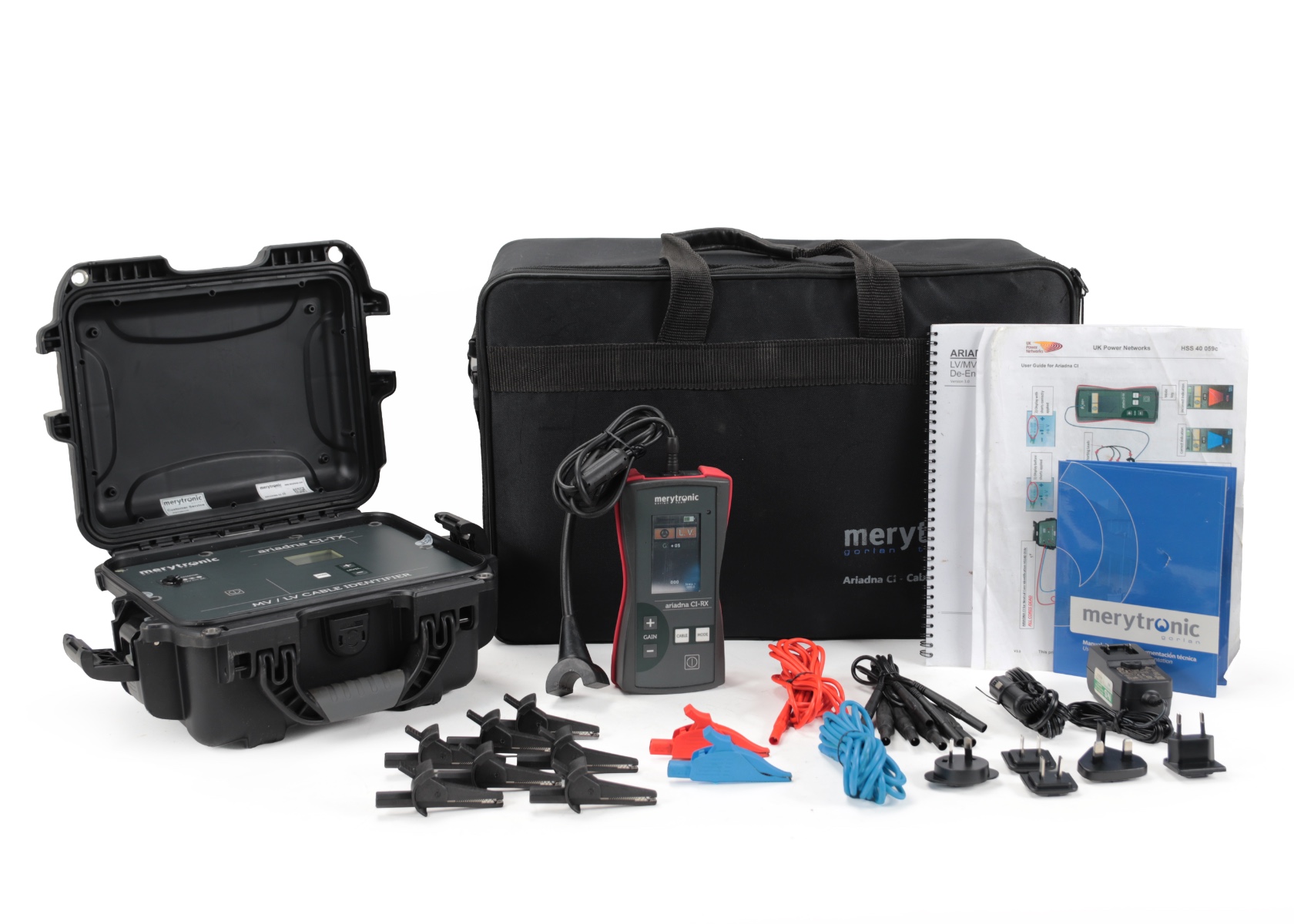

  • 1 x Merytronic Ariadna CI-TX Transmitter in hard case
  • 1 x Merytronic Ariadna CI-RX Receiver
  • 1 x Toroidal clamp
  • 1 x Red direct connection lead
  • 1 x Blue direct connection lead
  • 1 x Red alligator clip
  • 1 x Blue alligator clip
  • 4 x Sets of fused shorting leads
  • 7 x Black 10A alligator clips
  • 1 x Powercord with interchangeable heads
  • 1 x Car Charger
  • 1 x Merytronic USB drive
  • 1 x Ariadna CI User Manual
  • 1 x Ariadna CI User Guide
  • 1 x Soft carrying pouch
