PDQ 6200R-01 Rim Exit Device, Panic Rated, 36", Reversible

SKU: N102285
Model: 6200R-01
Product Condition: New
$399.00

PDQ 6200R-01 wide stile rim exit device for 36" doors in US32D finish. Panic rated, reversible, and built for commercial duty applications.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
PDQ Fastening Tools and Accessories Construction
Product Description

Rim egress control for commercial door openings

The need is direct egress at the door edge in commercial openings. The method is a surface-mounted rim exit device that releases the latch from the push pad side and supports panic hardware use.

PDQ 6200R-01 is a 6200 series rim exit device configured for a 36" door. It is a non-handed design in US32D finish and is identified as panic rated.

Rim latch construction

- Rim application with surface-mounted body
- Stainless steel touch pad
- Extruded aluminum rail
- Cadmium-plated steel chassis
- Stainless steel deadlocking latch bolt with 3/4" throw

Door fit and operation

The device is supplied for 3 ft doors within the 6200 series rim configuration. The series brochure states the device and trim are non-handed, allowing left-hand or right-hand door installation without handing change.

Commercial opening use

- Panic hardware applications
- Wide stile door preparation
- 1-3/4" door thickness

Specifications
Specifications
MPN 6200R-01
Product Condition New
Shipping Length (in.) 40
Shipping Width (In.) 8
Shipping Height (In.) 6
Item Returns This item can be returned
BrandPDQ
Model6200R-01
Series6200 Series
Product TypeRim Exit Device
ApplicationRim
Door Width36"
HandingNon-handed / Reversible
RatingPanic Rated
GradeANSI/BHMA A156.3 Grade 1
ListingsUL/ULC listed for Panic
FinishUS32D
Door Thickness1-3/4"
Minimum Stile Width4-1/4"
ChassisCadmium-plated steel
RailExtruded aluminum
Touch PadStainless steel
Latch BoltStainless steel deadlocking Pullman-style
Latch Throw3/4"
Projection3-1/8" standard
FastenersSex nuts and bolts standard at series level

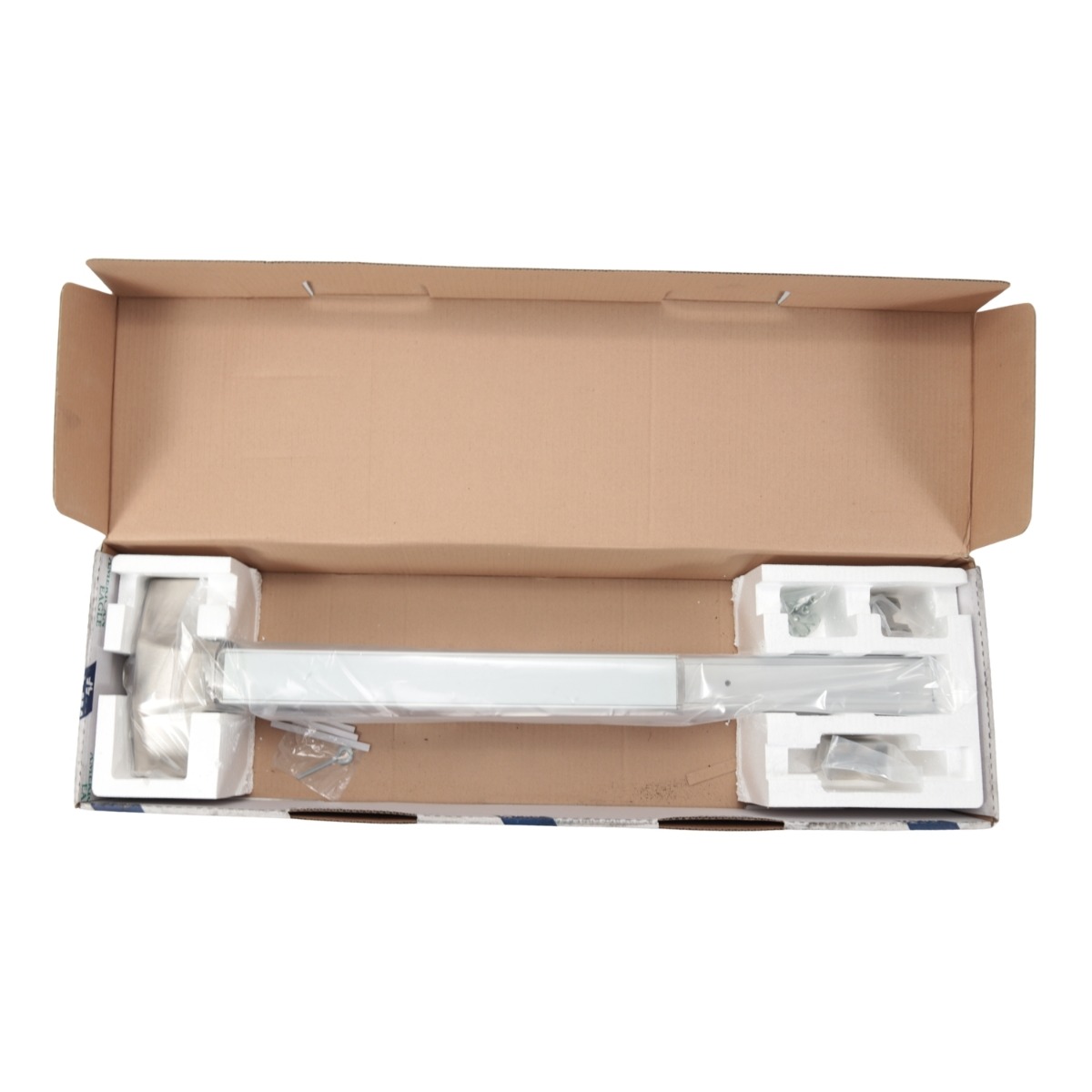

What's in the box?
  • 1 x PDQ 6200R-01 rim exit device
