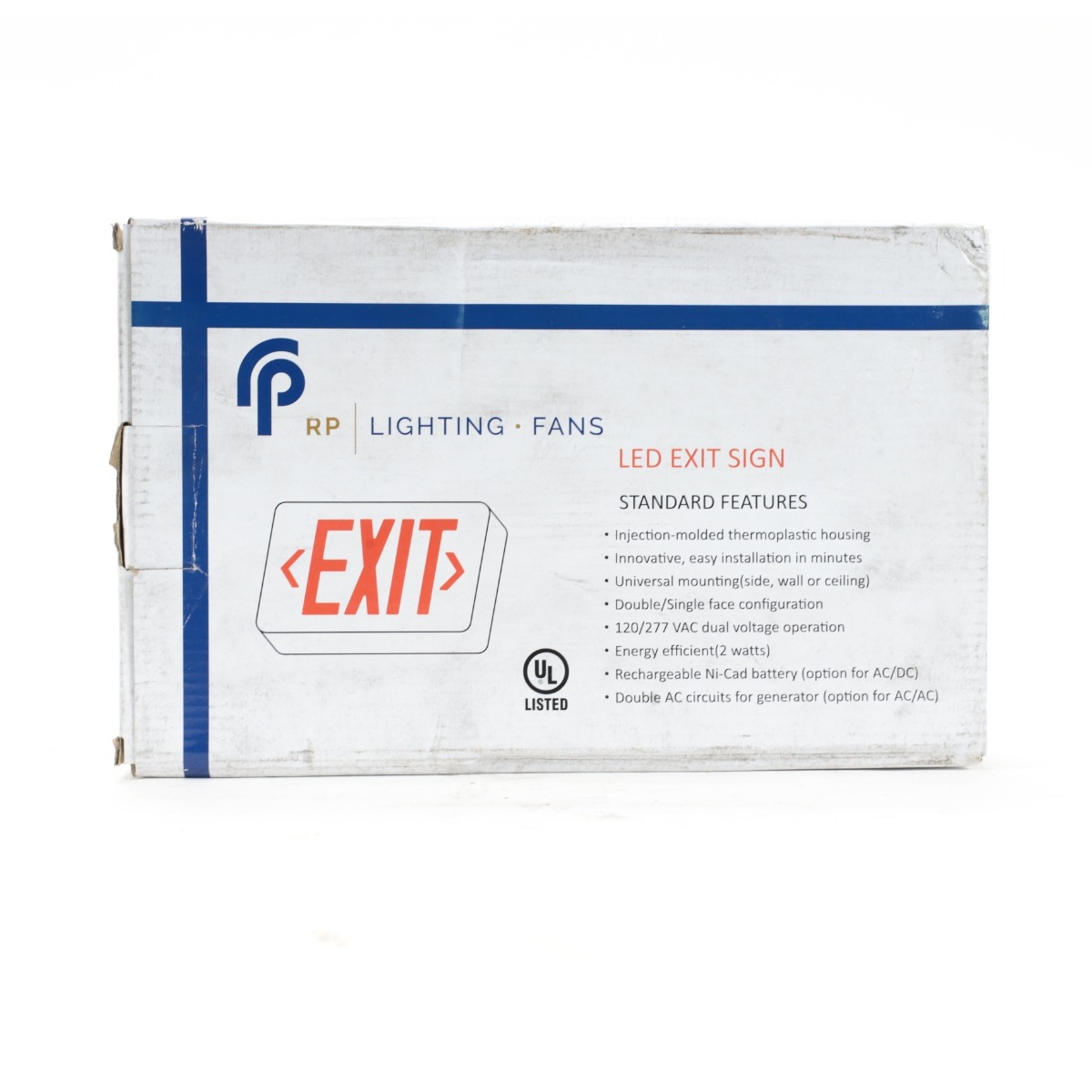

RP Lighting + Fans RXL5RW LED Exit Sign

The RP Lighting + Fans RXL5RW is an LED standard exit sign configured in white with red lettering. It provides illuminated exit marking during normal operation and automatically switches to internal battery backup during utility power failure. The design supports wall or top installation in indoor damp-location settings.

- Internal solid-state transfer switching connects the battery to the LED lamps when normal utility power fails, providing illuminated egress marking.
- Onboard solid-state recharging restores battery capacity after utility power returns, with full recharge completed within 24 hours.
- A self-contained thermoplastic housing integrates the sign body and emergency lighting function into a single exit marking assembly.
- Universal snap-in and out chevron design supports directional legend changes to match code-compliant exit path layouts.

- 120/277V input supports standard dual-voltage building power systems.
- Nickel-cadmium rechargeable battery provides 90 minutes of illumination during power interruption.
- Power consumption is less than 2 watts for red letters.
- Operating temperature range is 10°C to 40°C (50°F to 104°F).
- Housing dimensions measure 11-3/4" W x 1-3/4" D x 7-1/4" H, with wall or top mounting canopies included.
