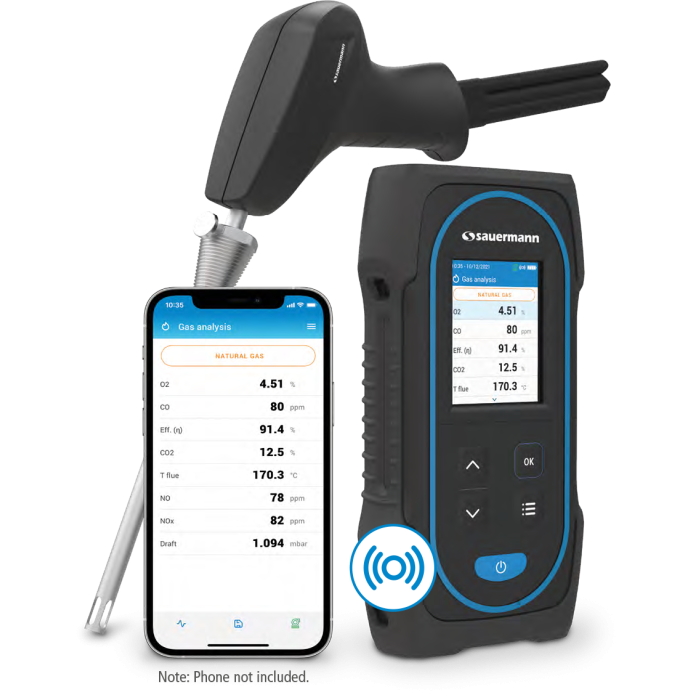

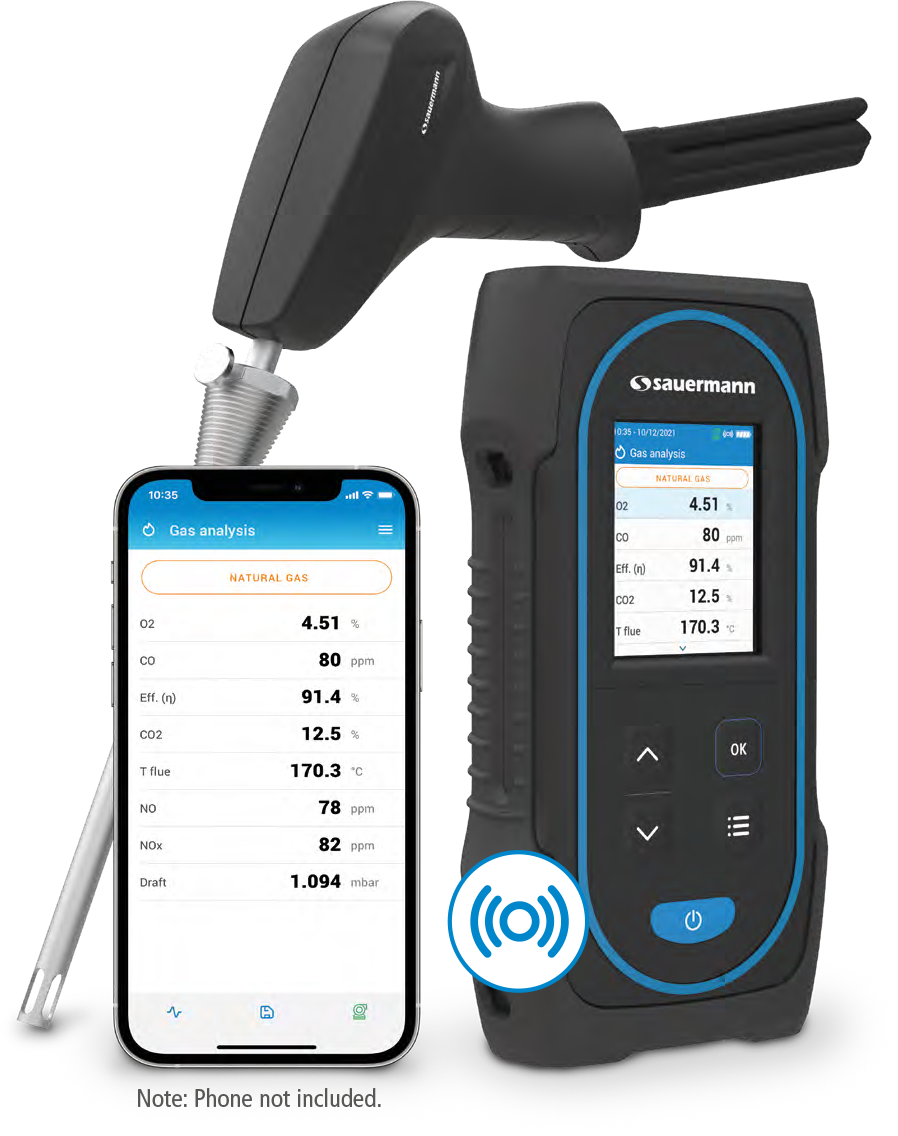

Sauermann Si-CA 030 KIT 2BH Combustion Gas Analyzer Kit with O2/CO Sensors

The Sauermann Si-CA 030 KIT 2BH is a combustion gas analyzer kit configured with O2 and CO gas sensors. It measures combustion gases, pressure, draft, and temperature while calculating combustion values such as CO2, excess air, and combustion efficiency. The analyzer supports emissions monitoring for boiler, engine, and combustion applications.

- Electrochemical O2 and CO sensors measure sampled combustion gas to support direct emissions readings.
- A 300 mm probe with 3 m dual hose draws flue gas from the test point for analyzer measurement.
- Draft and differential pressure measurement captures pressure behavior during combustion testing.
- Temperature inputs support flue, air, and differential temperature measurement during combustion analysis.
- Automatic pump cut-off responds to high CO levels to protect the measurement system.

- O2 electrochemical measurement range: 0 to 25%.
- CO electrochemical measurement range: 0 to 8000 ppm.
- Calculated CO2 measurement range: 0 to 99.9%.
- Pressure and draft measurement range: -200 to 200 mbar.
- Display resolution: 320 x 240 px color screen.

- Emissions monitoring for boiler combustion systems.
- Emissions monitoring for engine combustion applications.
- Combustion analysis where interchangeable gas sensors and calculated values are required.

- O2 and CO sensor configuration expands the Si-CA 030 measurement scope for oxygen and carbon monoxide readings.
- App connectivity supports data management, remote display/control, automatic logging, and report creation.
- Included probe, hose, and hard carrying case support field combustion analysis workflows.
