Schroff 20800-199 Measuring Adapter Card

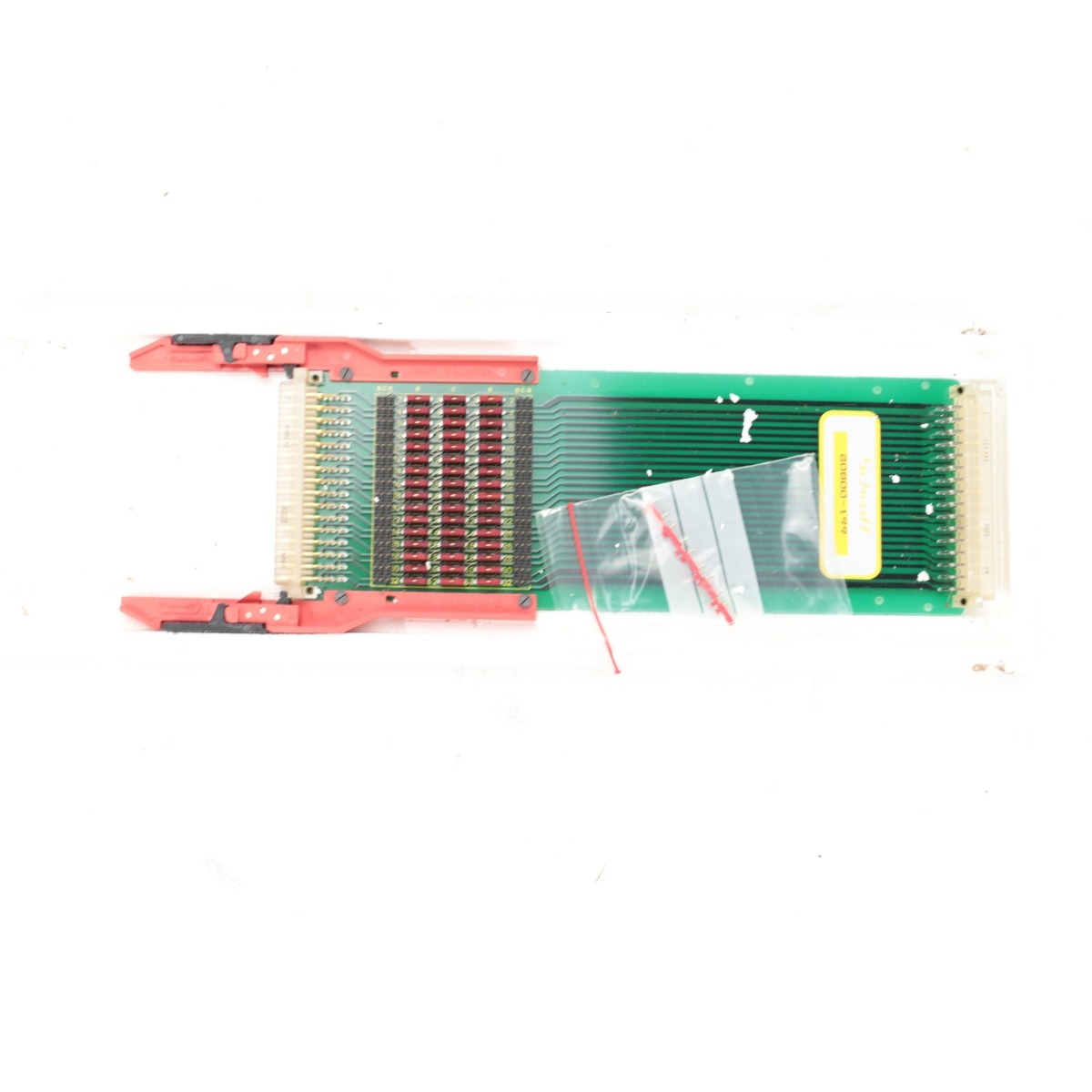

The Schroff 20800-199 is a measuring adapter card designed for integration within Eurocard-based test and interface environments. It provides configurable signal routing through a structured connection layout and onboard switching matrix. This configuration supports structured measurement workflows in controlled electronic systems.

- Multi-channel traces route signals between dual edge connectors
- Integrated DIP switch array enables manual channel selection
- Signal paths are configured through physical switch positioning
- Direct PCB trace routing maintains defined electrical pathways

- Dual edge connector interface for system integration
- Multi-position DIP switch matrix for channel control
- Structured PCB trace layout for organized signal distribution
- Eurocard-compatible form factor for rack-based systems

- Signal routing within test and measurement setups
- Interface adaptation in modular electronic systems
- Controlled configuration of multi-channel connections
