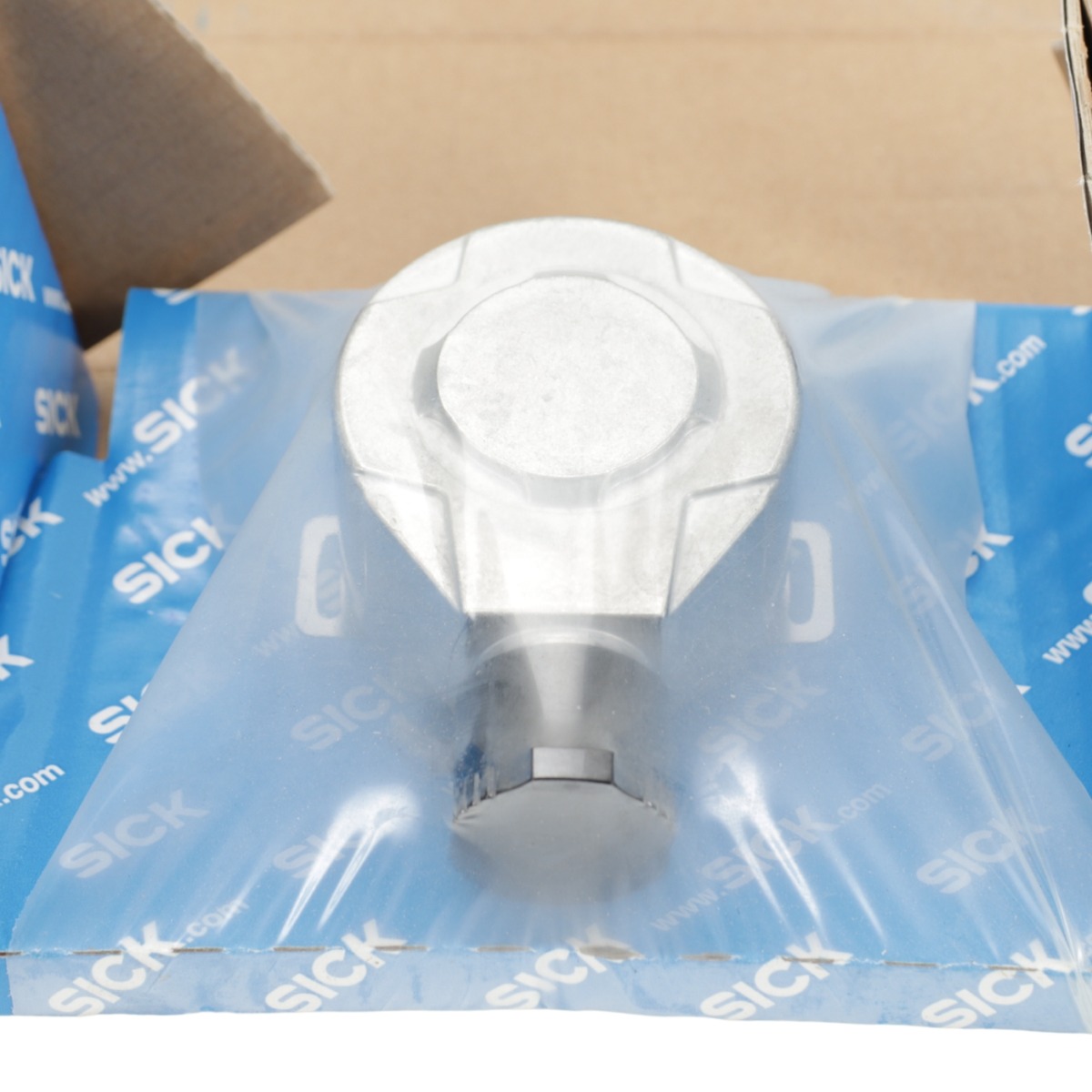

Sick DFS60B-BDPA10000 Incremental Encoder, 10000 PPR

SKU: NO102298
Model: DFS60B-BDPA10000
Product Condition: New - Open Box
$499.00

Sick DFS60B-BDPA10000 incremental encoder with 10,000 PPR resolution, 10 mm blind hollow shaft, programmable TTL/HTL output, and radial M23 12-pin male connector for industrial motion control.

Read more
Estimated delivery: 5 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Browse by category:
Sick Pressure Transmitters Sensor and Switches Automation
Product Description

Incremental feedback for industrial motion control

The Sick DFS60B-BDPA10000 is a high-resolution programmable incremental encoder for industrial motion control applications. It provides 10,000 pulses per revolution and is built for use in harsh environments where reliable position and speed feedback is required.

High-resolution signal output

- 10,000 pulses per revolution
- Programmable incremental encoder
- TTL/HTL signal output
- Output frequency up to 600 kHz
- Initialization time approximately 30–32 ms

Mechanical and electrical interface

The encoder uses a 10 mm blind hollow shaft and a radial M23 12-pin male connector. It operates on a 4.5 V to 32 V supply range and supports programmable output and zero pulse settings.

Industrial operating conditions

- Maximum operating speed: 6,000 rpm
- Protection rating: IP65 shaft side, IP67 housing side
- Operating temperature: -40°C to +100°C stationary
- Aluminum housing and flange with stainless steel shaft

Specifications
Specifications
MPN 1036767
Product Condition New - Open Box
Shipping Length (in.) 8
Shipping Width (In.) 8
Shipping Height (In.) 6
Item Returns This item can be returned
BrandSick
MPN1036767
ModelDFS60B-BDPA10000
Product TypeIncremental Encoder
Resolution10,000 pulses per revolution (PPR)
Mechanical InterfaceBlind hollow shaft, 10 mm diameter
Electrical InterfaceProgrammable TTL/HTL
Supply Voltage4.5 V to 32 V DC
ConnectionRadial M23 12-pin male connector
Maximum Operating Speed6,000 rpm
Output FrequencyUp to 600 kHz
Initialization TimeApproximately 30–32 ms
Protection RatingIP65 (shaft side), IP67 (housing side)
Operating Temperature-40°C to +100°C (stationary)
Housing MaterialAluminum housing and flange
Shaft MaterialStainless steel
Programmable ResolutionUp to 65,536 pulses (16-bit)
Configurable Zero Pulse90°, 180°, or 270°
Remote FunctionRemote 0-SET
Protection FeaturesReverse polarity and short-circuit protection
MTTFd300 years
Startup Torque0.5 Ncm
Operating Torque0.3 Ncm at +20°C
Shock Resistance70 g
Vibration Resistance30 g
What's in the box?
  • Sick 1036767 DFS60B-BDPA10000 Incremental Encoder
Technical Resources
Related Posts

No Related Posts

Reviews
Write Your Own Review
You're reviewing: Sick DFS60B-BDPA10000 Incremental Encoder 10000 PPR
loader
Loading...

You submitted your review for moderation.

Trustpilot

Related Products

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Allen Bradley 1326AB MOD M6 C1 Encoder Mounting Adapter Product View
New - Open Box
Allen-Bradley 1326AB-MOD-M6-C1 Encoder Feedback Mounting Adapter Kit for 1326AB Motors, M6 Shaft
$399.00
Model : 1326AB-MOD-M6-C1
Product Condition : New - Open Box
0 Reviews

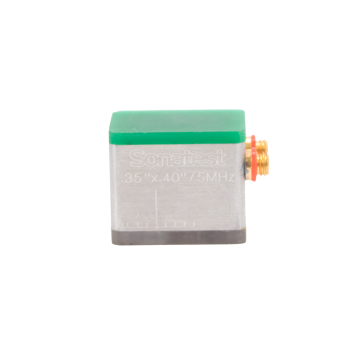

Certified pre-owned Sonatest Q-Scan-1 5 MHz 0.35 x 0.410 inch ultrasonic probe with right/left encoder configuration
