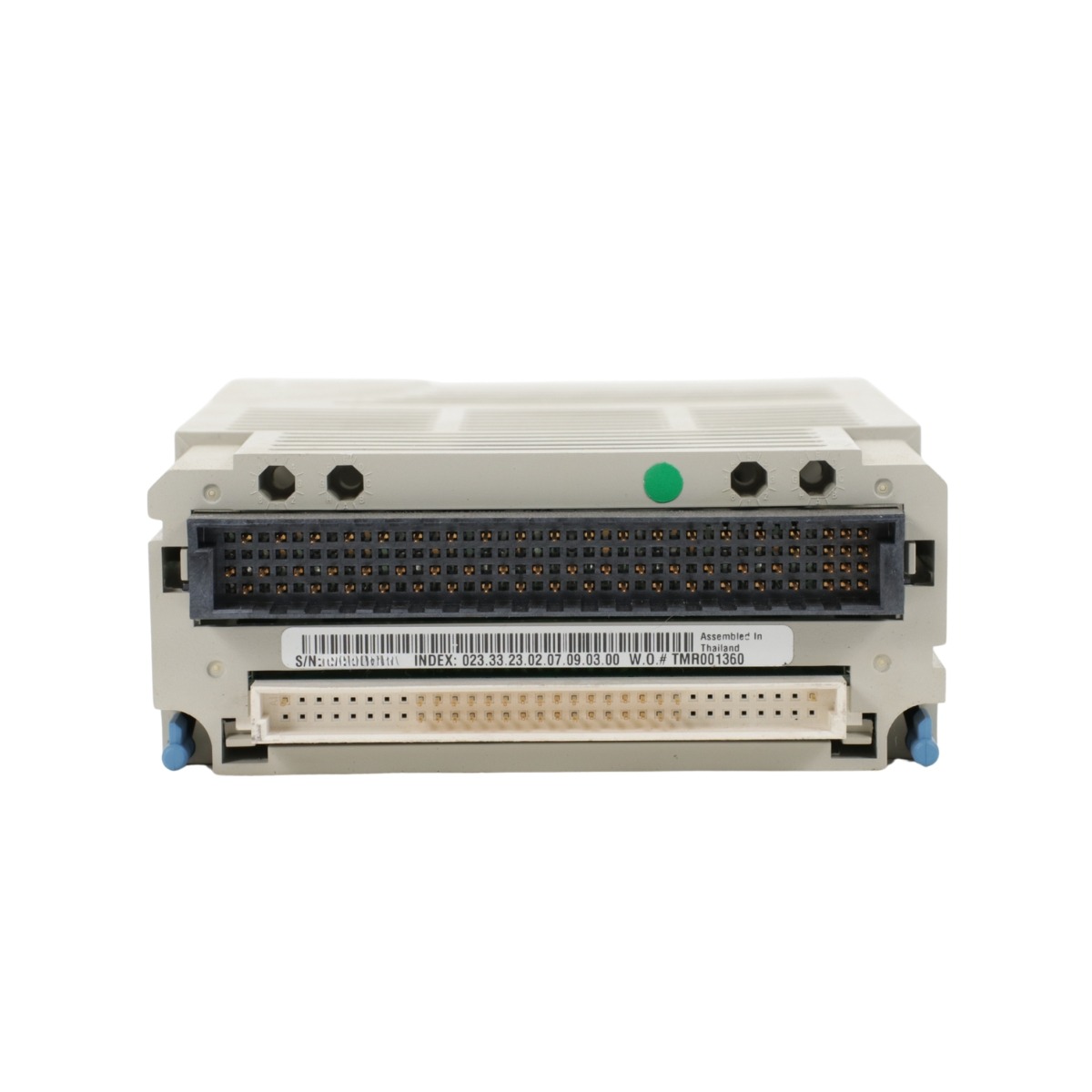

Westinghouse 5X00070G33 Analog Input Module for Ovation DCS

The Westinghouse 5X00070G33 is an analog input module designed for integration within the Ovation Distributed Control System. It performs multi-channel voltage signal acquisition and conversion for monitoring and control processes. It is used in industrial environments requiring stable and accurate data collection.

- Voltage input signals are received across multiple channels and conditioned for processing
- Signals are converted using a 14-bit analog-to-digital conversion process for digital interpretation
- Individual channel isolation prevents signal interference and protects system integrity
- Sampling synchronized to power frequency reduces noise and improves measurement stability

- Supports ±5V and ±10V voltage input ranges
- Provides 8 isolated analog input channels
- 14-bit resolution enables precise signal measurement
- Sampling rates configurable between 50 Hz and 60 Hz operation
- Operates on 24V DC system power with low power consumption

- Power generation system signal monitoring
- Water treatment process control systems
- Distributed control system data acquisition workflows
