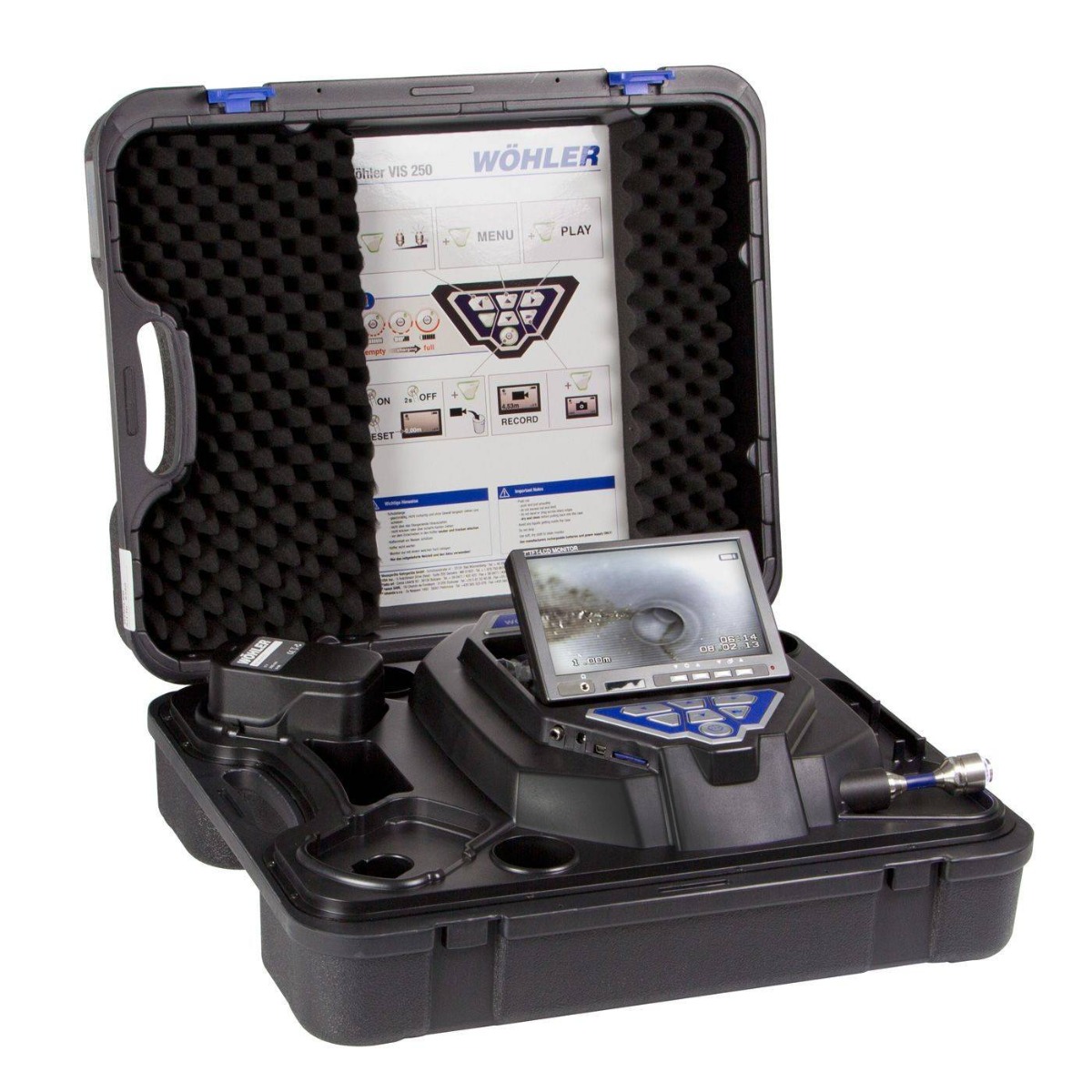

Wöhler VIS 250 Inspection Camera with Recording

The Wöhler VIS 250 Inspection Camera is a pipe inspection camera built for visual checks inside drain lines, ventilation runs, hollow spaces, and flue gas lines. It captures clear live images through a 1 inch camera head and presents them on a 7 inch TFT color monitor with electronic distance counting. This configuration supports service work where fast internal visibility and on-site documentation are essential.

- A 1 inch waterproof camera head moves through pipes from 1.5 inches and larger, enabling inspection beyond direct line of sight.
- The light-sensitive camera head feeds live images to the color monitor, making internal pipe conditions easier to evaluate during travel.
- Electronic distance counting displays insertion depth on screen, helping track the camera head position along the inspection path.
- RCA video output supports documentation during inspection work where image review or external capture is needed.

- The 7 inch TFT color monitor in 16:9 format presents inspection images at 768 x 576 resolution for clear on-site viewing.
- A 145 degree viewing angle supports broad visual coverage inside the pipe or duct.
- The 100 foot push rod with 0.26 inch diameter provides extended reach through multiple bends and confined routing.
- IP68 camera head protection supports work in wet line environments.
- Included 4 GB SD storage and Mini-USB data transfer support image and video documentation for inspection records.

- Inspection of waste water pipes and ventilation lines from 1.5 inches and larger
- Inspection of hollow spaces such as front-wall installations
- Inspection of flue gas lines up to approximately 6 inches
