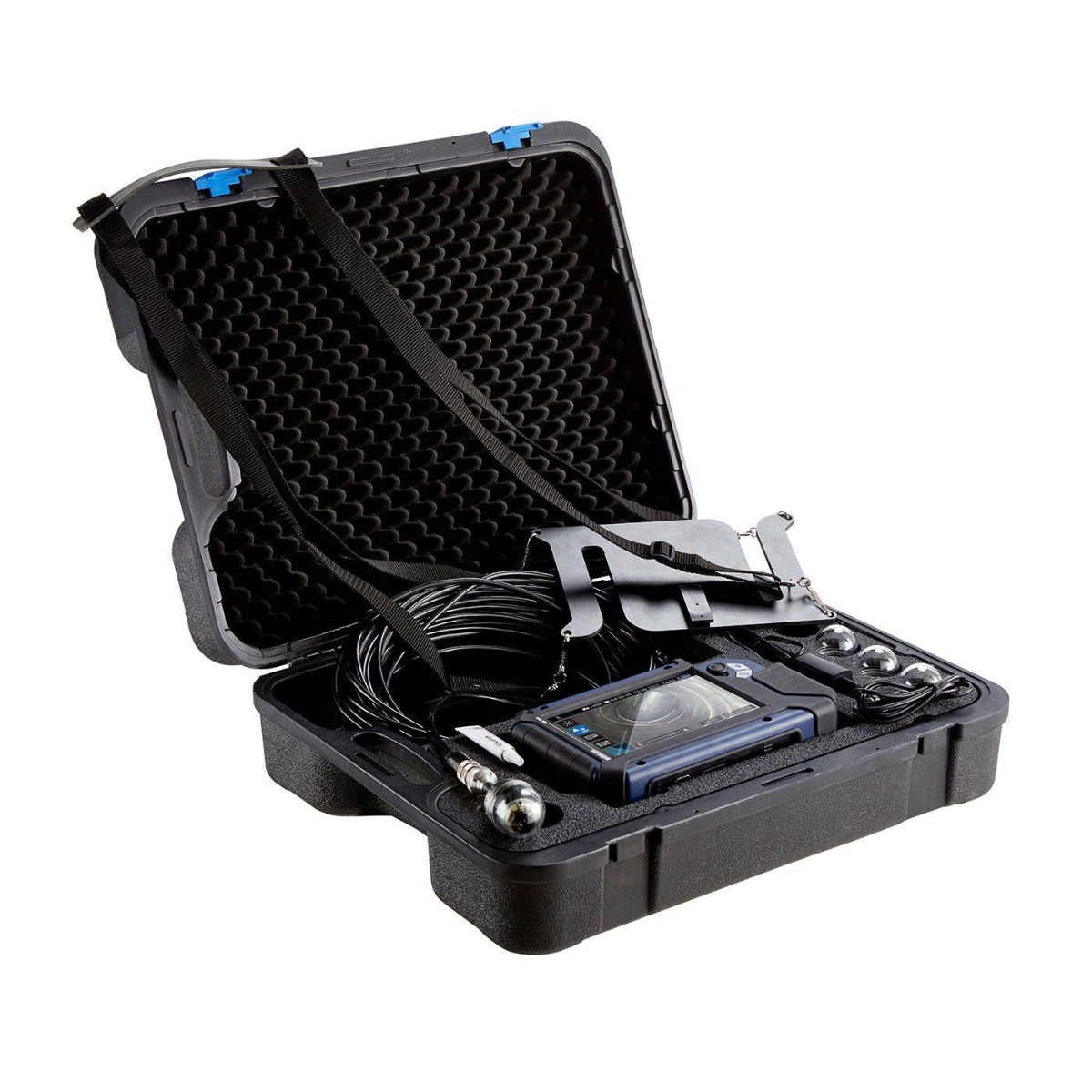

Wohler VIS 700 HD Inspection Camera (Chimney Version)

The Wöhler VIS 700 (7459) is purpose-built as the chimney inspection camera for modern professional chimney sweeps and inspection technicians. Designed specifically for vertical flues and shafts, this system combines a flexible camera cable with a motorized Ø 1.5″ pan-and-tilt HD camera head to deliver complete visual coverage of the chimney cross-section from top to bottom.

With self-leveling, motorized focus, and high-resolution HD imaging, the VIS 700 Cable Camera allows even fine cracks, deposits, and structural defects to be identified clearly and reliably. Its cable-based design makes it especially well-suited for chimney inspections from the roof or cleanout opening, where controlled vertical movement and precise camera positioning are critical.

Inspection System Features & Capabilities

• Dedicated chimney inspection camera with HD video quality

• Ø 1.5″ motorized pan-and-tilt HD camera head (360° rotation, 180° tilt)

• Self-leveling camera head for consistently horizontal images

• Motorized focus for precise inspection of cracks, joints, and deposits

• Suitable for chimneys, exhaust systems, and air ducts from Ø 1.5″

• Suitable for wet environments (e.g., condensate-affected flues, downpipes) from Ø 2.8″

• Inspection of house connections, vertical shafts, and smokestacks up to 10.2″ × 10.2″

• 66′ camera cable with metric marking for controlled vertical inspections

• 7″ HD touchscreen monitor with joystick control

• Integrated locator transmitter for pinpoint localization with the Wöhler L 200 Locator

• Photo, video, and voice recording with internal memory and USB expansion

Typical Applications

• Professional chimney and flue inspection

• Exhaust system inspection from roof or boiler room

• Inspection of house connections and vertical shafts

• Assessment of soot deposits, cracks, and structural damage

• Commercial and industrial chimney inspections
