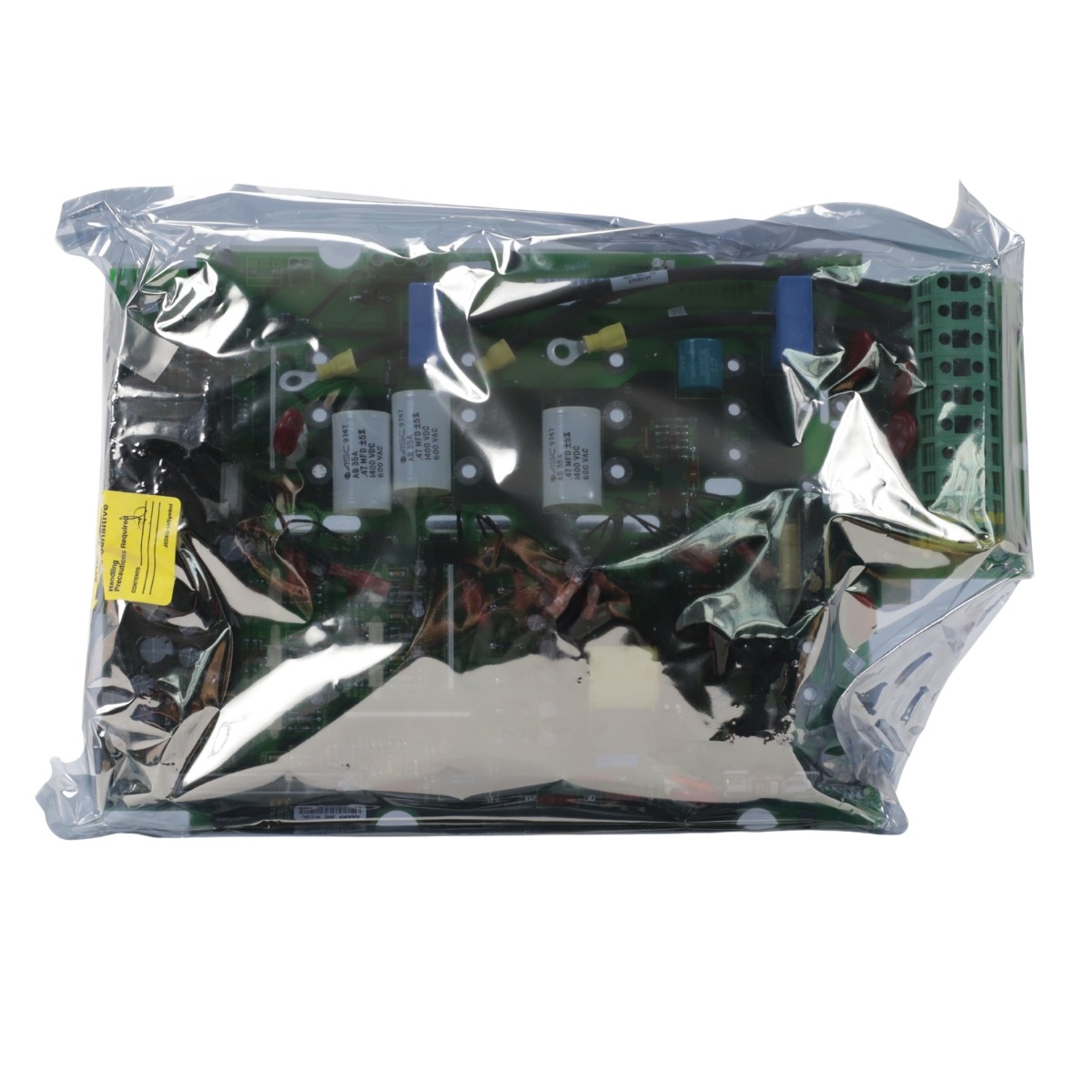

Allen-Bradley 1336-CONV-SP5A Converter / Power Module Upgrade Kit for 1336 Series 25HP 460V Drives

SKU: NO100857
Model: 1336-CONV-SP5A
Product Condition: New - Open Box
$5,999.95

Allen-Bradley 1336-CONV-SP5A converter power module kit for upgrading 1336 series C-frame adjustable frequency drives to Series C operation at 25 HP and 460V AC.

Read more
Estimated delivery: 3 days
One year warranty
Free return within 30 days of purchase.
Contact
Have a question ? Ask an expert
Live chat (833) 322-7865 Email
Product Description

Allen-Bradley 1336-CONV-SP5A Series C Converter Upgrade Kit for 1336 Drives

The Allen-Bradley 1336-CONV-SP5A is a converter and power module spare part kit designed to upgrade Bulletin 1336 adjustable frequency AC drives to Series C architecture. This kit supports C-frame drives rated at 25 horsepower and operating at up to 460 volts AC.

Series C Conversion Hardware for 1336 Drives

  • Converter and power module upgrade kit for Bulletin 1336 drives
  • Includes gate drive PCB, inductor, and pre-charged SCR
  • Designed for 25 HP, 460V AC adjustable frequency drives
  • Supports conversion from Series A or Series B to Series C

Designed for Service and Drive Modernization

The 1336-CONV-SP5A replaces obsolete converter-related components used in earlier 1336 drive series. It is electrically compatible with C-frame drives and replaces the discontinued 1336-BDB-SP5A, allowing continued service of installed 1336 systems.

Compatible Applications

  • Allen-Bradley 1336 Force, Impact, Plus, and Plus II drives
  • C-frame adjustable frequency AC drives rated at 25 HP
  • Converter and power module replacement during drive servicing
Specifications
Specifications
MPN 1336-CONV-SP5A
Product Condition New - Open Box
Shipping Length (in.) 12
Shipping Width (In.) 12
Shipping Height (In.) 12
Item Returns This item can be returned
Brand Allen-Bradley
Manufacturer Allen-Bradley (Rockwell Automation)
Product Line Bulletin 1336 Adjustable Frequency Drives
Category Drives – Spare Parts / Conversion Kits
Part Number (MPN) 1336-CONV-SP5A
Product Type Converter / Power Module Upgrade Kit
Drive Series Compatibility Allen-Bradley 1336 Series Adjustable Frequency AC Drives
Compatible Drive Models 1336 Force, 1336 Impact, 1336 Plus, 1336 Plus II
Drive Frame Size C-Frame
Horsepower Rating 25 HP
Maximum Voltage Rating 460 Volts AC
Supported Drive Series Upgrade Series A to Series C, Series B to Series C
Replaces / Supersedes 1336-BDB-SP5A
Function Converter and power module replacement for obsolete components
Kit Components Gate drive printed circuit board (PCB), inductor, pre-charged SCR
Electrostatic Sensitivity ESD-sensitive components; grounding precautions required
Installation Requirement Drive power must be locked out prior to servicing
Product Status Spare part for discontinued Bulletin 1336 drive series
Weight 32.00 lbs
What's in the box?
  • 1 x Allen-Bradley 1336-CONV-SP5A
